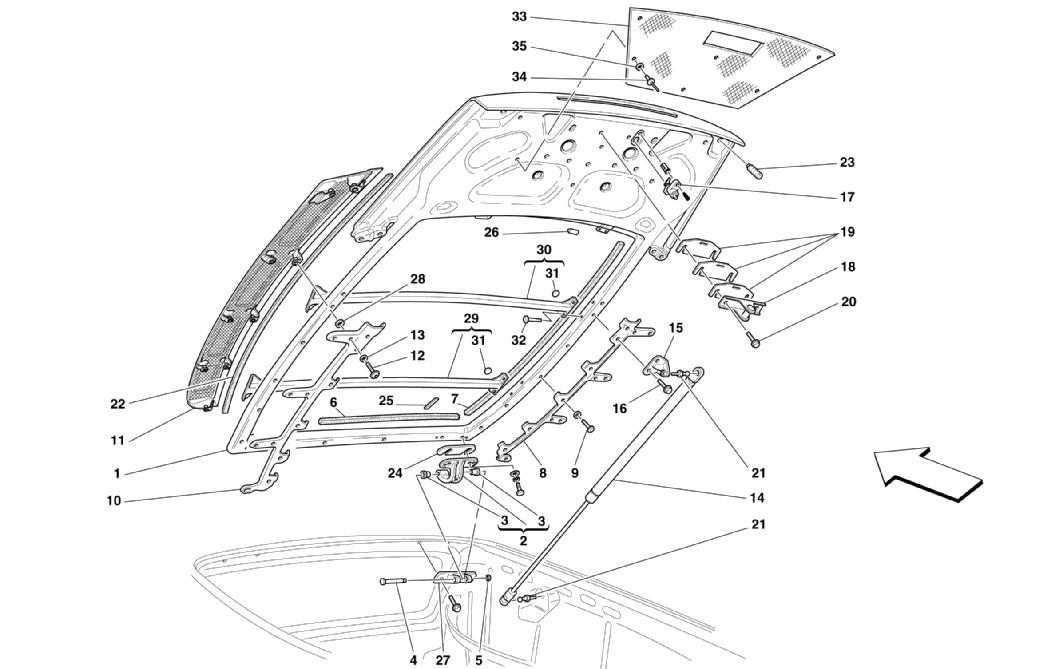

ENGINE BONNET

Go to Split View

ENGINE BONNET

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67361311 *Qty: 1 REAR HOOD BONNET Call
Location: 2 Prev | Next Part: 64877500 *Qty: 1 R.H. MOBILE HINGE $197.49
Location: 2 Prev | Next Part: 64877600 *Qty: 1 L.H. MOBILE HINGE $197.49
Location: 3 Prev | Next Part: 62825300 *Qty: 4 HINGE BUSHING $35.18
Location: 4 Prev | Next Part: 64807100 *Qty: 2 PIN $10.84
Location: 5 Prev | Next Part: 11087974 *Qty: 2 FLEXIBLE RING $0.90
Location: 6 Prev | Next Part: 67774400 *Qty: 1 UPPER GASKET $26.57
Location: 7 Prev | Next Part: 67774300 *Qty: 2 LATERAL GASKET $30.30
Location: 8 Prev | Next Part: 67416700 *Qty: 1 R.H. PLATE Call
Location: 9 Prev | Next Part: 62940900 *Qty: 8 SCREW $1.85
Location: 10 Prev | Next Part: 67416800 *Qty: 1 L.H. PLATE Call
Location: 11 Prev | Next Part: 67670500 *Qty: 1 COMPLETE R.H. GRILL SUPPORT $2,970.43
Location: 11 Prev | Next Part: 67670600 *Qty: 1 COMPLETE L.H. GRILL SUPPORT $2,970.43
Location: 12 Prev | Next Part: 169815 *Qty: 18 SCREW $2.14
Location: 13 Prev | Next Part: 12638177 *Qty: 18 WASHER Superseded
Location: 14 Prev | Next Part: 65855000 *Qty: 2 GAS SPRING $37.36
Location: 15 Prev | Next Part: 65526300 *Qty: 2 BRACKET $44.74
Location: 16 Prev | Next Part: 16286124 *Qty: 4 SCREW $0.90
Location: 17 Prev | Next Part: 143331 *Qty: 1 ADDITIONAL STOP LIGHT MOBILE CONTACT $8.03
Location: 18 Prev | Next Part: 64867900 *Qty: 1 HOOD CLOSING STRIKER $139.83
Location: 19 Prev | Next Part: 65524800 *Qty: 4 ADJUSTING PLATE -Possible fitting $4.96
Location: 20 Prev | Next Part: 16286027 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 65939900 *Qty: 2 PIN $4.11
Location: 22 Prev | Next Part: 65979200 *Qty: 2 GASKET $25.51
Location: 23 Prev | Next Part: 62167600 *Qty: 2 SMALL BLOCK $5.53
Location: 24 Prev | Next Part: 66073100 *Qty: 6 THICKNESS $3.32
Location: 25 Prev | Next Part: 65714600 *Qty: 4 SPACER $2.24
Location: 26 Prev | Next Part: 63023300 *Qty: 18 SPACER $1.02
Location: 27 Prev | Next Part: 64806700 *Qty: 1 R.H. FIXED HINGE Call
Location: 27 Prev | Next Part: 64806800 *Qty: 1 L.H. FIXED HINGE Call
Location: 28 Prev | Next Part: 12644478 *Qty: 0 WASHER -Possible fitting $0.90
Location: 29 Prev | Next Part: 67426600 *Qty: 1 FRONT FRAME $1,229.79
Location: 30 Prev | Next Part: 67426700 *Qty: 1 REAR FRAME $1,229.79
Location: 31 Prev | Next Part: 67509400 *Qty: 6 RUBBER Call
Location: 32 Prev | Next Part: 62940900 *Qty: 8 SCREW $1.85
Location: 33 Prev | Next Part: 68153200 *Qty: 1 INSULATION $282.71
Location: 33 Prev | Next Part: 68032900 *Qty: 1 INSULATION -Not as spare part -Replaced by 68153200 Call
Location: 34 Prev | Next Part: 14641495 *Qty: 6 RIVET Call
Location: 35 Prev | Next Part: 12637824 *Qty: 6 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
