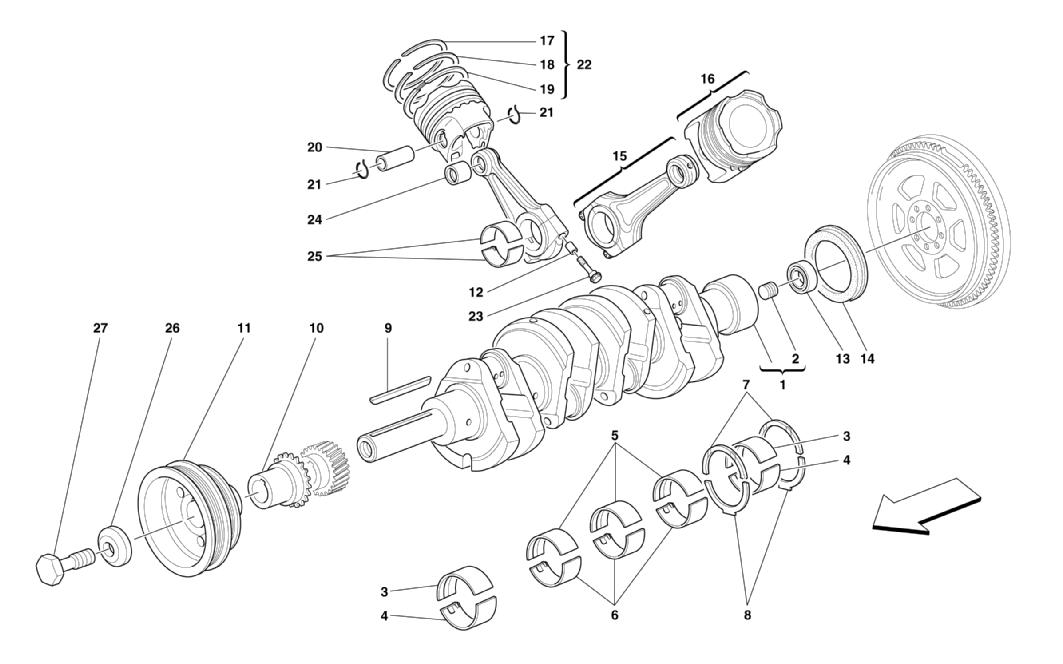

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 180695 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1st OVERSIZE mm. 0,254 $1,504.01
Location: - Prev | Next Part: 180694 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE $420.47
Location: - Prev | Next Part: 180696 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2nd OVERSIZE mm. 0,508 $2,480.35
Location: 1 Prev | Next Part: 178481 *Qty: 1 CRANKSHAFT $12,155.15
Location: 2 Prev | Next Part: 176396 *Qty: 1 THREADED PLUG $6.91
Location: 3 Prev | Next Part: 173559 *Qty: 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With th Call
Location: 3 Prev | Next Part: 173558 *Qty: 2 FRONT AND REAR UPPER HALF BEARING -Not as spare part -With the half-bearings complete series $20.64
Location: 3 Prev | Next Part: 173560 *Qty: 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With th Call
Location: 4 Prev | Next Part: 173554 *Qty: 2 FRONT AND REAR LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $30.85
Location: 4 Prev | Next Part: 173556 *Qty: 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With th Call
Location: 4 Prev | Next Part: 173555 *Qty: 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With th Call
Location: 5 Prev | Next Part: 173564 *Qty: 0 UPPER INTEMEDIATE HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Call
Location: 5 Prev | Next Part: 173563 *Qty: 0 UPPER INTERMEDIATE HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Call
Location: 5 Prev | Next Part: 173562 *Qty: 3 UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series $25.05
Location: 6 Prev | Next Part: 173568 *Qty: 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Call
Location: 6 Prev | Next Part: 173567 *Qty: 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Call
Location: 6 Prev | Next Part: 173566 *Qty: 3 INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $27.07
Location: 7 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 7 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Not as spare part -With the half-bearings complete series $18.52
Location: 7 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $18.52
Location: 9 Prev | Next Part: 151289 *Qty: 1 KEY $4.84
Location: 10 Prev | Next Part: 176643 *Qty: 1 OIL PUMP CONTROL GEAR $77.85
Location: 11 Prev | Next Part: 178738 *Qty: 1 DRIVING SHAFT PULLEY $245.48
Location: 12 Prev | Next Part: 177390 *Qty: 16 BUSHING $83.55
Location: 13 Prev | Next Part: 103877 *Qty: 1 BEARING $35.31
Location: 14 Prev | Next Part: 200323 *Qty: 1 SEAL RING $38.88
Location: 15 Prev | Next Part: 212652 *Qty: 8 COMPLETE CONNECTING ROD AND CAP $581.77
Location: 15 Prev | Next Part: 196976 *Qty: 8 COMPLETE CONNECTING ROD AND CAP -Not as spare part -Replaced by 212652 Call
Location: 16 Prev | Next Part: 200211 *Qty: 8 PISTON WITH RINGS Call
Location: 17 Prev | Next Part: 160813 *Qty: 8 AC SEAL RING (1st groove) -Not as spare part -With the pistons rings set Call
Location: 18 Prev | Next Part: 152991 *Qty: 8 AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set Call
Location: 19 Prev | Next Part: 132773 *Qty: 8 ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set Call
Location: 20 Prev | Next Part: 154717 *Qty: 8 PIN $45.07
Location: 21 Prev | Next Part: 166901 *Qty: 16 STOP RING $8.74
Location: 22 Prev | Next Part: 164026 *Qty: 8 PISTONS RINGS SET $252.25
Location: 23 Prev | Next Part: 177159 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $57.06
Location: 24 Prev | Next Part: 174701 *Qty: 8 BUSHING $16.27
Location: 25 Prev | Next Part: 193622 *Qty: 16 CONNECTING ROD HALF BEARING $60.60
Location: 25 Prev | Next Part: 173552 *Qty: 16 CONNECTING ROD HALF BEARING 2nd OVERSIZE mm. 0,508 $94.85
Location: 25 Prev | Next Part: 173551 *Qty: 16 CONNECTING ROD HALF BEARING 1st OVERSIZE mm. 0,254 $83.01
Location: 26 Prev | Next Part: 138792 *Qty: 1 WASHER $6.41
Location: 27 Prev | Next Part: 176583 *Qty: 1 SCREW $42.83

* Quantity shown indicates the number of pieces used in the diagram.
