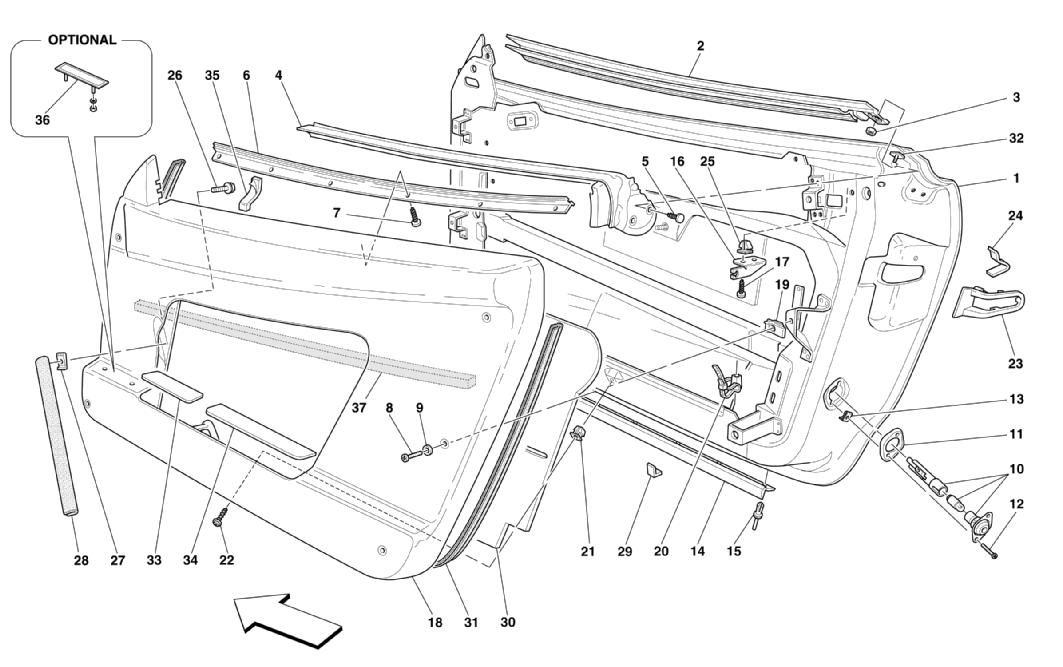

DOORS - FRAMEWORK AND COVERINGS

Go to Split View

DOORS - FRAMEWORK AND COVERINGS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 67660211 *Qty: 1 R.H. DOOR FRAME -Not for USA and CDN $10,109.56
Location: 1 Prev | Next Part: 67784111 *Qty: 1 R.H. DOOR FRAME -Valid for USA and CDN $3,780.05
Location: 1 Prev | Next Part: 67660311 *Qty: 1 L.H. DOOR FRAME -Not for USA and CDN $10,109.56
Location: 1 Prev | Next Part: 67784211 *Qty: 1 L.H. DOOR FRAME -Valid for USA and CDN $3,780.05
Location: 2 Prev | Next Part: 65164500 *Qty: 1 L.H. GASKET OUTER GLASS SCRAPER $247.19
Location: 2 Prev | Next Part: 65164400 *Qty: 1 R.H. GASKET OUTER GLASS SCRAPER $247.19
Location: 3 Prev | Next Part: 14042077 *Qty: 2 NUT $1.03
Location: 4 Prev | Next Part: 65544700 *Qty: 1 L.H. GASKET INNER GLASS SCRAPER -Valid for descending glass Call
Location: 4 Prev | Next Part: 67541200 *Qty: 1 R.H. GASKET INNER GLASS SCRAPER -Valid for fixing glass Call
Location: 4 Prev | Next Part: 65544600 *Qty: 1 R.H. GASKET INNER GLASS SCRAPER -Valid for descending glass $306.89
Location: 4 Prev | Next Part: 67541300 *Qty: 1 L.H. GASKET INNER GLASS SCRAPER -Valid for fixing glass Call
Location: 5 Prev | Next Part: 14591687 *Qty: 4 FIXING BUTTON $0.90
Location: 6 Prev | Next Part: 65013000 *Qty: 1 R.H. STRUCTURAL SHAPE $40.67
Location: 6 Prev | Next Part: 65546200 *Qty: 1 L.H. STRUCTURAL SHAPE $40.67
Location: 7 Prev | Next Part: 16082901 *Qty: 12 SCREW $0.90
Location: 8 Prev | Next Part: 65864100 *Qty: 12 SCREW $1.90
Location: 9 Prev | Next Part: 61529400 *Qty: 12 GASKET $2.41
Location: 10 Prev | Next Part: 184786 *Qty: 2 OPENING DOOR LAMP $20.29
Location: 11 Prev | Next Part: 140576 *Qty: 2 GASKET $15.70
Location: 12 Prev | Next Part: 15901570 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: 61828500 *Qty: 4 FIXING CLIP $0.90
Location: 14 Prev | Next Part: 64855600 *Qty: 2 GASKET $66.44
Location: 15 Prev | Next Part: 62764000 *Qty: 14 RIVET $0.90
Location: 16 Prev | Next Part: 65547800 *Qty: 1 L.H. BRACKET $3.17
Location: 16 Prev | Next Part: 65546400 *Qty: 1 R.H. BRACKET $3.17
Location: 17 Prev | Next Part: 15644075 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 67538600 *Qty: 1 R.H. COVERED DOOR PANEL -Not for USA and CDN $2,684.93
Location: 18 Prev | Next Part: 67787600 *Qty: 1 L.H. COVERED DOOR PANEL -Valid for USA and CDN $2,951.46
Location: 18 Prev | Next Part: 67787500 *Qty: 1 R.H. COVERED DOOR PANEL -Valid for USA and CDN $2,951.46
Location: 18 Prev | Next Part: 67538700 *Qty: 1 L.H. COVERED DOOR PANEL -Not for USA and CDN Call
Location: 19 Prev | Next Part: 14190190 *Qty: 12 NUT $2.49
Location: 20 Prev | Next Part: 177553 *Qty: 8 CLAMP $0.90
Location: 21 Prev | Next Part: 14201980 *Qty: 4 BLOCK $0.90
Location: 22 Prev | Next Part: 15688170 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 65705000 *Qty: 1 R.H. PLATE $15.60
Location: 23 Prev | Next Part: 65717800 *Qty: 1 L.H. PLATE $16.57
Location: 24 Prev | Next Part: 65705300 *Qty: 4 CLIP $0.90
Location: 25 Prev | Next Part: 14201980 *Qty: 4 BLOCK $0.90
Location: 26 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 14190190 *Qty: 4 NUT WITH CAGE $2.49
Location: 28 Prev | Next Part: 67531700 *Qty: 2 HANDLE MOULDING $142.54
Location: 29 Prev | Next Part: 67111400 *Qty: 4 RUBBER $0.90
Location: 30 Prev | Next Part: 66212700 *Qty: 1 R.H. WATER PROTECTION CLOTH $50.78
Location: 30 Prev | Next Part: 66212800 *Qty: 1 L.H. WATER PROTECTION CLOTH $50.78
Location: 31 Prev | Next Part: 67761800 *Qty: 1 L.H. GASKET $190.90
Location: 31 Prev | Next Part: 67761700 *Qty: 1 R.H. GASKET $190.90
Location: 32 Prev | Next Part: 67194200 *Qty: 2 SMALL PLATE $3.82
Location: 33 Prev | Next Part: 67759228 *Qty: 0 R.H. FRONT INSERT (Color Code 28) Call
Location: 33 Prev | Next Part: 67759300 *Qty: 0 RIPORTO VANO ANT.SX PANN.PORTA $74.78
Location: 33 Prev | Next Part: 67759204 *Qty: 0 R.H. FRONT INSERT (Color Code 04) Call
Location: 33 Prev | Next Part: 67759317 *Qty: 0 L.H. FRONT INSERT (Color Code 17) Call
Location: 33 Prev | Next Part: 67759225 *Qty: 0 R.H. FRONT INSERT (Color Code 25) Call
Location: 33 Prev | Next Part: 67759328 *Qty: 0 L.H. FRONT INSERT (Color Code 28) Call
Location: 33 Prev | Next Part: 67759230 *Qty: 0 R.H. FRONT INSERT (Color Code 30) Call
Location: 33 Prev | Next Part: 67759304 *Qty: 0 L.H. FRONT INSERT (Color Code 04) Call
Location: 33 Prev | Next Part: 67759325 *Qty: 0 L.H. FRONT INSERT (Color Code 25) Call
Location: 33 Prev | Next Part: 67759330 *Qty: 0 L.H. FRONT INSERT (Color Code 30) Call
Location: 33 Prev | Next Part: 67759205 *Qty: 0 R.H. FRONT INSERT (Color Code 05) Call
Location: 33 Prev | Next Part: 67759202 *Qty: 0 R.H. FRONT INSERT (Color Code 02) Call
Location: 33 Prev | Next Part: 67759227 *Qty: 0 R.H. FRONT INSERT (Color Code 27) Call
Location: 33 Prev | Next Part: 67759219 *Qty: 0 R.H. FRONT INSERT (Color Code 19) Call
Location: 33 Prev | Next Part: 67759231 *Qty: 0 R.H. FRONT INSERT (Color Code 31) Call
Location: 33 Prev | Next Part: 67759229 *Qty: 0 R.H. FRONT INSERT (Color Code 29) Call
Location: 33 Prev | Next Part: 67759305 *Qty: 0 L.H. FRONT INSERT (Color Code 05) Call
Location: 33 Prev | Next Part: 67759302 *Qty: 0 L.H. FRONT INSERT (Color Code 02) Call
Location: 33 Prev | Next Part: 67759327 *Qty: 0 L.H. FRONT INSERT (Color Code 27) Call
Location: 33 Prev | Next Part: 67759319 *Qty: 0 L.H. FRONT INSERT (Color Code 19) Call
Location: 33 Prev | Next Part: 67759331 *Qty: 0 L.H. FRONT INSERT (Color Code 31) Call
Location: 33 Prev | Next Part: 67759329 *Qty: 0 L.H. FRONT INSERT (Color Code 29) Call
Location: 33 Prev | Next Part: 67759200 *Qty: 0 RIPORTO VANO ANT.DX PANN.PORTA $74.78
Location: 33 Prev | Next Part: 67759217 *Qty: 0 R.H. FRONT INSERT (Color Code 17) Call
Location: 34 Prev | Next Part: 67759505 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 05) Call
Location: 34 Prev | Next Part: 67759502 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 02) Call
Location: 34 Prev | Next Part: 67759519 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 19) Call
Location: 34 Prev | Next Part: 67759527 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 27) Call
Location: 34 Prev | Next Part: 67759529 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 29) Call
Location: 34 Prev | Next Part: 67759531 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 31) Call
Location: 34 Prev | Next Part: 67759400 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 00) Call
Location: 34 Prev | Next Part: 67759417 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 17) Call
Location: 34 Prev | Next Part: 67759428 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 28) Call
Location: 34 Prev | Next Part: 67759404 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 04) Call
Location: 34 Prev | Next Part: 67759500 *Qty: 0 RIPORTO VANO POST.SX PANN.PORT $269.66
Location: 34 Prev | Next Part: 67759425 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 25) Call
Location: 34 Prev | Next Part: 67759517 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 17) Call
Location: 34 Prev | Next Part: 67759430 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 30) Call
Location: 34 Prev | Next Part: 67759528 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 28) Call
Location: 34 Prev | Next Part: 67759504 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 04) Call
Location: 34 Prev | Next Part: 67759525 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 25) Call
Location: 34 Prev | Next Part: 67759530 *Qty: 0 L.H. REAR CARPET SHIELD (Color Code 30) Call
Location: 34 Prev | Next Part: 67759405 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 05) Call
Location: 34 Prev | Next Part: 67759402 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 02) Call
Location: 34 Prev | Next Part: 67759427 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 27) Call
Location: 34 Prev | Next Part: 67759419 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 19) Call
Location: 34 Prev | Next Part: 67759431 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 31) Call
Location: 34 Prev | Next Part: 67759429 *Qty: 0 R.H. REAR CARPET SHIELD (Color Code 29) Call
Location: 35 Prev | Next Part: 67953900 *Qty: 3 ANTI-VIBRATIONS $0.90
Location: 36 Prev | Next Part: 65643100 *Qty: 1 CUSTOMER PLATE -Optional $642.65
Location: 37 Prev | Next Part: 67954000 *Qty: 2 ANTI-VIBRATIONS -Valid for USA and CDN Call

* Quantity shown indicates the number of pieces used in the diagram.
