DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 196702 *Qty: 1 COMPLETE INSTRUMENT BOARD -Not for USA and GB $5,353.54
Location: 1 Prev | Next Part: 200472 *Qty: 1 COMPLETE INSTRUMENT BOARD -Valid for GB -Not for car with metrical system Call
Location: 1 Prev | Next Part: 200471 *Qty: 1 COMPLETE INSTRUMENT BOARD -Valid for USA -Not for car with metrical system Call
Location: 2 Prev | Next Part: 60815200 *Qty: 4 SCREW $1.40
Location: 3 Prev | Next Part: 65077200 *Qty: 1 SWITCH HOLDER PLATE $30.69
Location: 4 Prev | Next Part: 177902 *Qty: 1 PUSH-BUTTONS FOR INSTRUMENTS FUNCTIONS CONTROL $198.26
Location: 5 Prev | Next Part: 15641175 *Qty: 4 SCREW -Not as spare part -Replaced by 15901475 $0.90
Location: 5 Prev | Next Part: 15901475 *Qty: 4 SCREW $0.90
Location: 6 Prev | Next Part: 167064 *Qty: 1 ANTI-THEFT WARNING LED $46.07
Location: 7 Prev | Next Part: 180731 *Qty: 1 FUEL DOOR OPENING PUSH-BUTTON $137.65
Location: 8 Prev | Next Part: 182932 *Qty: 1 SWITCH FOR PARKING LIGHT $80.97
Location: 9 Prev | Next Part: 180733 *Qty: 1 REAR FOG LIGHT CONTROL SWITCH -Not for USA and CDN $137.65
Location: 9 Prev | Next Part: 67084500 *Qty: 1 PLUG -Valid for USA and CDN $14.28
Location: 10 Prev | Next Part: 180730 *Qty: 1 FRONT PUSH BUTTON $141.87
Location: 11 Prev | Next Part: 64692400 *Qty: 1 SENSOR $196.11
Location: 12 Prev | Next Part: 63934200 *Qty: 1 INNER COMPARTMENT TEMPERATURE SENSOR $122.76
Location: 13 Prev | Next Part: 63994700 *Qty: 1 WASHER CASING SENSOR $6.50
Location: 14 Prev | Next Part: 63994600 *Qty: 1 WASHER $7.36
Location: 15 Prev | Next Part: 15915977 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 63994500 *Qty: 1 SENSOR COVERING GRILL $9.00
Location: 17 Prev | Next Part: 65520500 *Qty: 1 A.C. CONTROL SET -With degrees ? C $1,703.06
Location: 17 Prev | Next Part: 65803000 *Qty: 1 A.C. CONTROL SET -With degrees ? F $1,703.06
Location: 18 Prev | Next Part: 182898 *Qty: 1 R.H. SWITCH FOR GLASS LIFT -Valid for descending glass $106.31
Location: 19 Prev | Next Part: 182899 *Qty: 1 L.H. SWITCH FOR GLASS LIFT -Valid for descending glass $103.21
Location: 20 Prev | Next Part: 191046 *Qty: 1 SWITCH FOR OUTER REARVIEW MIRRORS CONTROL $138.32
Location: 21 Prev | Next Part: 67638100 *Qty: 1 PLATE Call
Location: 22 Prev | Next Part: 14418924 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 12601074 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 13506624 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 67354100 *Qty: 1 FIXING CLIP $46.67
Location: 26 Prev | Next Part: 67638000 *Qty: 1 FRONT PLATE -Not for GD Call
Location: 26 Prev | Next Part: 67836200 *Qty: 1 FRONT PLATE -Valid for GD Call
Location: 27 Prev | Next Part: 14418924 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 12601074 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 13506624 *Qty: 4 WASHER $0.90
Location: 30 Prev | Next Part: 190352 *Qty: 1 PUSH BUTTON $180.14
Location: 31 Prev | Next Part: 67681800 *Qty: 1 SPACER Call
Location: 32 Prev | Next Part: 194353 *Qty: 1 RING NUT $7.02
Location: 33 Prev | Next Part: 197009 *Qty: 1 LAUNCH CONTROL SWITCH $102.60
Location: 34 Prev | Next Part: 197010 *Qty: 1 ASR EXCLUSION CONTROL SWITCH $102.60
Location: 35 Prev | Next Part: 197011 *Qty: 1 RACE SWITCH $67.89
Location: 36 Prev | Next Part: 197013 *Qty: 1 LOCK/UNLOCK DOORS SWITCH $102.60
Location: 37 Prev | Next Part: 157477 *Qty: 1 EMERGENCY LIGHTS SWITCH -Valid till stock exhaustion Superseded
Location: 38 Prev | Next Part: 197012 *Qty: 1 REAR GEAR LIGHT CONTROL SWITCH Call
Location: 39 Prev | Next Part: 67836300 *Qty: 1 BRACKET -Valid for GD Call
Location: 39 Prev | Next Part: 67786500 *Qty: 1 BRACKET -Not for GD Call
Location: 40 Prev | Next Part: 14303021 *Qty: 2 SCREW $1.32
Location: 41 Prev | Next Part: 14497701 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 197158 *Qty: 1 12 VOLT SOCKET $47.19

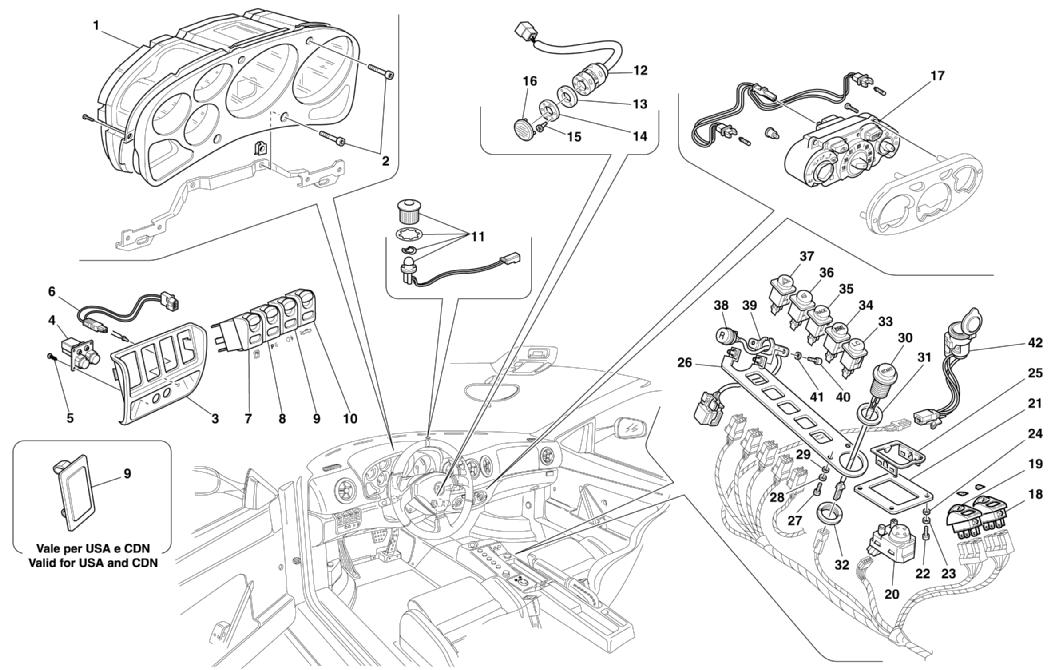

* Quantity shown indicates the number of pieces used in the diagram.
