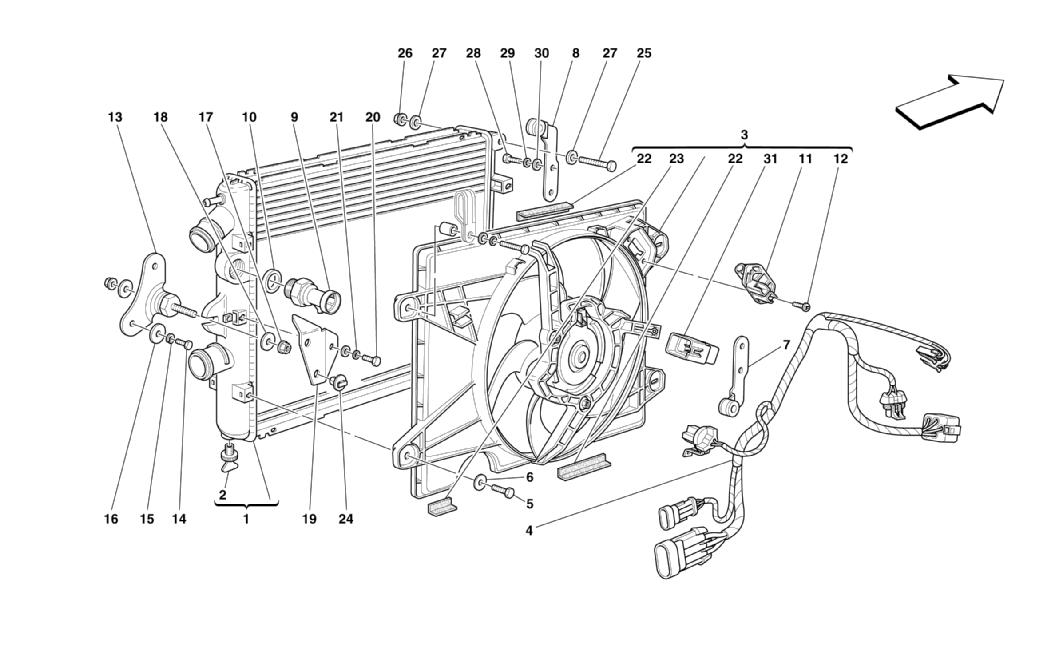

COOLING SYSTEM RADIATORS

Go to Split View

COOLING SYSTEM RADIATORS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 172456 *Qty: 1 WATER R.H. RADIATOR $1,759.04
Location: 1 Prev | Next Part: 176056 *Qty: 1 WATER L.H. RADIATOR $1,604.40
Location: 2 Prev | Next Part: 176324 *Qty: 2 WATER OUTLET PLUG $0.90
Location: 3 Prev | Next Part: 177501 *Qty: 1 COMPLETE L.H. ELECTROFAN $506.86
Location: 3 Prev | Next Part: 174086 *Qty: 1 COMPLETE R.H. ELECTROFAN $506.55
Location: 4 Prev | Next Part: 179010 *Qty: 1 R.H. ELECTROFAN WIRING $259.48
Location: 5 Prev | Next Part: 16286024 *Qty: 3 SCREW $0.90
Location: 6 Prev | Next Part: 12647624 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 179435 *Qty: 2 R.H. LOWER-L.H. UPPER RADIATOR SUPPORT $112.03
Location: 8 Prev | Next Part: 179436 *Qty: 2 R.H. UPPER-L.H. LOWER RADIATOR SUPPORT $109.90
Location: 9 Prev | Next Part: 176322 *Qty: 1 TEMPERATURE SWITCH $36.88
Location: 10 Prev | Next Part: 101508 *Qty: 1 GASKET $1.46
Location: 11 Prev | Next Part: 185543 *Qty: 1 RESISTOR $34.86
Location: 12 Prev | Next Part: 15958801 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 179834 *Qty: 2 RADIATOR CENTRAL BRACKET $112.88
Location: 14 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 106850 *Qty: 4 WASHER Superseded
Location: 16 Prev | Next Part: 12640624 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 14058511 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 124338 *Qty: 2 WASHER $3.69
Location: 19 Prev | Next Part: 178797 *Qty: 1 WATER R.H. RADIATOR BRACKET $3.74
Location: 20 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 14499324 *Qty: 1 WASHER Superseded
Location: 22 Prev | Next Part: 183693 *Qty: 4 GASKET FOR ELECTROFAN Call
Location: 23 Prev | Next Part: 183872 *Qty: 3 GASKET FOR ELECTROFAN $17.45
Location: 24 Prev | Next Part: 176062 *Qty: 2 SUPPORT FOR UNION $12.09
Location: 25 Prev | Next Part: 16044324 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 14058511 *Qty: 2 NUT $0.90
Location: 27 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 10902424 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: 106850 *Qty: 8 WASHER Superseded
Location: 30 Prev | Next Part: 12640624 *Qty: 8 WASHER $0.90
Location: 31 Prev | Next Part: 180026 *Qty: 1 30/40 A RELAY $34.31

* Quantity shown indicates the number of pieces used in the diagram.
