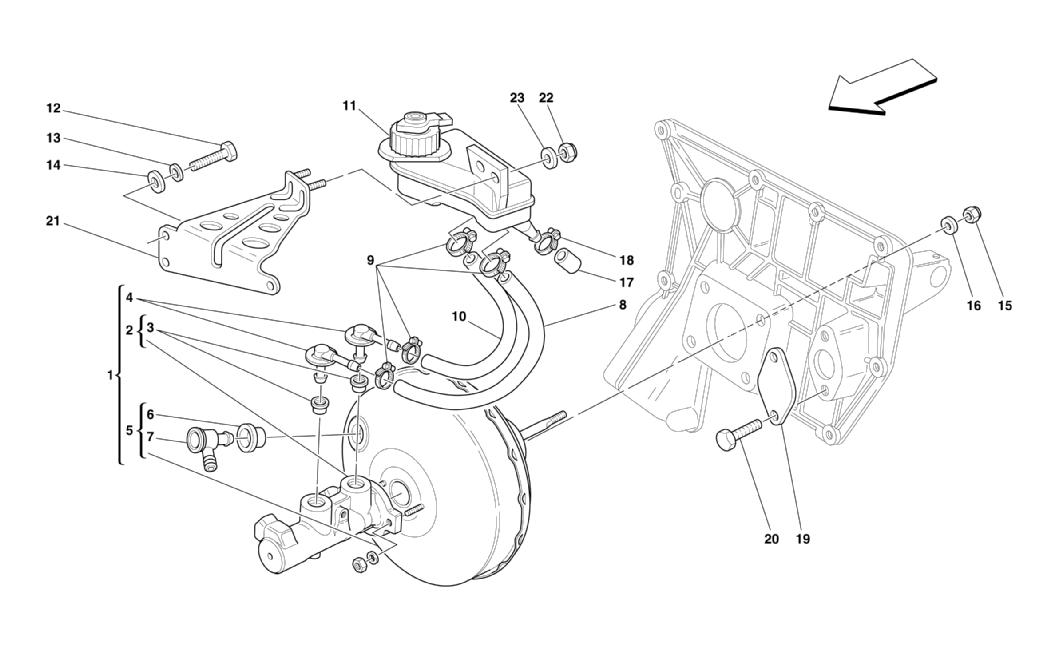

BRAKES HYDRAULIC CONTROL -VALID FOR RHD

Go to Split View

BRAKES HYDRAULIC CONTROL -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 198634 *Qty: 1 COMPLETE BRAKE BOOSTER $1,122.66
Location: 8 Prev | Next Part: 182246 *Qty: 1 PIPE FROM FRONT UNION TO TANK $4.27
Location: 9 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 182247 *Qty: 1 PIPE FROM REAR UNION TO TANK $4.27
Location: 11 Prev | Next Part: 173415 *Qty: 1 COMPLETE BRAKE OIL TANK $91.70
Location: 12 Prev | Next Part: 10902524 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 15 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 16 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 17 Prev | Next Part: 136379 *Qty: 1 PLUG $4.58
Location: 18 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 19 Prev | Next Part: 174177 *Qty: 1 FLANGE $85.57
Location: 20 Prev | Next Part: 16043021 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 179101 *Qty: 1 BRACKET FOR BRAKE OIL TANK FIXING Call
Location: 22 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 23 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
