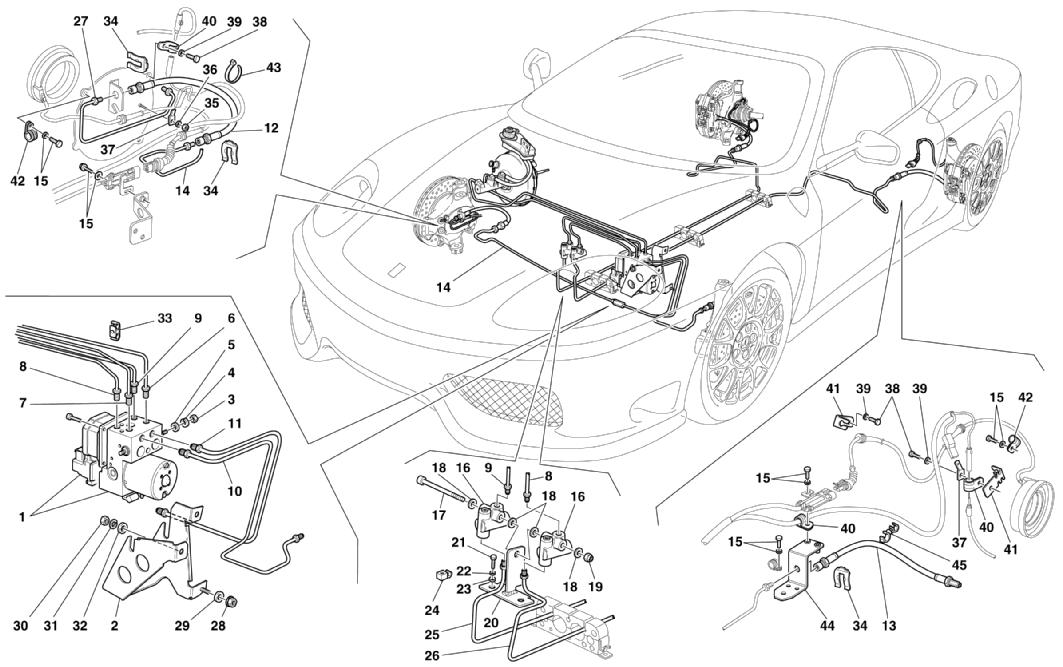

BRAKE SYSTEM -VALID FOR RHD

Go to Split View

BRAKE SYSTEM -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182535 *Qty: 1 ABS/ASR HYDRAULIC CONTROL STATION $3,494.62
Location: 2 Prev | Next Part: 177512 *Qty: 1 CONTROL STATION SUPPORTING BRACKET Call
Location: 3 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 201585 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Valid till Ass. Nr. 57483 $32.03
Location: 6 Prev | Next Part: 213701 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Valid from Ass. Nr. 57484 Call
Location: 7 Prev | Next Part: 201584 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Valid till Ass. Nr. 57483 $32.03
Location: 7 Prev | Next Part: 213700 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Valid from Ass. Nr. 57484 Call
Location: 8 Prev | Next Part: 213703 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. BRAKING REGULATOR -Valid from Ass. Nr. 57484 Call
Location: 8 Prev | Next Part: 201587 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. BRAKING REGULATOR -Valid till Ass. Nr. 57483 $30.82
Location: 9 Prev | Next Part: 213702 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. BRAKING REGULATOR -Valid from Ass. Nr. 57484 Call
Location: 9 Prev | Next Part: 201586 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. BRAKING REGULATOR -Valid till Ass. Nr. 57483 $28.40
Location: 10 Prev | Next Part: 177158 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. FRONT BRAKE PIPE -Valid till Ass. Nr. 57483 Call
Location: 10 Prev | Next Part: 213659 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. FRONT BRAKE PIPE -Valid from Ass. Nr. 57484 Call
Location: 11 Prev | Next Part: 213658 *Qty: 1 PIPE FROM CONTROL STATION TO UNION PIPE -Valid from Ass. Nr. 57484 Call
Location: 11 Prev | Next Part: 177157 *Qty: 1 PIPE FROM CONTROL STATION TO UNION PIPE -Valid till Ass. Nr. 57483 Call
Location: 12 Prev | Next Part: 116373 *Qty: 2 FRONT HOSE Superseded
Location: 13 Prev | Next Part: 118100 *Qty: 2 REAR HOSE Superseded
Location: 14 Prev | Next Part: 177161 *Qty: 1 UNION PIPE TO R.H. FRONT BRAKE PIPE Call
Location: 15 Prev | Next Part: 11625724 *Qty: 14 SCREW WITH WASHER $1.15
Location: 16 Prev | Next Part: 172979 *Qty: 2 BRAKING REGULATOR $151.93
Location: 17 Prev | Next Part: 14307124 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 14496524 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 198063 *Qty: 1 BRACKET FOR BRAKING REGULATOR SUPPORTING $36.25
Location: 21 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 169477 *Qty: 1 CLIP $2.40
Location: 25 Prev | Next Part: 196424 *Qty: 1 PIPE FROM BRAKING REGULATOR TO R.H. REAR JOINT -Valid till Ass. Nr. 57483 Call
Location: 25 Prev | Next Part: 213697 *Qty: 1 PIPE FROM BRAKING REGULATOR TO R.H. REAR JOINT -Valid from Ass. Nr. 57484 Call
Location: 26 Prev | Next Part: 213698 *Qty: 1 PIPE FROM BRAKING REGULATOR TO L.H. REAR JOINT -Valid from Ass. Nr. 57484 Call
Location: 26 Prev | Next Part: 196427 *Qty: 1 PIPE FROM BRAKING REGULATOR TO L.H. REAR JOINT -Valid till Ass. Nr. 57483 Call
Location: 27 Prev | Next Part: 200324 *Qty: 1 PIPE TO R.H. FRONT BRAKE -Valid till Ass. Nr. 57483 $39.14
Location: 27 Prev | Next Part: 213696 *Qty: 1 PIPE TO L.H. FRONT BRAKE -Valid from Ass. Nr. 57484 Call
Location: 27 Prev | Next Part: 200325 *Qty: 1 PIPE TO L.H. FRONT BRAKE -Valid till Ass. Nr. 57483 $39.14
Location: 27 Prev | Next Part: 213694 *Qty: 1 PIPE TO R.H. FRONT BRAKE -Valid from Ass. Nr. 57484 Call
Location: 28 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 29 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 30 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 169476 *Qty: 4 CLIP $3.69
Location: 34 Prev | Next Part: 116374 *Qty: 10 CLIP $2.96
Location: 35 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 149951 *Qty: 2 WASHER Superseded
Location: 37 Prev | Next Part: 143405 *Qty: 4 KEY $0.90
Location: 38 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 39 Prev | Next Part: 14496324 *Qty: 4 WASHER $4.02
Location: 40 Prev | Next Part: 10441190 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 41 Prev | Next Part: 178938 *Qty: 4 SUPPORT FOR CABLE $36.56
Location: 42 Prev | Next Part: 10440890 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 43 Prev | Next Part: 145854 *Qty: 6 TEAR TYPE CLAMP $0.90
Location: 44 Prev | Next Part: 185283 *Qty: 2 REAR SUPPORT $135.59
Location: 45 Prev | Next Part: 150738 *Qty: 6 FLEXIBLE CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
