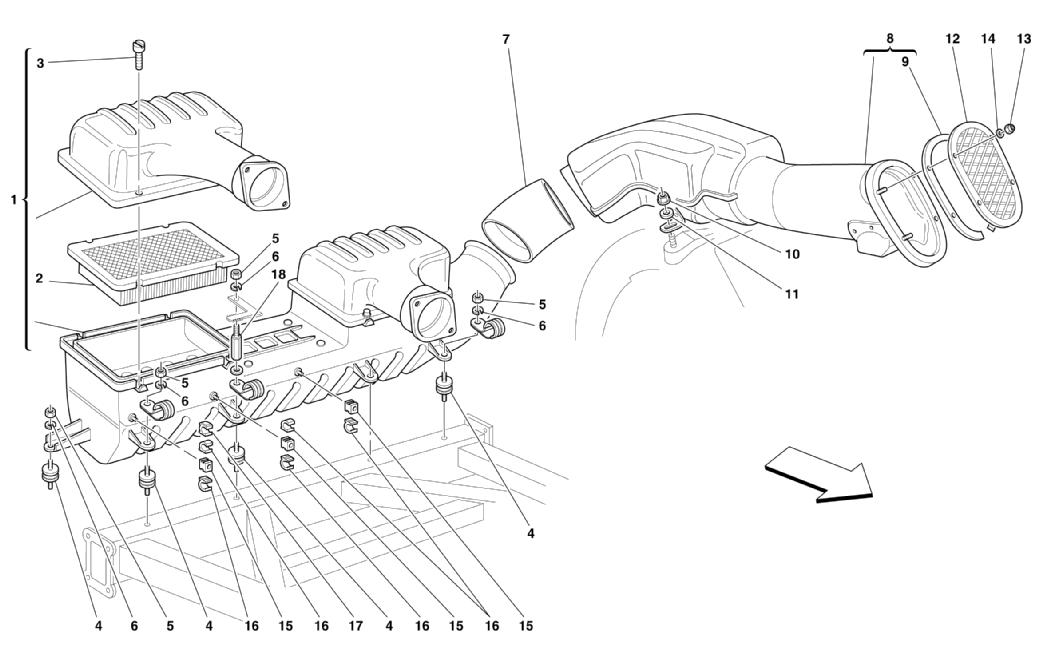

AIR INTAKE

Go to Split View

AIR INTAKE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 196023 *Qty: 1 COMPLETE FILTER BOX $5,966.55
Location: 2 Prev | Next Part: 190880 *Qty: 2 AIR FILTER $48.07
Location: 3 Prev | Next Part: 157757 *Qty: 8 SCREW $1.32
Location: 4 Prev | Next Part: 142202 *Qty: 6 PAD $10.09
Location: 5 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 6 Prev | Next Part: 12643724 *Qty: 6 WASHER $0.90
Location: 7 Prev | Next Part: 176924 *Qty: 1 SLEEVE $38.19
Location: 8 Prev | Next Part: 201703 *Qty: 1 AIR CONVEYOR $411.71
Location: 9 Prev | Next Part: 178293 *Qty: 1 RUBBER THICKNESS $4.71
Location: 10 Prev | Next Part: 14059211 *Qty: 1 NUT $0.90
Location: 11 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: 63580500 *Qty: 2 COMPLETE GRILL $52.83
Location: 13 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 14496324 *Qty: 2 WASHER $4.01
Location: 15 Prev | Next Part: 155781 *Qty: 3 ANCHORAGE $0.90
Location: 16 Prev | Next Part: 140130 *Qty: 5 CLIP $0.90
Location: 17 Prev | Next Part: 157709 *Qty: 4 CLIP $77.72
Location: 18 Prev | Next Part: 200813 *Qty: 1 STUD $10.55

* Quantity shown indicates the number of pieces used in the diagram.
