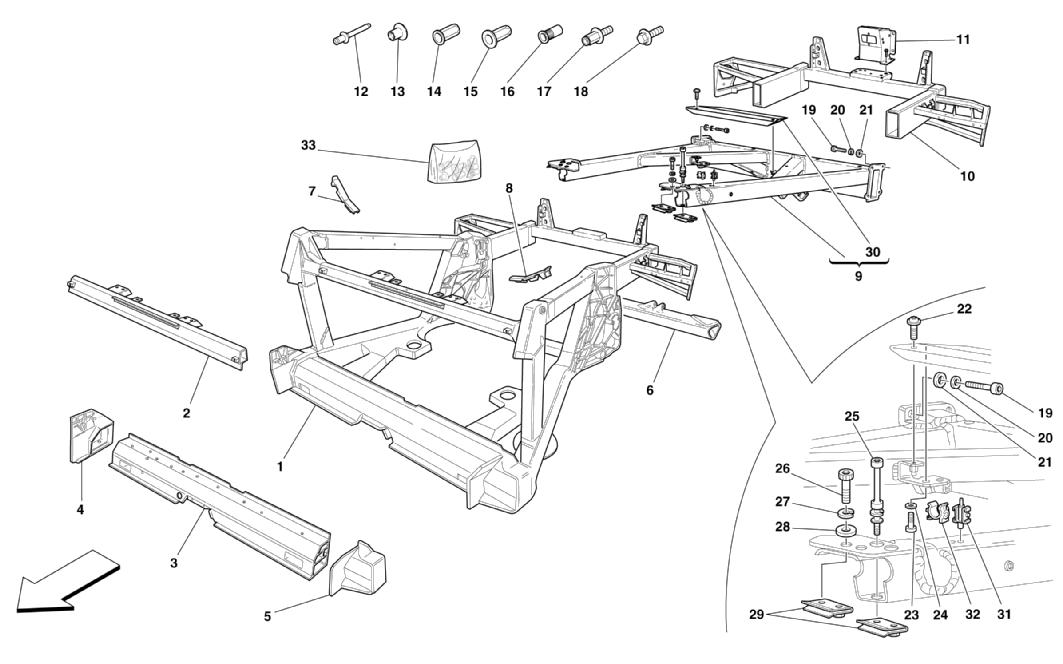

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

Go to Split View

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66652500 *Qty: 1 COMPLETE REAR FRAME -Valid from car Nr. 120573 Call
Location: 1 Prev | Next Part: 66789600 *Qty: 1 COMPLETE REAR FRAME -Valid till car Nr. 120572 Call
Location: 2 Prev | Next Part: 66652700 *Qty: 1 COMPLETE TAIL REAR WINDOW CROSSPIECE Call
Location: 3 Prev | Next Part: 66652900 *Qty: 1 REAR CROSS MEMBER Call
Location: 4 Prev | Next Part: 199984 *Qty: 1 R.H. LOWER REAR CASTING -Valid from car Nr. 138028 Call
Location: 4 Prev | Next Part: 6166260 *Qty: 1 R.H. LOWER REAR CASTING -Valid till car Nr. 138027 Call
Location: 5 Prev | Next Part: 199983 *Qty: 1 L.H. LOWER REAR CASTING -Valid from car Nr. 138028 Call
Location: 5 Prev | Next Part: 6166160 *Qty: 1 L.H. LOWER REAR CASTING -Valid till car Nr. 138027 Call
Location: 6 Prev | Next Part: 65993600 *Qty: 1 COMPLETE LOWER CROSS MEMBER Call
Location: 7 Prev | Next Part: 65902300 *Qty: 1 R.H. BRACKET FOR INSULATION Call
Location: 8 Prev | Next Part: 65903500 *Qty: 1 L.H. BRACKET FOR INSULATION Call
Location: 9 Prev | Next Part: 66653000 *Qty: 1 COMPLETE REAR REMOVIBLE FRAME $2,008.63
Location: 10 Prev | Next Part: 66653100 *Qty: 1 COMPLETE REAR FRAME Call
Location: 11 Prev | Next Part: 65756200 *Qty: 1 BRACKET FOR ENGINE HOOD BONNETLOCK Call
Location: 12 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 12 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 13 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 14 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.78
Location: 14 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.26
Location: 14 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 14 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.04
Location: 14 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 15 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 16 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 16 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 16 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.85
Location: 16 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 16 Prev | Next Part: 179299 *Qty: 0 RIVET M10 $2.10
Location: 17 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 18 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 19 Prev | Next Part: 13028734 *Qty: 8 SCREW $0.90
Location: 20 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 10519624 *Qty: 8 WASHER $0.90
Location: 22 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 23 Prev | Next Part: 13027024 *Qty: 4 SCREW $0.90
Location: 24 Prev | Next Part: 10523424 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 183554 *Qty: 4 COMPLETE SCREW $15.93
Location: 26 Prev | Next Part: 13028734 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 179268 *Qty: 2 L.H. BRACKET Call
Location: 29 Prev | Next Part: 179269 *Qty: 2 R.H. BRACKET Call
Location: 30 Prev | Next Part: 181043 *Qty: 1 CROSS MEMBER $387.30
Location: 31 Prev | Next Part: 140162 *Qty: 2 ANCHORAGE FOR CLIP $0.90
Location: 32 Prev | Next Part: 140727 *Qty: 4 FLEXIBLE CLIP $0.90
Location: 33 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16

* Quantity shown indicates the number of pieces used in the diagram.
