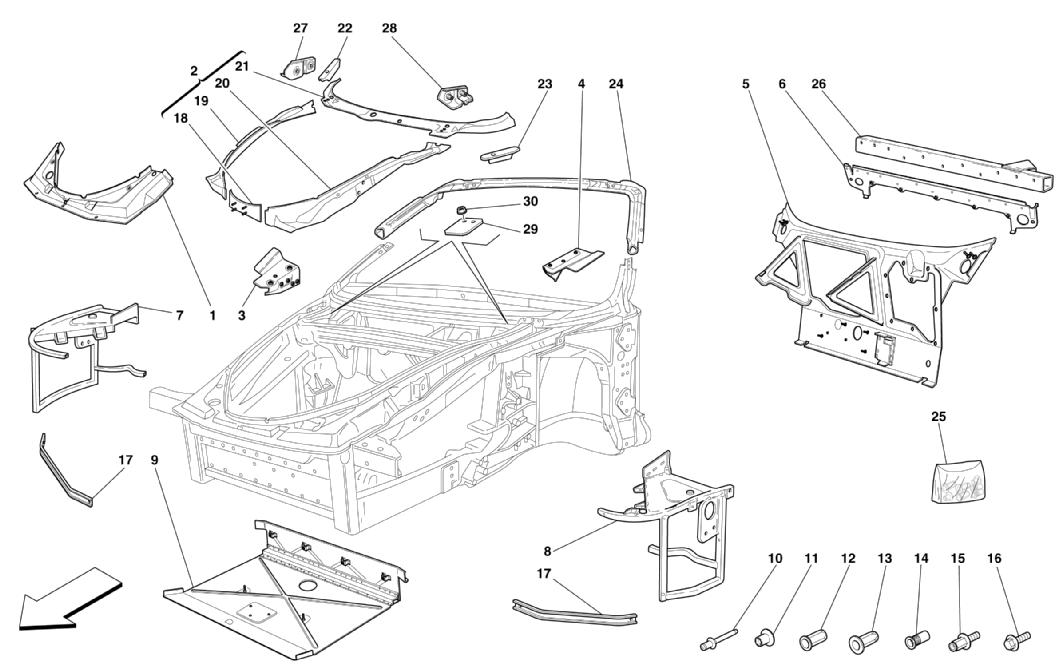

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

Go to Split View

FRAME - COMPLETE FRONT PART STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65393600 *Qty: 1 COMPLETE FRONT CROSS MEMBER Call
Location: 2 Prev | Next Part: 65393100 *Qty: 1 COMPLETE FRONT MOULDING -Not for USA and CDN from car 129927 -See Table 102 Pos. 1 Call
Location: 2 Prev | Next Part: 67504611 *Qty: 1 COMPLETE FRONT MOULDING -Valid only for USA and CDN from car 129927 -See Table 102 Pos. 1 $5,169.70
Location: 3 Prev | Next Part: 65393800 *Qty: 1 R.H. PLATE FOR FRONT HOOD BONNET HINGE $144.69
Location: 4 Prev | Next Part: 65393900 *Qty: 1 L.H. PLATE FOR FRONT HOOD BONNET HINGE $144.69
Location: 5 Prev | Next Part: 175739 *Qty: 1 COMPLETE FRONT SHIELD -Not for GD Call
Location: 5 Prev | Next Part: 177721 *Qty: 1 COMPLETE FRONT SHIELD -Valid for GD Call
Location: 6 Prev | Next Part: 64855900 *Qty: 1 TRUNK COMPARTMENT UPPER REAR PANEL -Not as spare part -Replaced by 65152300 Call
Location: 6 Prev | Next Part: 65152300 *Qty: 1 TRUNK COMPARTMENT UPPER REAR PANEL Call
Location: 7 Prev | Next Part: 66202300 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME Call
Location: 8 Prev | Next Part: 66202400 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME $796.85
Location: 9 Prev | Next Part: 65152500 *Qty: 1 COMPLETE COMPARTPMENT BOTTOM PLATE Call
Location: 10 Prev | Next Part: 14642891 *Qty: 0 POP RIVET L. 14 mm $0.90
Location: 10 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD POP RIVET $1.63
Location: 10 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD POP RIVET $2.40
Location: 11 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 12 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 12 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.22
Location: 12 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.01
Location: 12 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 12 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.60
Location: 13 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 14 Prev | Next Part: 179299 *Qty: 0 RIVET M10 $2.04
Location: 14 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 14 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 14 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 14 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 15 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 16 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 17 Prev | Next Part: 64874411 *Qty: 2 R.H. AND L.H. LOWER CARPET SHIELD $90.50
Location: 18 Prev | Next Part: 66219800 *Qty: 1 TRUNK COMPARTMENT UPPER MOULDING INSERT Call
Location: 19 Prev | Next Part: 65751100 *Qty: 1 R.H. FENDER SUPPORT WALL Call
Location: 20 Prev | Next Part: 65751200 *Qty: 1 L.H. FENDER SUPPORT WALL Call
Location: 21 Prev | Next Part: 66120311 *Qty: 1 UINDER WINDSCREED FRAME Call
Location: 22 Prev | Next Part: 65317400 *Qty: 1 R.H. BRACKET Call
Location: 23 Prev | Next Part: 65317500 *Qty: 1 L.H. BRACKET Call
Location: 24 Prev | Next Part: 65782900 *Qty: 1 COMPLETE UPPER WINDSHIELD CROSS MEMBER $1,067.61
Location: 25 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 26 Prev | Next Part: 66845200 *Qty: 1 COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Valid for GD Call
Location: 26 Prev | Next Part: 66846700 *Qty: 1 COMPLETE FRONT SUSPENSION UPPER CONNECTION CROSS MEMBER -Not for GD $985.09
Location: 27 Prev | Next Part: 65709800 *Qty: 1 R.H. BRACKET FOR FIXED HINGE Call
Location: 28 Prev | Next Part: 65709900 *Qty: 1 L.H. BRACKET FOR FIXED HINGE Call
Location: 29 Prev | Next Part: 65548800 *Qty: 2 SEAL $3.36
Location: 30 Prev | Next Part: 65897200 *Qty: 4 NUT $1.15

* Quantity shown indicates the number of pieces used in the diagram.
