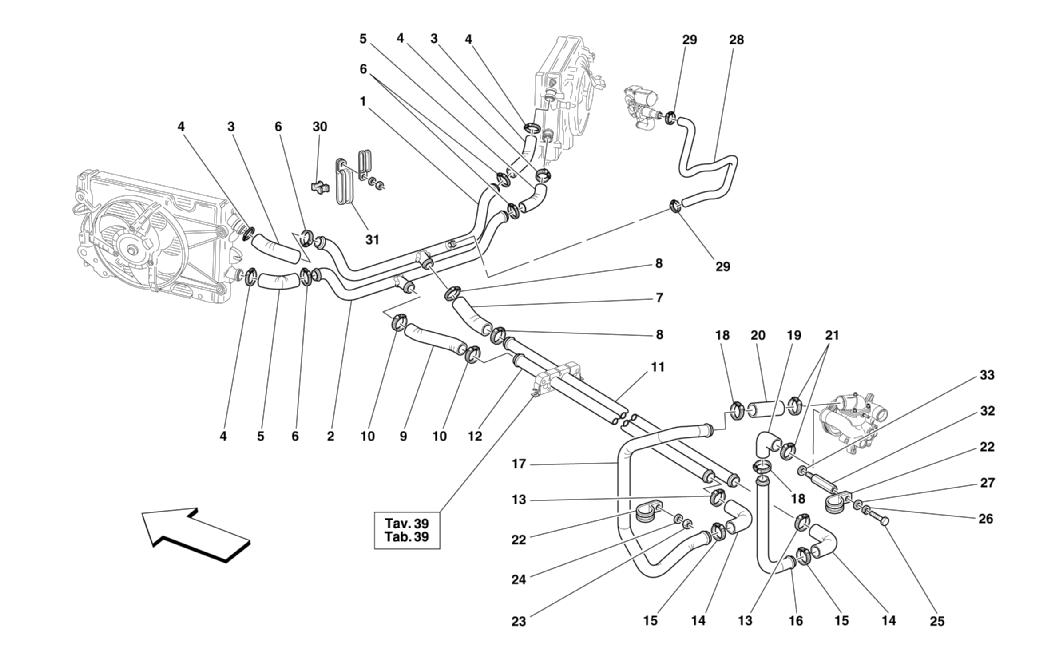

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 181746 *Qty: 1 RETURN WATER PIPE -Valid from Ass. Nr. 35744 $159.48
Location: 1 Prev | Next Part: 164162 *Qty: 1 RETURN WATER PIPE -Valid till Ass. Nr. 35743 $218.94
Location: 2 Prev | Next Part: 181790 *Qty: 1 DELIVERY WATER PIPE -Valid from Ass. Nr. 35744 $132.29
Location: 2 Prev | Next Part: 173384 *Qty: 1 DELIVERY WATER PIPE -Valid till Ass. Nr. 35743 $158.02
Location: 3 Prev | Next Part: 181757 *Qty: 2 RETURN RUBBER PIPE -Valid from Ass. Nr. 35744 $221.47
Location: 3 Prev | Next Part: 175000 *Qty: 2 RETURN RUBBER PIPE -Valid till Ass. Nr. 35743 $96.67
Location: 4 Prev | Next Part: 13001690 *Qty: 4 SCREW COLLAR $1.21
Location: 5 Prev | Next Part: 164165 *Qty: 2 DELIVERY RUBBER HOSE -Valid till Ass. Nr. 35743 $92.73
Location: 5 Prev | Next Part: 181802 *Qty: 2 DELIVERY RUBBER HOSE -Valid from Ass. Nr. 35744 $207.34
Location: 6 Prev | Next Part: 168220 *Qty: 4 SCREW COLLAR $0.90
Location: 7 Prev | Next Part: 181745 *Qty: 1 RETURN RUBBER HOSE -Valid from Ass. Nr. 35744 $83.94
Location: 7 Prev | Next Part: 173402 *Qty: 1 RETURN RUBBER HOSE -Valid till Ass. Nr. 35743 $152.05
Location: 8 Prev | Next Part: 13001690 *Qty: 2 SCREW COLLAR $1.21
Location: 9 Prev | Next Part: 181789 *Qty: 1 DELIVERY RUBBER HOSE -Valid from Ass. Nr. 35744 $150.17
Location: 9 Prev | Next Part: 175643 *Qty: 1 DELIVERY RUBBER HOSE -Valid till Ass. Nr. 35743 $197.15
Location: 10 Prev | Next Part: 13001690 *Qty: 2 SCREW COLLAR $1.21
Location: 11 Prev | Next Part: 164164 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE -Valid till Ass. Nr. 35743 $287.29
Location: 11 Prev | Next Part: 181743 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE -Valid from Ass. Nr. 35744 $232.28
Location: 12 Prev | Next Part: 181788 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE -Valid from Ass. Nr. 35744 Call
Location: 12 Prev | Next Part: 164163 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE -Valid till Ass. Nr. 35743 $84.96
Location: 13 Prev | Next Part: 13001690 *Qty: 2 SCREW COLLAR $1.21
Location: 14 Prev | Next Part: 164417 *Qty: 2 RUBBER HOSE -Valid till Ass. Nr. 35743 $80.39
Location: 14 Prev | Next Part: 181742 *Qty: 2 RUBBER HOSE -Valid from Ass. Nr. 35744 $151.68
Location: 15 Prev | Next Part: 13001690 *Qty: 2 SCREW COLLAR $1.21
Location: 16 Prev | Next Part: 181734 *Qty: 1 RETURN ALUMINIUM TUBE -Valid from Ass. Nr. 35744 $174.32
Location: 16 Prev | Next Part: 173392 *Qty: 1 RETURN ALUMINIUM TUBE -Valid till Ass. Nr. 35743 $232.44
Location: 17 Prev | Next Part: 173393 *Qty: 1 DELIVERY ALUMINIUM TUBE -Valid till Ass. Nr. 32567 $501.49
Location: 17 Prev | Next Part: 181786 *Qty: 1 DELIVERY ALUMINIUM TUBE -Valid from Ass. Nr. 35744 Call
Location: 17 Prev | Next Part: 180746 *Qty: 1 DELIVERY ALUMINIUM TUBE -Valid from Ass. Nr. 32568 till Ass. Nr. 35743 $319.21
Location: 18 Prev | Next Part: 13001690 *Qty: 2 SCREW COLLAR $1.21
Location: 19 Prev | Next Part: 178643 *Qty: 1 RETURN RUBBER HOSE -Valid till Ass. Nr. 35743 $174.30
Location: 19 Prev | Next Part: 181733 *Qty: 1 RETURN RUBBER HOSE -Valid from Ass. Nr. 35744 $154.47
Location: 20 Prev | Next Part: 181779 *Qty: 1 DELIVERY RUBBER HOSE -Valid from Ass. Nr. 35744 $208.86
Location: 20 Prev | Next Part: 175016 *Qty: 1 DELIVERY RUBBER HOSE -Valid till Ass. Nr. 35743 $60.58
Location: 21 Prev | Next Part: 13000790 *Qty: 2 SCREW COLLAR $0.90
Location: 22 Prev | Next Part: 182301 *Qty: 2 BRACKET WITH SHEATH $22.69
Location: 23 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 24 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 65231800 *Qty: 1 HOSE FROM TGK VALVE TO RETURN PIPE -Not for GD $42.46
Location: 28 Prev | Next Part: 65744800 *Qty: 1 HOSE FROM TGK VALVE TO RETURN PIPE -Valid for GD Call
Location: 29 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 30 Prev | Next Part: 183641 *Qty: 2 RUBBER SPACER $5.06
Location: 31 Prev | Next Part: 183642 *Qty: 2 BRACKET WITH SHEATH $26.75
Location: 32 Prev | Next Part: 179242 *Qty: 2 STUD $8.28
Location: 33 Prev | Next Part: 13550221 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
