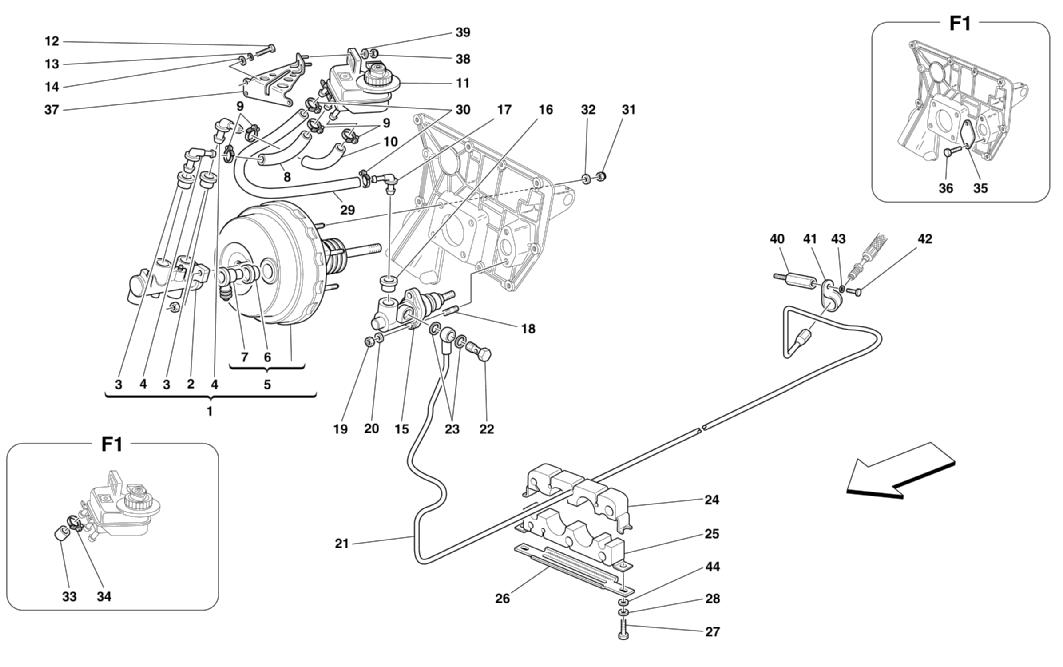

BRAKES AND CLUTCH HYDRAULIC CONTROLS -VALID FOR RHD

Go to Split View

BRAKES AND CLUTCH HYDRAULIC CONTROLS -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 171872 *Qty: 1 COMPLETE BRAKE BOOSTER $979.07
Location: 2 Prev | Next Part: 171782 *Qty: 1 BRAKE PUMP $539.62
Location: 3 Prev | Next Part: 171784 *Qty: 2 CONNECTION FOR BRAKE PUMP $4.93
Location: 4 Prev | Next Part: 173871 *Qty: 2 UNION $9.74
Location: 5 Prev | Next Part: 177090 *Qty: 1 BOOSTER Call
Location: 6 Prev | Next Part: 151475 *Qty: 1 CABLE GROMMET $13.46
Location: 7 Prev | Next Part: 144552 *Qty: 1 UNION $17.41
Location: 8 Prev | Next Part: 182246 *Qty: 1 PIPE FROM FRONT UNION TO TANK $4.27
Location: 9 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 10 Prev | Next Part: 182247 *Qty: 1 PIPE FROM REAR UNION TO TANK $4.27
Location: 11 Prev | Next Part: 173415 *Qty: 1 COMPLETE BRAKE OIL TANK $91.70
Location: 12 Prev | Next Part: 10902524 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 15 Prev | Next Part: 180841 *Qty: 1 CLUTCH PUMP -Not for F1 $404.00
Location: 16 Prev | Next Part: 175189 *Qty: 1 SEAL RING -Not for F1 $25.50
Location: 17 Prev | Next Part: 184497 *Qty: 1 UNION -Not for F1 $44.60
Location: 18 Prev | Next Part: 13517024 *Qty: 2 STUD -Not for F1 $0.90
Location: 19 Prev | Next Part: 104030 *Qty: 2 NUT -Not for F1 $0.90
Location: 20 Prev | Next Part: 12601374 *Qty: 2 WASHER -Not for F1 $0.90
Location: 21 Prev | Next Part: 177152 *Qty: 1 PIPE FROM PUMP TO REAR UNION -Not for F1 Call
Location: 22 Prev | Next Part: 180042 *Qty: 1 UNION -Not for F1 $50.74
Location: 23 Prev | Next Part: 10298460 *Qty: 2 GASKET -Not for F1 $0.90
Location: 24 Prev | Next Part: 183048 *Qty: 3 UPPER SUPPORT $34.16
Location: 25 Prev | Next Part: 183049 *Qty: 3 LOWER SUPPORT $28.80
Location: 26 Prev | Next Part: 178585 *Qty: 3 SMALL PLATE $2.96
Location: 27 Prev | Next Part: 10902424 *Qty: 6 SCREW $0.90
Location: 28 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 29 Prev | Next Part: 136376 *Qty: 1 RUBBER HOSE -Not for F1 $8.81
Location: 30 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR -Not for F1 $0.90
Location: 31 Prev | Next Part: 104030 *Qty: 4 NUT $0.90
Location: 32 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 136379 *Qty: 1 PLUG -Valid for F1 $4.58
Location: 34 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR -Valid for F1 $0.90
Location: 35 Prev | Next Part: 174177 *Qty: 1 FLANGE -Valid for F1 $85.57
Location: 36 Prev | Next Part: 16043021 *Qty: 2 SCREW -Valid for F1 $0.90
Location: 37 Prev | Next Part: 179101 *Qty: 1 BRACKET FOR BRAKE OIL TANK FIXING Call
Location: 38 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 39 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 40 Prev | Next Part: 178772 *Qty: 1 STUD -Not for F1 $11.00
Location: 41 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH -Not for F1 $0.90
Location: 42 Prev | Next Part: 10902224 *Qty: 1 SCREW -Not for F1 $0.90
Location: 43 Prev | Next Part: 127494 *Qty: 1 WASHER -Not for F1 $0.90
Location: 44 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
