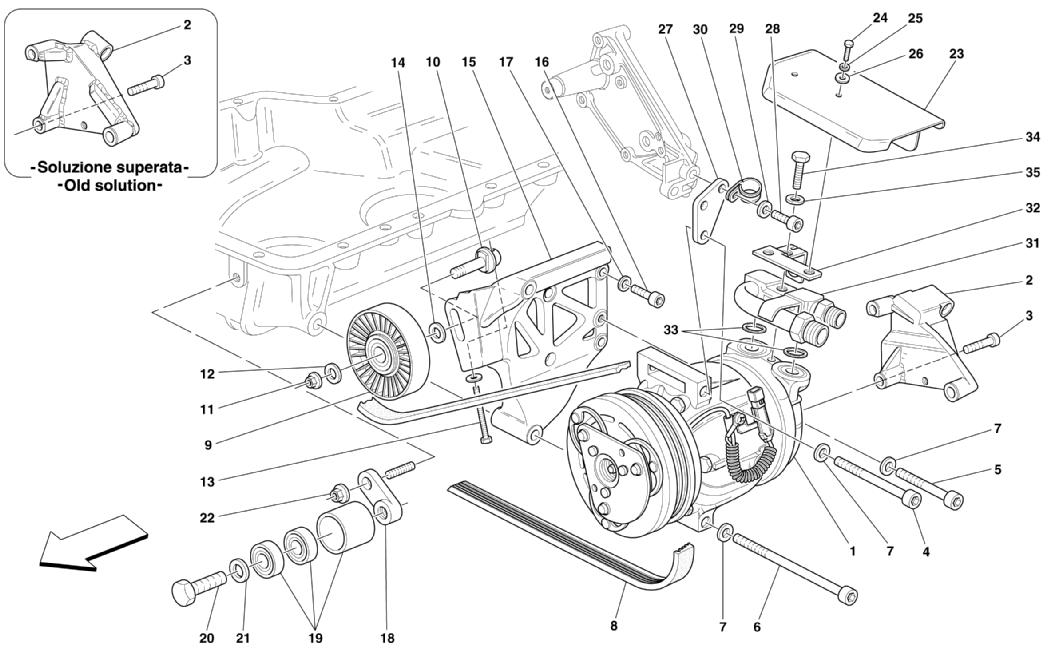

AIR CONDITIONING COMPRESSOR

Go to Split View

AIR CONDITIONING COMPRESSOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 180041 *Qty: 1 AIR CONDITIONING COMPRESSOR $3,011.62
Location: 2 Prev | Next Part: 194216 *Qty: 1 COMPRESSOR REAR BRACKET -Valid after stock exhaustion of 180099 $241.15
Location: 2 Prev | Next Part: 180099 *Qty: 1 COMPRESSOR REAR BRACKET -Valid till stock exhaustion $179.75
Location: 3 Prev | Next Part: 16044224 *Qty: 1 SCREW -Valid for 194216 bracket ref.2 $0.90
Location: 3 Prev | Next Part: 14306921 *Qty: 1 SCREW -Valid for 180099 bracket ref.2 $0.90
Location: 3 Prev | Next Part: 14306724 *Qty: 2 SCREW -Valid for 180099 bracket ref.2 $0.93
Location: 3 Prev | Next Part: 16044024 *Qty: 2 SCREW -Valid for 194216 bracket ref.2 $0.90
Location: 4 Prev | Next Part: 180604 *Qty: 1 SCREW $3.86
Location: 5 Prev | Next Part: 14307124 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 14301724 *Qty: 1 SCREW $2.42
Location: 7 Prev | Next Part: 11198074 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 201236 *Qty: 1 COMPRESSOR CONTROL BELT -Valid after stock exhaustion of 194227 $27.18
Location: 9 Prev | Next Part: 172537 *Qty: 1 BELT TIGHTENING PULLEY $119.54
Location: 10 Prev | Next Part: 172527 *Qty: 1 THREADED PIN $28.94
Location: 11 Prev | Next Part: 133216 *Qty: 1 NUT $5.11
Location: 12 Prev | Next Part: 102695 *Qty: 1 WASHER $0.84
Location: 13 Prev | Next Part: 178713 *Qty: 1 SCREW $7.45
Location: 14 Prev | Next Part: 174508 *Qty: 1 WASHER $6.24
Location: 15 Prev | Next Part: 179584 *Qty: 1 COMPRESSOR SUPPORT BRACKET $715.78
Location: 16 Prev | Next Part: 14306424 *Qty: 1 SCREW $0.90
Location: 16 Prev | Next Part: 14306624 *Qty: 3 SCREW $0.90
Location: 17 Prev | Next Part: 11198074 *Qty: 3 WASHER $0.90
Location: 17 Prev | Next Part: 183671 *Qty: 1 WASHER Call
Location: 18 Prev | Next Part: 180296 *Qty: 1 SMALL PLATE Call
Location: 19 Prev | Next Part: 179698 *Qty: 1 BELT TIGHTENING BEARING $156.69
Location: 20 Prev | Next Part: 15970921 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 11190574 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 177778 *Qty: 1 NUT $1.88
Location: 23 Prev | Next Part: 178749 *Qty: 1 SHIELD FOR COMPRESSOR PROTECTION $95.62
Location: 24 Prev | Next Part: 10902024 *Qty: 3 SCREW $0.90
Location: 25 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 26 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 27 Prev | Next Part: 180291 *Qty: 1 SMALL PLATE $3.16
Location: 28 Prev | Next Part: 14306374 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 11198074 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 10449790 *Qty: 1 BRACKET WITH SHEATH $1.36
Location: 31 Prev | Next Part: 191955 *Qty: 1 FREON DISTRIBUTOR $451.67
Location: 32 Prev | Next Part: 192348 *Qty: 1 HEAT PROTECTION BRACKET $32.88
Location: 33 Prev | Next Part: 192351 *Qty: 2 O.R. GASKET $9.74
Location: 34 Prev | Next Part: 192349 *Qty: 1 SCREW $1.36
Location: 35 Prev | Next Part: 192350 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
