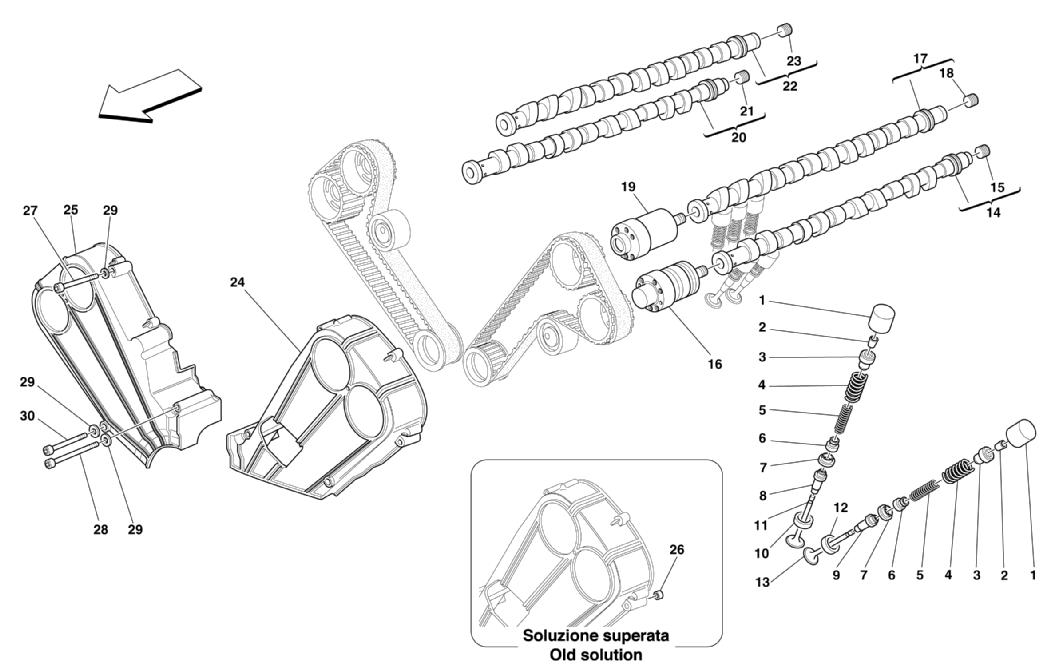

TIMING - TAPPETS AND SHIELDS

Go to Split View

TIMING - TAPPETS AND SHIELDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 195017 *Qty: 40 TAPPET FOR VALVE CONTROL -Valid after stock exhaustion of 149750 Call
Location: 2 Prev | Next Part: 157986 *Qty: 80 COTTER FOR VALVE SPRING $2.74
Location: 3 Prev | Next Part: 157989 *Qty: 40 UPPER CUP $8.51
Location: 4 Prev | Next Part: 149888 *Qty: 40 OUTER SPRING FOR VALVE RETURN -Not as spare part replaced by 180192 $5.61
Location: 4 Prev | Next Part: 180192 *Qty: 40 OUTER SPRING FOR VALVE RETURN -Replaces 149888 $8.65
Location: 5 Prev | Next Part: 180208 *Qty: 40 INNER SPRING FOR VALVE RETURN -Replaces 149889 $5.82
Location: 5 Prev | Next Part: 149889 *Qty: 40 INNER SPRING FOR VALVE RETURN -Not as spare part replaced by 180208 Call
Location: 6 Prev | Next Part: 148153R *Qty: 40 OIL RING Call
Location: 7 Prev | Next Part: 180360 *Qty: 40 LOWER CUP -OVERSIZED $8.31
Location: 7 Prev | Next Part: 172466 *Qty: 40 LOWER CUP $47.79
Location: 8 Prev | Next Part: 176437R *Qty: 24 INTAKE VALVE GUIDE Call
Location: 8 Prev | Next Part: 172452 *Qty: 24 INTAKE VALVE GUIDE -OVERSIZED $32.07
Location: 9 Prev | Next Part: 172453 *Qty: 16 EXHAUST VALVE GUIDE -OVERSIZED Call
Location: 9 Prev | Next Part: 176438R *Qty: 16 EXHAUST VALVE GUIDE Call
Location: 10 Prev | Next Part: 6179281 *Qty: 24 INTAKE VALVE SEAT $275.55
Location: 11 Prev | Next Part: 175157 *Qty: 24 INTAKE VALVE $177.32
Location: 12 Prev | Next Part: 6173433 *Qty: 16 EXHAUST VALVE SEAT $22.50
Location: 13 Prev | Next Part: 157988R *Qty: 16 EXHAUST VALVE Call
Location: 14 Prev | Next Part: 206081 *Qty: 1 COMPLETE L.H. EXHAUST CAM SHAFT $9,887.01
Location: 15 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 16 Prev | Next Part: 190042 *Qty: 2 EXHAUST PHASE VARIATOR $286.43
Location: 17 Prev | Next Part: 206080 *Qty: 1 COMPLETE L.H. INDUCTION DISTRIBUTION CAM SHAFT $1,186.94
Location: 18 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 19 Prev | Next Part: 176101 *Qty: 2 BUSHING $144.16
Location: 20 Prev | Next Part: 206079 *Qty: 1 COMPLETE R.H. EXHAUST CAM SHAFT Call
Location: 21 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 22 Prev | Next Part: 206078 *Qty: 1 COMPLETE R.H. INDUCTION DISTRIBUTION CAM SHAFT $1,186.94
Location: 23 Prev | Next Part: 10269550 *Qty: 1 THREADED PLUG $0.90
Location: 24 Prev | Next Part: 178446 *Qty: 1 L.H. COVER -Not as spare part replaced by 180305 Call
Location: 24 Prev | Next Part: 180305 *Qty: 1 L.H. COVER -Replaces 178446 $139.27
Location: 25 Prev | Next Part: 169736 *Qty: 1 R.H. COVER $139.27
Location: 26 Prev | Next Part: 104339 *Qty: 2 SPACER $5.61
Location: 27 Prev | Next Part: 167266 *Qty: 4 SCREW $1.44
Location: 28 Prev | Next Part: 156839 *Qty: 2 SCREW $16.17
Location: 29 Prev | Next Part: 12604274 *Qty: 8 WASHER $0.90
Location: 30 Prev | Next Part: 156829 *Qty: 2 SCREW $1.26

* Quantity shown indicates the number of pieces used in the diagram.
