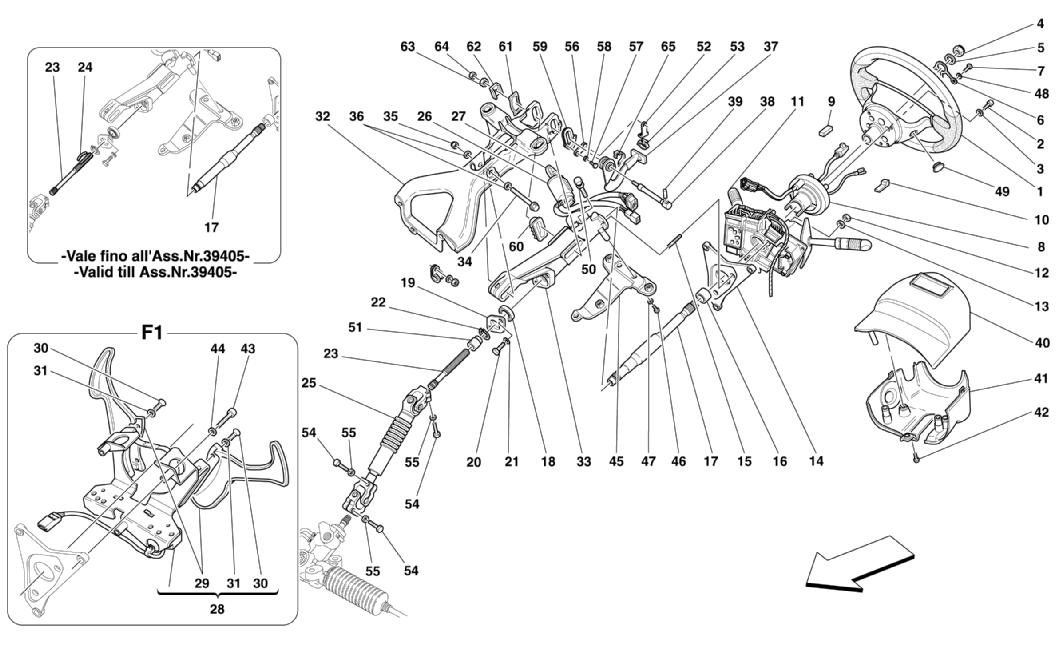

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66203904 *Qty: 0 VOLANTE GUIDA AIRBAG-P.CREMA 3997 Call
Location: 1 Prev | Next Part: 66203925 *Qty: 0 VOLANTE GUIDA AIRBAG-P.BORDEAUX 4481 Call
Location: 1 Prev | Next Part: 66203930 *Qty: 0 Description not available Call
Location: 1 Prev | Next Part: 66203900 *Qty: 0

STEERING WHEEL (W/O AIRBAG) BLACK

$4,405.81
Location: 1 Prev | Next Part: 66203917 *Qty: 0 VOLANTE GUIDA AIRBAG-P.GRIGIO S.4302 Call
Location: 1 Prev | Next Part: 66203928 *Qty: 0 VOLANTE GUIDA AIRBAG-P.C.ZUCCH.A4577 Call
Location: 1 Prev | Next Part: 66203902 *Qty: 0 VOLANTE GUIDA AIRBAG-P.BLU SCU.3282 Call
Location: 1 Prev | Next Part: 66203919 *Qty: 0 VOLANTE GUIDA AIRBAG-P.CHARCOAL 4304 Call
Location: 1 Prev | Next Part: 66203905 *Qty: 0 VOLANTE GUIDA AIRBAG-P.BEIGE 4208 Call
Location: 1 Prev | Next Part: 66203929 *Qty: 0 VOLANTE GUIDA AIRBAG-P.CUOIO 4609 $4,405.81
Location: 1 Prev | Next Part: 66203927 *Qty: 0 VOLANTE GUIDA AIRBAG-P.SABBIA A4310 Call
Location: 1 Prev | Next Part: 66203931 *Qty: 0 Description not available Call
Location: 2 Prev | Next Part: 13271914 *Qty: 3 SCREW $0.90
Location: 3 Prev | Next Part: 10615274 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: 101648 *Qty: 1 NUT $4.16
Location: 5 Prev | Next Part: 10730921 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 157639 *Qty: 1 SPRING $6.19
Location: 7 Prev | Next Part: 11021111 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 169471 *Qty: 1 SPIRAL CONTACT $966.28
Location: 9 Prev | Next Part: 163816 *Qty: 1 RESISTOR FOR SPIRAL CONTACT $36.30
Location: 10 Prev | Next Part: 135355 *Qty: 1 CONNECTOR $0.90
Location: 11 Prev | Next Part: 177585 *Qty: 1 UNHOOK DEVIATION ASSEMBLY -For gas lamps head light $508.52
Location: 11 Prev | Next Part: 178993 *Qty: 1 UNHOOK DEVIATION ASSEMBLY -For normal head light $542.97
Location: 12 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 176360 *Qty: 1 BRACKET $38.57
Location: 15 Prev | Next Part: 11001424 *Qty: 2 STUD Call
Location: 16 Prev | Next Part: 171539 *Qty: 1 ROLLER BEARING $128.73
Location: 17 Prev | Next Part: 183994 *Qty: 1 COLUMN UPPER SHAFT -Valid from Ass. Nr. 39406 $1,276.89
Location: 17 Prev | Next Part: 171526 *Qty: 1 COLUMN UPPER SHAFT -Valid till Ass. Nr. 39405 $414.99
Location: 18 Prev | Next Part: 171540 *Qty: 1 BALL BEARING $31.11
Location: 19 Prev | Next Part: 177645 *Qty: 1 PLATE $108.40
Location: 20 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 11067376 *Qty: 1 SEEGER RING $2.21
Location: 23 Prev | Next Part: 183993 *Qty: 1 COLUMN LOWER SHAFT -Valid from Ass. Nr. 39406 $893.79
Location: 23 Prev | Next Part: 171507 *Qty: 1 COLUMN LOWER SHAFT -Valid till Ass. Nr. 39405 $3,108.64
Location: 24 Prev | Next Part: 171520 *Qty: 1 SPRING -Valid till Ass. Nr. 39405 $7.65
Location: 25 Prev | Next Part: 171528 *Qty: 1 STEERING CARDANIC TRASMISSION $2,481.43
Location: 26 Prev | Next Part: 179567 *Qty: 1 LOCKS SET COMPLETED WITH STEERING LOCK AND KEY Call
Location: 27 Prev | Next Part: 185451 *Qty: 0 BLANK KEY -Valid from Ass. Nr. 42147 Call
Location: 27 Prev | Next Part: 181941 *Qty: 0 BLANK KEY -Valid till Ass. Nr. 42146 Call
Location: 28 Prev | Next Part: 176335 *Qty: 1 F1 GEARBOX CONTROL LEVERS ASSEMBLY -Valid for F1 $2,035.72
Location: 29 Prev | Next Part: 182154 *Qty: 1 COUPLE LEVERS -Valid for F1 $672.79
Location: 30 Prev | Next Part: 13308977 *Qty: 4 SCREW -Valid for F1 Call
Location: 31 Prev | Next Part: 12606673 *Qty: 4 WASHER -Valid for F1 Call
Location: 32 Prev | Next Part: 171505 *Qty: 1 STEERING COLUMN SUPPORT BRACKET -Not for GD $2,233.98
Location: 32 Prev | Next Part: 171546 *Qty: 1 STEERING COLUMN SUPPORT BRACKET -Valid for GD Call
Location: 33 Prev | Next Part: 171516 *Qty: 1 COLUMN SUPPORT $116.92
Location: 34 Prev | Next Part: 180632 *Qty: 1 SCREW $15.78
Location: 35 Prev | Next Part: 104030 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 12625224 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 65993328 *Qty: 0 LEVA BLOCC.PIANTONE -P.C.ZUCCH.A4577 Call
Location: 37 Prev | Next Part: 65993304 *Qty: 0 LEVA BLOCC.PIANTONE -P.CREMA 3997 Call
Location: 37 Prev | Next Part: 65993325 *Qty: 0 LEVA BLOCC.PIANTONE -P.BORDEAUX 4481 Call
Location: 37 Prev | Next Part: 65993330 *Qty: 0 Description not available Call
Location: 37 Prev | Next Part: 65993305 *Qty: 0 LEVA BLOCC.PIANTONE -P.BEIGE 4208 Call
Location: 37 Prev | Next Part: 65993302 *Qty: 0 LEVA BLOCC.PIANTONE -P.BLU SCU.3282 Call
Location: 37 Prev | Next Part: 65993327 *Qty: 0 LEVA BLOCC.PIANTONE -P.SABBIA A4310 Call
Location: 37 Prev | Next Part: 65993319 *Qty: 0 LEVA BLOCC.PIANTONE -P.CHARCOAL 4304 Call
Location: 37 Prev | Next Part: 65993331 *Qty: 0 Description not available Call
Location: 37 Prev | Next Part: 65993329 *Qty: 0 Description not available Call
Location: 37 Prev | Next Part: 65993300 *Qty: 0 LEVA BLOCC.PIANTONE CPL.DI RIVESTIM. Call
Location: 37 Prev | Next Part: 65993317 *Qty: 0 LEVA BLOCC.PIANTONE -P.GRIGIO S.4302 Call
Location: 38 Prev | Next Part: 171503 *Qty: 1 PIN FOR LEVER $66.26
Location: 39 Prev | Next Part: 10336630 *Qty: 1 PIN $126.71
Location: 40 Prev | Next Part: 65164000 *Qty: 1 UPPER COVER -Not for F1 Call
Location: 40 Prev | Next Part: 65583200 *Qty: 1 UPPER COVER -Valid for F1 Call
Location: 41 Prev | Next Part: 65310600 *Qty: 1 LOWER COVER -Valid for F1 $87.69
Location: 41 Prev | Next Part: 64014900 *Qty: 1 LOWER COVER -Not for F1 Call
Location: 42 Prev | Next Part: 15960507 *Qty: 2 SCREW $0.93
Location: 43 Prev | Next Part: 13274611 *Qty: 3 SCREW -Valid for F1 $0.90
Location: 44 Prev | Next Part: 12601174 *Qty: 3 WASHER -Valid for F1 $0.90
Location: 45 Prev | Next Part: 65164200 *Qty: 1 BRACKET $21.94
Location: 46 Prev | Next Part: 13274277 *Qty: 3 SCREW $0.90
Location: 47 Prev | Next Part: 12637878 *Qty: 3 WASHER $0.90
Location: 48 Prev | Next Part: 10615274 *Qty: 2 WASHER $0.90
Location: 49 Prev | Next Part: 185486 *Qty: 2 PLUG $4.70
Location: 50 Prev | Next Part: 172563 *Qty: 1 ANTITHEFT FIXING SCREW $3.15
Location: 51 Prev | Next Part: 183995 *Qty: 1 RING NUT -Valid from Ass. Nr. 39406 $63.79
Location: 52 Prev | Next Part: 177977 *Qty: 1 SMALL PLATE $22.50
Location: 53 Prev | Next Part: 178430 *Qty: 1 FIXING CLIP $0.90
Location: 54 Prev | Next Part: 192229 *Qty: 3 HEXAGONAL SCREW $20.72
Location: 55 Prev | Next Part: 129230 *Qty: 3 WASHER Call
Location: 56 Prev | Next Part: 171523 *Qty: 1 PLATE $34.17
Location: 57 Prev | Next Part: 10977724 *Qty: 2 SCREW $0.90
Location: 58 Prev | Next Part: 11181574 *Qty: 2 WASHER $0.90
Location: 59 Prev | Next Part: 171544 *Qty: 1 LEVER SIDE GUIDE SHOE $111.26
Location: 60 Prev | Next Part: 171501 *Qty: 1 FIXED TENSION SLIDE $122.99
Location: 61 Prev | Next Part: 171502 *Qty: 1 SPRING FOR GUIDE SHOE $61.80
Location: 62 Prev | Next Part: 171529 *Qty: 1 MOBILE GUIDE SHOE $123.62
Location: 63 Prev | Next Part: 171542 *Qty: 1 NUT $8.73
Location: 64 Prev | Next Part: 147985 *Qty: 1 NUT $0.90
Location: 65 Prev | Next Part: 171531 *Qty: 1 PIN RETAINING SPRING $51.78

* Quantity shown indicates the number of pieces used in the diagram.
