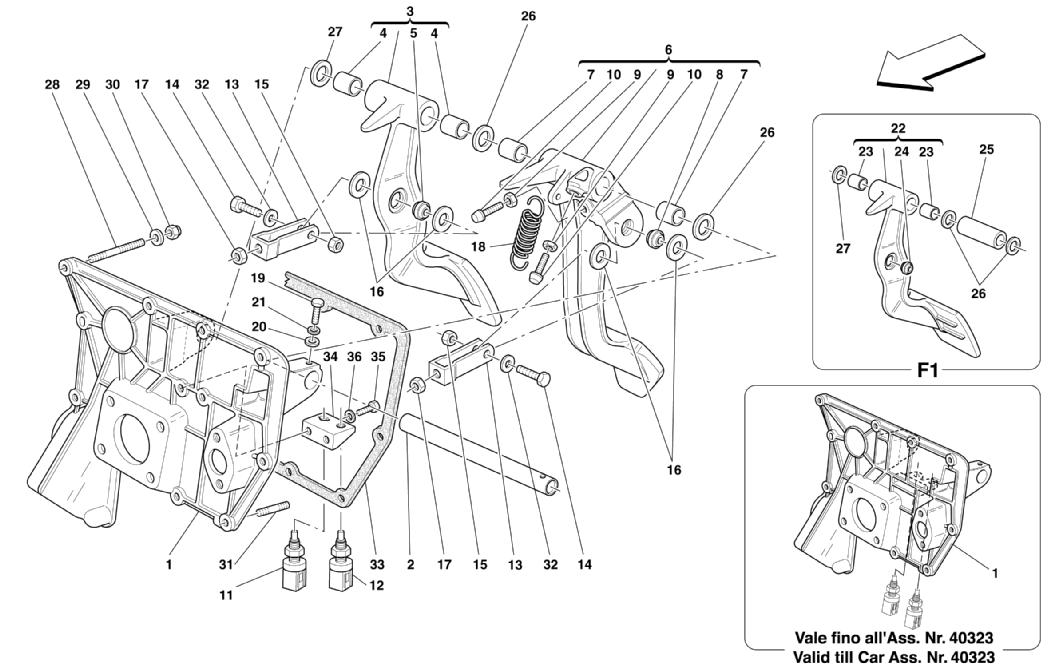

PEDALS -VALID FOR RHD

Go to Split View

PEDALS -VALID FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176168 *Qty: 1 PEDALS SUPPORT -Valid till Ass. Nr. 40323 Call
Location: 1 Prev | Next Part: 184388 *Qty: 1 PEDALS SUPPORT -Valid from Ass. Nr. 40324 Call
Location: 2 Prev | Next Part: 177120 *Qty: 1 PEDALS SUPPORT PIN Call
Location: 3 Prev | Next Part: 177118 *Qty: 1 COMPLETE BRAKE PEDAL -Not for F1 Call
Location: 4 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Not for F1 $3.81
Location: 5 Prev | Next Part: 176475 *Qty: 1 BALL JOINT -Not for F1 $185.43
Location: 6 Prev | Next Part: 177119 *Qty: 1 COMPLETE CLUTCH PEDAL -Not for F1 Call
Location: 7 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Not for F1 $3.81
Location: 8 Prev | Next Part: 176475 *Qty: 1 BALL JOINT -Not for F1 $185.43
Location: 9 Prev | Next Part: 16102314 *Qty: 2 NUT -Not for F1 $0.90
Location: 10 Prev | Next Part: 187014 *Qty: 2 PEDAL ADJUSTEMENT PIN -Not for F1 $42.71
Location: 10 Prev | Next Part: 144011 *Qty: 2 PEDAL ADJUSTEMENT PIN -Not for F1 -Not as spare part -Replaced by 187014 $5.52
Location: 11 Prev | Next Part: 133555 *Qty: 1 PUSH-BUTTON SWITCH $111.55
Location: 12 Prev | Next Part: 133555 *Qty: 1 PUSH-BUTTON SWITCH -Not for F1 $111.55
Location: 13 Prev | Next Part: 176471 *Qty: 2 FORK -Q.ty 1 for F1 $122.50
Location: 14 Prev | Next Part: 16043724 *Qty: 2 SCREW -Q.ty 1 for F1 $0.90
Location: 15 Prev | Next Part: 147985 *Qty: 2 NUT -Q.ty 1 for F1 $0.90
Location: 16 Prev | Next Part: 176522 *Qty: 4 PLASTIC WASHER -Q.ty 2 for F1 $21.47
Location: 17 Prev | Next Part: 16102314 *Qty: 2 NUT -Q.ty 1 for F1 $0.90
Location: 18 Prev | Next Part: 101305 *Qty: 1 RETUTN SPRING FOR PEDAL -Not for F1 $5.99
Location: 19 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 20 Prev | Next Part: 14488624 *Qty: 1 WASHER -Not as spare part now -Replaced by 10519424 $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 178511 *Qty: 1 COMPLETE BRAKE PEDAL -Valid for F1 $702.31
Location: 23 Prev | Next Part: 103163 *Qty: 2 SELF-LUBRICATING BUSHING -Valid for F1 $3.81
Location: 24 Prev | Next Part: 176475 *Qty: 1 BALL JOINT -Valid for F1 $185.43
Location: 25 Prev | Next Part: 178496 *Qty: 1 SPACER -Valid for F1 Call
Location: 26 Prev | Next Part: 113836 *Qty: 2 WASHER $1.14
Location: 27 Prev | Next Part: 106083 *Qty: 1 SPACER WASHER -Th. 1mm $0.90
Location: 27 Prev | Next Part: 113833 *Qty: 1 SPACER WASHER -Th. 1,1mm -Possible fitting $3.22
Location: 27 Prev | Next Part: 113835 *Qty: 1 SPACER WASHER -Th. 1,3mm -Possible fitting $0.90
Location: 27 Prev | Next Part: 113836 *Qty: 1 SPACER WASHER -Th. 1,4mm -Possible fitting $1.14
Location: 27 Prev | Next Part: 113834 *Qty: 1 SPACER WASHER -Th. 1,2mm -Possible fitting $3.22
Location: 28 Prev | Next Part: 13517524 *Qty: 2 STUD $4.66
Location: 29 Prev | Next Part: 12638524 *Qty: 11 WASHER $0.90
Location: 30 Prev | Next Part: 104030 *Qty: 11 NUT $0.90
Location: 31 Prev | Next Part: 13516924 *Qty: 9 STUD $3.01
Location: 32 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 177131 *Qty: 1 PEDALS SUPPORT GASKET $19.09
Location: 34 Prev | Next Part: 186401 *Qty: 1 SMALL PLATE -Valid from Ass. Nr. 40324 Call
Location: 35 Prev | Next Part: 16043224 *Qty: 2 SCREW -Valid from Ass. Nr. 40324 $0.90
Location: 36 Prev | Next Part: 127496 *Qty: 2 WASHER -Valid from Ass. Nr. 40324 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
