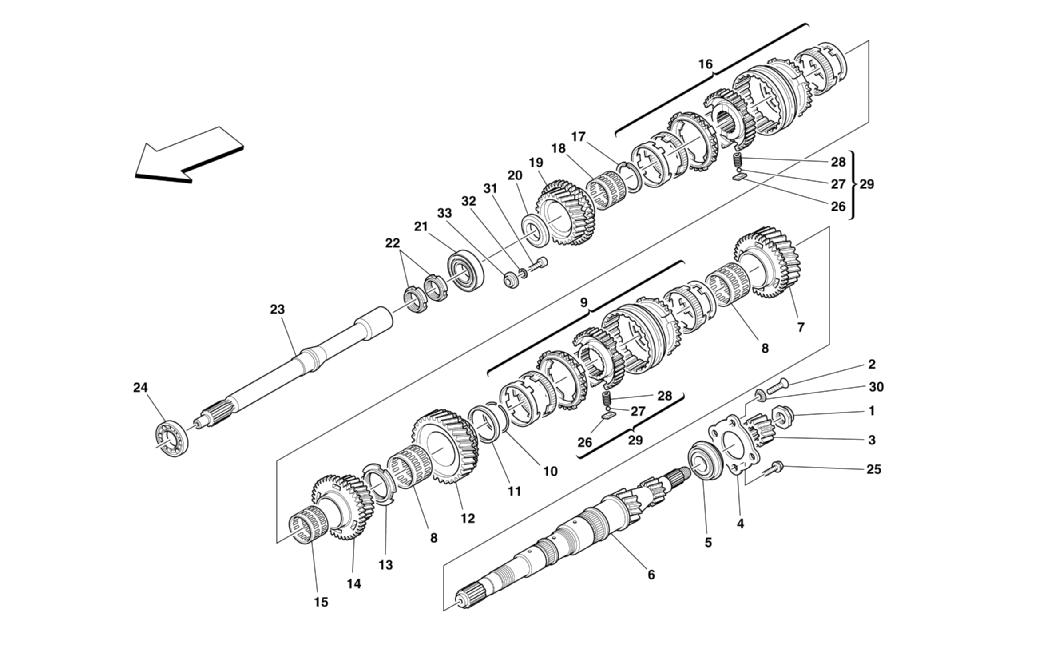

MAIN SHAFT GEARS

Go to Split View

MAIN SHAFT GEARS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183967 *Qty: 1 RING NUT $32.51
Location: 2 Prev | Next Part: 14442027 *Qty: 2 SCREW $2.19
Location: 3 Prev | Next Part: 183966 *Qty: 1 REVERSE DRIVING GEAR $429.01
Location: 4 Prev | Next Part: 183984 *Qty: 1 REAR PLATE $13.00
Location: 5 Prev | Next Part: 184019 *Qty: 1 BALL BEARING $100.04
Location: 6 Prev | Next Part: 183964 *Qty: 1 MAIN SHAFT $2,127.57
Location: 7 Prev | Next Part: 183949 *Qty: 1 PINION FOR 5th GEAR $1,009.65
Location: 8 Prev | Next Part: 184015 *Qty: 2 ROLLER CAGE $52.64
Location: 9 Prev | Next Part: 185166 *Qty: 1 5th AND 6th GEAR COMPLETE SYNCHRONIZER $735.92
Location: 10 Prev | Next Part: 184011 *Qty: 1 FLEXIBLE RING $11.15
Location: 11 Prev | Next Part: 183970 *Qty: 1 SPACER FOR PINION FOR 6th GEAR $87.42
Location: 12 Prev | Next Part: 183950 *Qty: 1 PINION FOR 6th GEAR $1,152.69
Location: 13 Prev | Next Part: 184010 *Qty: 1 RING $128.43
Location: 14 Prev | Next Part: 183947 *Qty: 1 PINION FOR 3rd GEAR $1,591.82
Location: 15 Prev | Next Part: 184014 *Qty: 1 ROLLER CAGE $23.01
Location: 16 Prev | Next Part: 185165 *Qty: 1 3rd AND 4th GEAR COMPLETE SYNCHRONIZER Call
Location: 17 Prev | Next Part: 184042 *Qty: 1 FLEXIBLE RING $16.88
Location: 18 Prev | Next Part: 184005 *Qty: 1 ROLLER CAGE $25.95
Location: 19 Prev | Next Part: 183948 *Qty: 1 PINION FOR 4th GEAR $1,657.41
Location: 20 Prev | Next Part: 183973 *Qty: 1 WASHER $52.44
Location: 21 Prev | Next Part: 184021 *Qty: 1 ROLLER BEARING $181.24
Location: 22 Prev | Next Part: 184012 *Qty: 2 RING NUT $34.92
Location: 23 Prev | Next Part: 183965 *Qty: 1 CLUTCH SHAFT $445.04
Location: 24 Prev | Next Part: 184013 *Qty: 1 BALL BEARING $32.48
Location: 25 Prev | Next Part: 16287124 *Qty: 2 SCREW $1.44
Location: 26 Prev | Next Part: 184991 *Qty: 6 PAD FOR SYNCHRONIZER -Not as spare part -Replaced by 188320 -See ref. 29 Call
Location: 27 Prev | Next Part: 184997 *Qty: 6 BALL -Not as spare part -Replaced by 188320 -See ref. 29 Call
Location: 28 Prev | Next Part: 188320 *Qty: 6 SPRING -Not as spare part -Replaced by 188320 -See ref. 29 $13.62
Location: 29 Prev | Next Part: 188320 *Qty: 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $13.62
Location: 30 Prev | Next Part: 12606979 *Qty: 2 WASHER $12.55
Location: 31 Prev | Next Part: 14305720 *Qty: 1 SCREW Superseded
Location: 32 Prev | Next Part: 10569274 *Qty: 1 WASHER Superseded
Location: 33 Prev | Next Part: 183985 *Qty: 1 BUSHING $15.49

* Quantity shown indicates the number of pieces used in the diagram.
