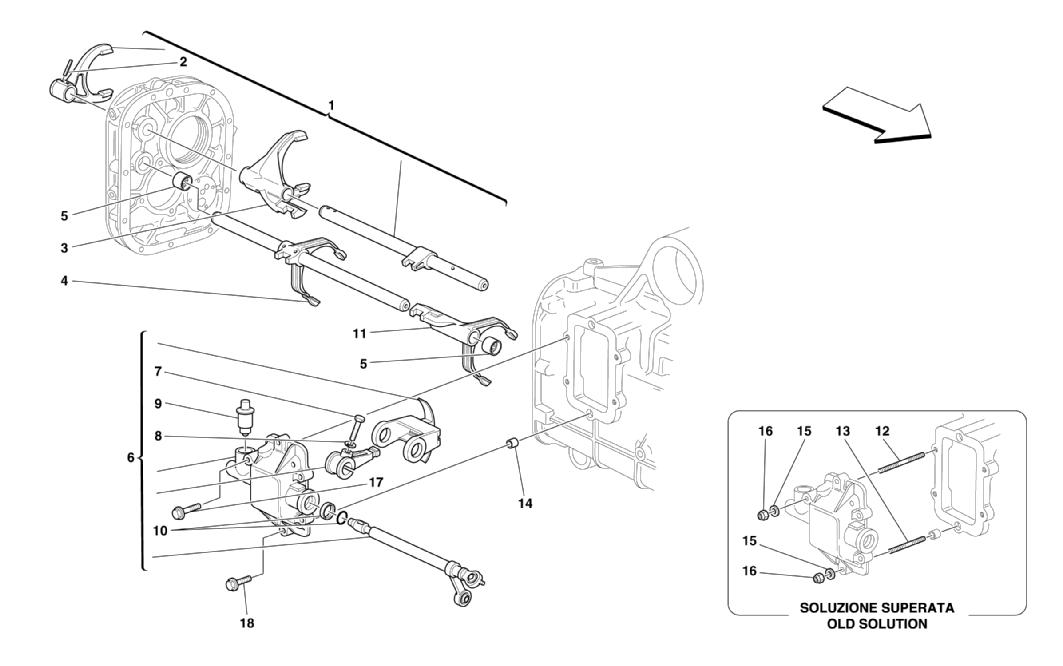

INSIDE GEARBOX CONTROLS

Go to Split View

INSIDE GEARBOX CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183952 *Qty: 1 CONTROL ROD FOR REVERSE $789.15
Location: 2 Prev | Next Part: 13910470 *Qty: 1 FLEXIBLE PIN $2.88
Location: 3 Prev | Next Part: 183953 *Qty: 1 CONTROL FORK FOR 1st AND 2nd GEAR $656.49
Location: 4 Prev | Next Part: 183955 *Qty: 1 ROD FOR 5th AND 6th GEAR $376.21
Location: 5 Prev | Next Part: 183982 *Qty: 2 BEARING BUSH $38.81
Location: 6 Prev | Next Part: 184022 *Qty: 1 COMPLETE OUTER CONTROL -Not for F1 $2,425.70
Location: 7 Prev | Next Part: 185216 *Qty: 1 SCREW -Not for F1 $0.90
Location: 8 Prev | Next Part: 10516679 *Qty: 1 WASHER -Not for F1 Call
Location: 9 Prev | Next Part: 184990 *Qty: 1 ROD-TIP FOR GEARBOX CONTROL SHAFT -Not for F1 $55.63
Location: 10 Prev | Next Part: 174915 *Qty: 1 RING AND SCRAPER RING -Not for F1 $27.19
Location: 11 Prev | Next Part: 184646 *Qty: 1 CONTROL FORK FOR 3rd AND 4th GEAR Call
Location: 12 Prev | Next Part: 11501424 *Qty: 1 STUD -Not for F1 $4.55
Location: 13 Prev | Next Part: 11500724 *Qty: 5 STUD -Not for F1 $1.72
Location: 14 Prev | Next Part: 145992 *Qty: 2 CENTERING DOWEL -Not for F1 $142.38
Location: 15 Prev | Next Part: 11194377 *Qty: 6 WASHER -Not for F1 $0.90
Location: 16 Prev | Next Part: 15896214 *Qty: 6 NUT -Not for F1 $0.90
Location: 17 Prev | Next Part: 16286721 *Qty: 1 SCREW -Not for F1 $1.42
Location: 18 Prev | Next Part: 16286321 *Qty: 5 SCREW -Not for F1 $3.16

* Quantity shown indicates the number of pieces used in the diagram.
