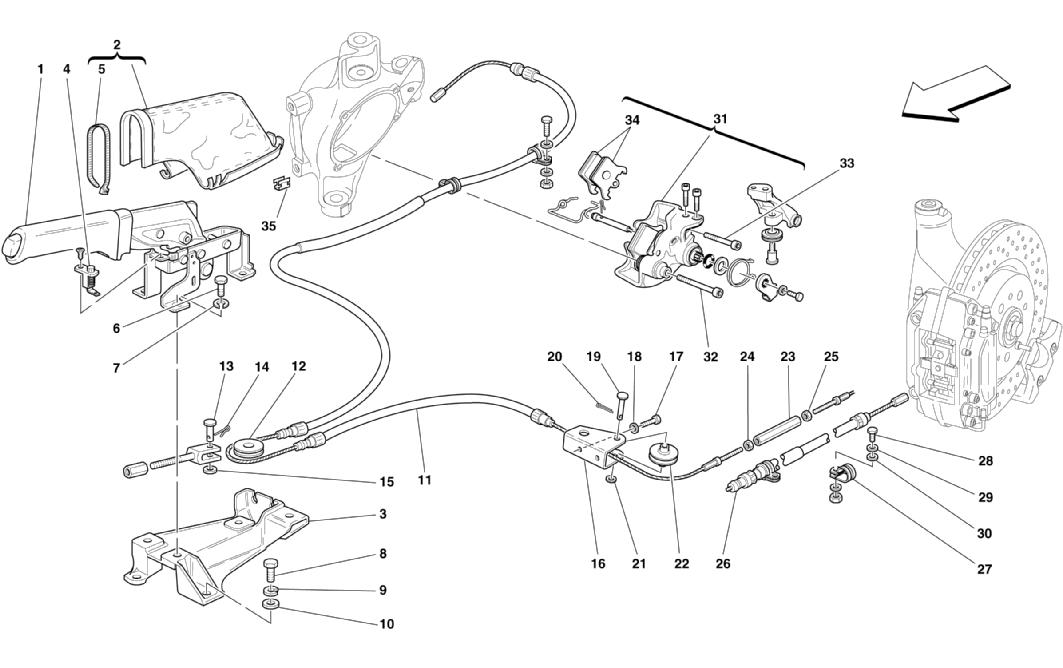

HAND-BRAKE CONTROL

Go to Split View

HAND-BRAKE CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 173526 *Qty: 1 HAND BRAKE LEVER Call
Location: 2 Prev | Next Part: 65933727 *Qty: 0 Description not available Call
Location: 2 Prev | Next Part: 65933731 *Qty: 0 Description not available Call
Location: 2 Prev | Next Part: 65933704 *Qty: 0 RIV.CPL.LEVA F.MANO -P.CREMA 3 Call
Location: 2 Prev | Next Part: 65933725 *Qty: 0 Description not available Call
Location: 2 Prev | Next Part: 65933730 *Qty: 0 Description not available Call
Location: 2 Prev | Next Part: 65933702 *Qty: 0 RIV.CPL.LEVA F.MANO -P.BLU SCU Call
Location: 2 Prev | Next Part: 65933700 *Qty: 0 HAND BRAKE LEVER COVER BLACK $626.89
Location: 2 Prev | Next Part: 65933719 *Qty: 0 RIV.CPL.LEVA F.MANO -P.CHARCOA Call
Location: 2 Prev | Next Part: 65933717 *Qty: 0 RIV.CPL.LEVA F.MANO -P.GRIGIO Call
Location: 2 Prev | Next Part: 65933729 *Qty: 0 RIVESTIMENTO IN PELLE"CUOIO"VM Call
Location: 2 Prev | Next Part: 65933728 *Qty: 0 RIVEST. LEVA FRENO M-P.C.ZUCCH Call
Location: 2 Prev | Next Part: 65933705 *Qty: 0 RIV.CPL.LEVA F.MANO -P.BEIGE 4 Call
Location: 3 Prev | Next Part: 173401 *Qty: 1 LEVER FOR SHAFT FIXING $83.83
Location: 4 Prev | Next Part: 176118 *Qty: 1 MICRO-SWITCH $60.82
Location: 5 Prev | Next Part: 145854 *Qty: 3 CLAMP $0.90
Location: 6 Prev | Next Part: 16043224 *Qty: 3 SCREW $0.90
Location: 7 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 16043534 *Qty: 3 SCREW -Not as spare part -Replaced by 16043434 $0.90
Location: 8 Prev | Next Part: 16043434 *Qty: 3 SCREW $0.90
Location: 9 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 14496524 *Qty: 3 WASHER $0.90
Location: 11 Prev | Next Part: 179293 *Qty: 1 R.H. REAR CABLE $68.49
Location: 12 Prev | Next Part: 122091 *Qty: 1 PULLEY FOR CABLE $9.47
Location: 13 Prev | Next Part: 10050814 *Qty: 1 PIVOT $3.29
Location: 14 Prev | Next Part: 10734201 *Qty: 1 SPLIT PIN -Not as spare part -Replaced by 10734208 Call
Location: 14 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 15 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 176245 *Qty: 1 BRACKET FOR CABLE FIXING $85.60
Location: 17 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 10041214 *Qty: 1 PIVOT $3.69
Location: 20 Prev | Next Part: 10734201 *Qty: 1 SPLIT PIN -Not as spare part -Replaced by 10734208 Call
Location: 20 Prev | Next Part: 10734208 *Qty: 1 SPLIT PIN $0.90
Location: 21 Prev | Next Part: 14496524 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 176261 *Qty: 1 PULLEY FOR CABLE $93.04
Location: 23 Prev | Next Part: 10091014 *Qty: 1 ADJUSTMENT SLEEVE $112.58
Location: 24 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 25 Prev | Next Part: 10727314 *Qty: 1 NUT $0.90
Location: 26 Prev | Next Part: 179292 *Qty: 1 L.H. REAR CABLE $120.79
Location: 27 Prev | Next Part: 10441390 *Qty: 5 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 29 Prev | Next Part: 12605371 *Qty: 3 WASHER $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 31 Prev | Next Part: 228021 *Qty: 1 L.H. CALIPER FOR HAND BRAKE $947.34
Location: 31 Prev | Next Part: 228022 *Qty: 1 R.H. CALIPER FOR HAND BRAKE $947.34
Location: 32 Prev | Next Part: 14308424 *Qty: 1 SCREW $3.90
Location: 33 Prev | Next Part: 14308924 *Qty: 1 SCREW $5.17
Location: 34 Prev | Next Part: 70000937 *Qty: 1 KIT OF HAND BRAKES PADS WITH SPRING $356.81
Location: 35 Prev | Next Part: 65934100 *Qty: 5 FIXING CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
