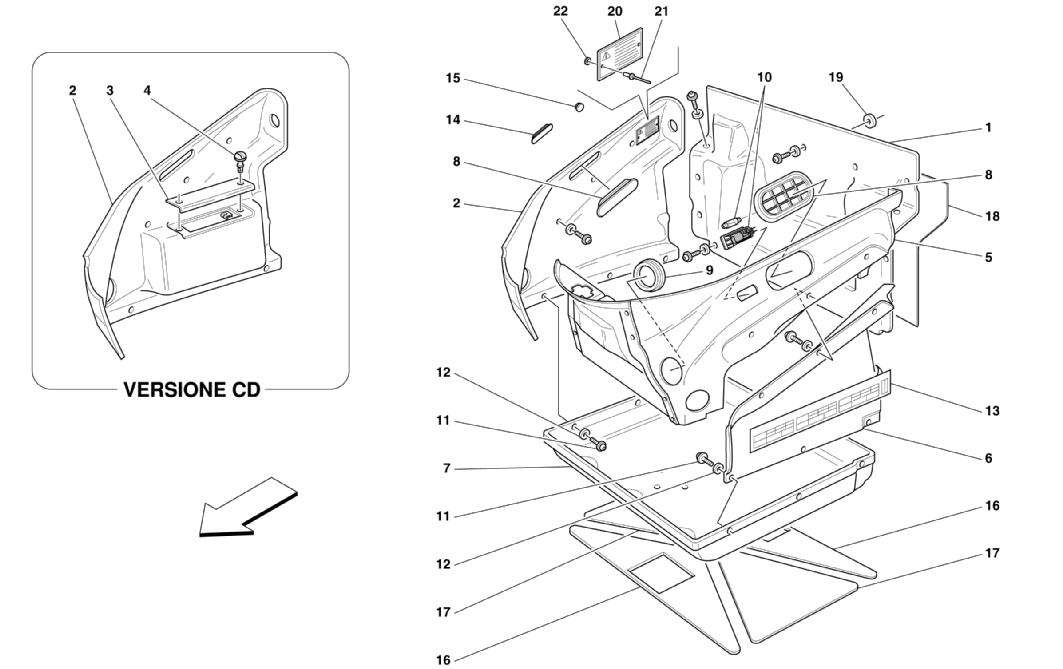

FRONT COMPARTMENT TRIMS

Go to Split View

FRONT COMPARTMENT TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65060500 *Qty: 1 TRUNK COMPARTMENT REAR PANEL $643.17
Location: 2 Prev | Next Part: 65301500 *Qty: 1 R.H. SIDE CARPET TRUNK COMPARTMENT -Valid for cars without CD charger $794.78
Location: 2 Prev | Next Part: 65527100 *Qty: 1 R.H. SIDE CARPET TRUNK COMPARTMENT -Valid for cars with CD charger $658.49
Location: 3 Prev | Next Part: 65544200 *Qty: 1 CD CHARGER DOOR -Valid for cars with CD charger $164.05
Location: 4 Prev | Next Part: 65970500 *Qty: 2 BUTTON WITH PIN -Valid for cars with CD charger $5.08
Location: 5 Prev | Next Part: 65524400 *Qty: 1 L.H. SIDE CARPET TRUNK COMPARTMENT $658.49
Location: 6 Prev | Next Part: 65301600 *Qty: 1 COVER FOR CONTROL UNIT INSPECTION $329.18
Location: 7 Prev | Next Part: 65301400 *Qty: 1 TRUNK COMPARTMENT BOTTOM CARPET $794.78
Location: 8 Prev | Next Part: 62678500 *Qty: 2 PLUG $6.00
Location: 9 Prev | Next Part: 63965800 *Qty: 4 PLUG $7.46
Location: 10 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $16.82
Location: 11 Prev | Next Part: 65933500 *Qty: 10 SCREW -L=15mm $2.24
Location: 11 Prev | Next Part: 66091000 *Qty: 11 SCREW -L=25mm $3.84
Location: 12 Prev | Next Part: 65545900 *Qty: 10 WASHER -Th=0,5mm $4.16
Location: 12 Prev | Next Part: 65841100 *Qty: 11 WASHER -Th=2,5mm $1.44
Location: 13 Prev | Next Part: 168849 *Qty: 1 RELAYS AND FUSES NAMEPLATE $3.46
Location: 14 Prev | Next Part: 65715100 *Qty: 2 PLUG $1.90
Location: 15 Prev | Next Part: 14567487 *Qty: 2 PLUG $0.90
Location: 16 Prev | Next Part: 65527000 *Qty: 2 INSULATION $15.80
Location: 17 Prev | Next Part: 65528500 *Qty: 2 INSULATION $11.00
Location: 18 Prev | Next Part: 66212900 *Qty: 1 WATER PROTECTION CLOTH Call
Location: 19 Prev | Next Part: 65841100 *Qty: 11 WASHER $1.44
Location: 20 Prev | Next Part: 201280 *Qty: 1 PLATE FOR BATTERY CUT-OUT -Valid from Ass. Nr.50514 Call
Location: 21 Prev | Next Part: 14641492 *Qty: 2 RIVET -Valid from Ass. Nr.50514 $0.90
Location: 22 Prev | Next Part: 14498501 *Qty: 2 WASHER -Valid from Ass. Nr.50514 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
