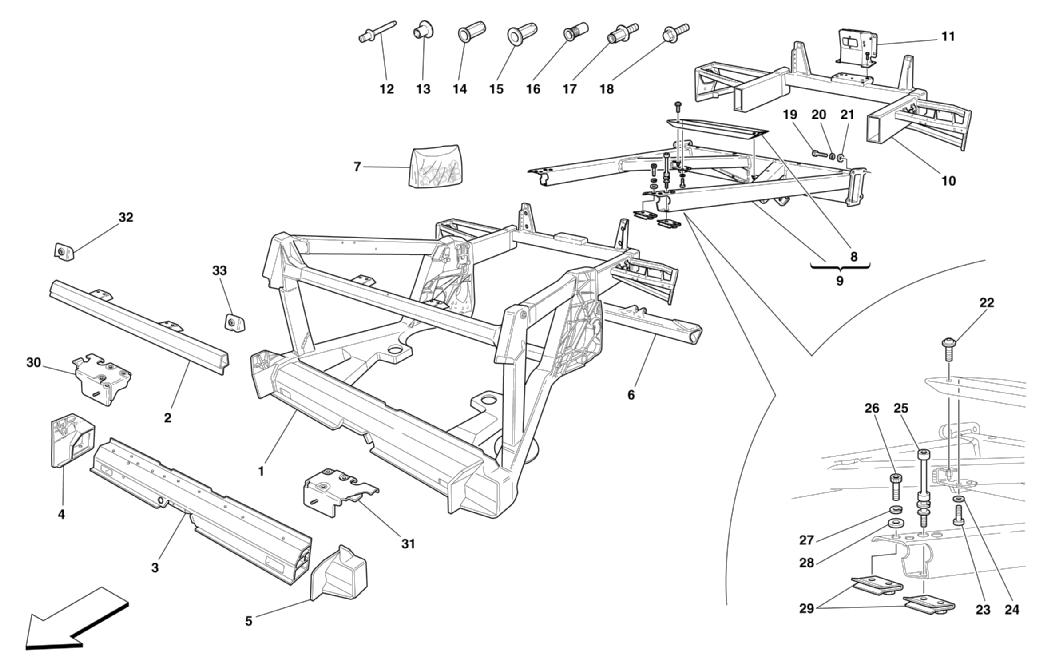

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

Go to Split View

FRAME - REAR ELEMENTS STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66452900 *Qty: 1 COMPLETE REAR FRAME -Not for USA and CDN -Valid from car Nr. 120069 for GS and 120194 for GD Call
Location: 1 Prev | Next Part: 66786800 *Qty: 1 COMPLETE REAR FRAME -Not for USA and CDN -Valid till car Nr. 120068 for GS and 120193 for GD Call
Location: 1 Prev | Next Part: 66453000 *Qty: 1 COMPLETE REAR FRAME -Valid for USA and CDN -Valid from car Nr. 120069 $11,961.29
Location: 1 Prev | Next Part: 65993500 *Qty: 1 COMPLETE REAR FRAME -Not as spare part -Replaced by 66786800 Call
Location: 1 Prev | Next Part: 66451800 *Qty: 1 COMPLETE REAR FRAME -Valid for USA and CDN -Valid till car Nr. 120068 Call
Location: 2 Prev | Next Part: 66451700 *Qty: 1 COMPLETE TAIL REAR WINDOW CROSSPIECE -Valid for USA and CDN Call
Location: 2 Prev | Next Part: 65943000 *Qty: 1 COMPLETE TAIL REAR WINDOW CROSSPIECE -Not for USA and CDN $814.63
Location: 3 Prev | Next Part: 65943100 *Qty: 1 REAR CROSS MEMBER Call
Location: 4 Prev | Next Part: 199984 *Qty: 1 R.H. LOWER REAR CASTING -Valid from car Nr. 138028 Call
Location: 4 Prev | Next Part: 6166260 *Qty: 1 R.H. LOWER REAR CASTING -Valid till car Nr. 138027 Call
Location: 5 Prev | Next Part: 199983 *Qty: 1 L.H. LOWER REAR CASTING -Valid from car Nr. 138028 Call
Location: 5 Prev | Next Part: 6166160 *Qty: 1 L.H. LOWER REAR CASTING -Valid till car Nr. 138027 Call
Location: 6 Prev | Next Part: 65993600 *Qty: 1 COMPLETE LOWER CROSS MEMBER Call
Location: 7 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 8 Prev | Next Part: 166320 *Qty: 1 CROSS MEMBER Call
Location: 9 Prev | Next Part: 65943700 *Qty: 1 COMPLETE REAR REMOVIBLE FRAME $2,499.99
Location: 10 Prev | Next Part: 65942100 *Qty: 1 COMPLETE REAR FRAME Call
Location: 11 Prev | Next Part: 65756200 *Qty: 1 BRACKET FOR ENGINE HOOD BONNETLOCK Call
Location: 12 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 12 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 13 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 14 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 14 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 14 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.60
Location: 14 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.22
Location: 14 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.01
Location: 15 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 16 Prev | Next Part: 179299 *Qty: 0 RIVET M10 BLIND $2.04
Location: 16 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 16 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.79
Location: 16 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 16 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 17 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 18 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 19 Prev | Next Part: 14306374 *Qty: 8 SCREW $0.90
Location: 20 Prev | Next Part: 127496 *Qty: 8 WASHER $0.90
Location: 21 Prev | Next Part: 10519624 *Qty: 8 WASHER $0.90
Location: 22 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 23 Prev | Next Part: 13027024 *Qty: 4 SCREW $0.90
Location: 24 Prev | Next Part: 10523424 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 183554 *Qty: 4 COMPLETE SCREW $15.93
Location: 26 Prev | Next Part: 13028734 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 10519624 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 179269 *Qty: 2 R.H. BRACKET Call
Location: 29 Prev | Next Part: 179268 *Qty: 2 L.H. BRACKET Call
Location: 30 Prev | Next Part: 65719100 *Qty: 1 R.H. BRACKET LOWER FIXING ROLL-BAR $103.43
Location: 31 Prev | Next Part: 65719200 *Qty: 1 L.H. BRACKET LOWER FIXING ROLL-BAR $103.43
Location: 32 Prev | Next Part: 65720500 *Qty: 1 R.H. BRACKET UPPER FIXING ROLL-BAR Call
Location: 33 Prev | Next Part: 65720600 *Qty: 1 L.H. BRACKET UPPER FIXING ROLL-BAR Call

* Quantity shown indicates the number of pieces used in the diagram.
