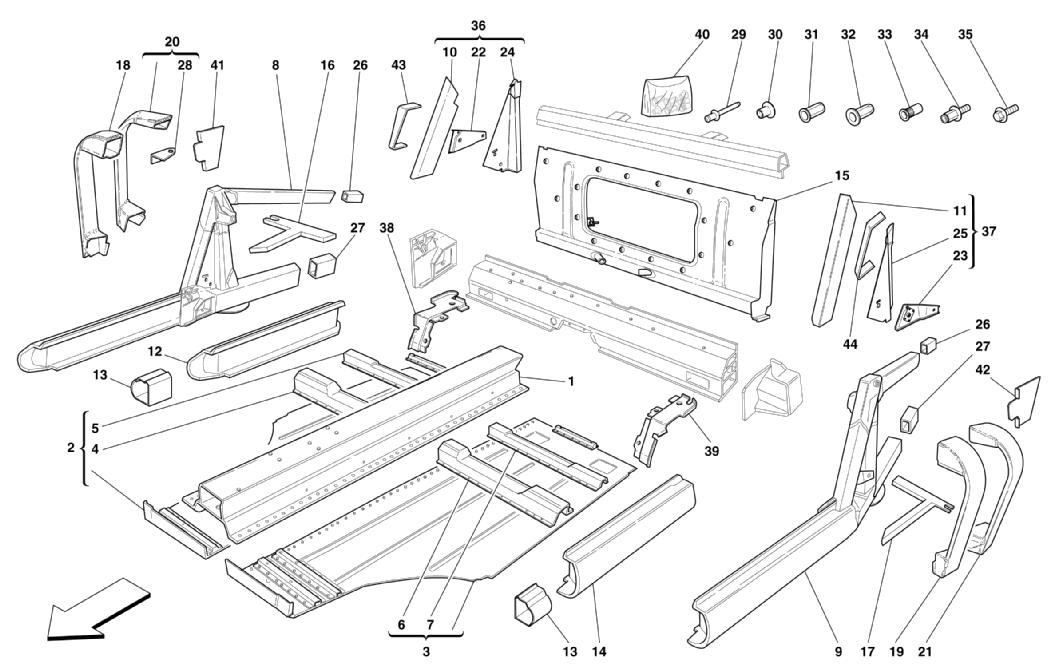

CENTRAL SIDE ELEMENTS AND PLATES

Go to Split View

CENTRAL SIDE ELEMENTS AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65942800 *Qty: 1 COMPLETE TUNNEL Call
Location: 2 Prev | Next Part: 65942600 *Qty: 1 COMPLETE R.H. LATERAL HALF FLOOR -Not for GD Call
Location: 2 Prev | Next Part: 66451500 *Qty: 1 COMPLETE R.H. LATERAL HALF FLOOR -Valid for GD Call
Location: 3 Prev | Next Part: 65942700 *Qty: 1 COMPLETE L.H. LATERAL HALF FLOOR -Not for GD Call
Location: 3 Prev | Next Part: 66451600 *Qty: 1 COMPLETE L.H. LATERAL HALF FLOOR -Valid for GD $3,063.68
Location: 4 Prev | Next Part: 6166250 *Qty: 1 R.H. FRONT CROSS MEMBER $461.61
Location: 5 Prev | Next Part: 6166251 *Qty: 1 R.H. REAR CROSS MEMBER Call
Location: 6 Prev | Next Part: 6166150 *Qty: 1 L.H. FRONT CROSS MEMBER Call
Location: 7 Prev | Next Part: 6166151 *Qty: 1 L.H. REAR CROSS MEMBER $419.64
Location: 8 Prev | Next Part: 65940900 *Qty: 1 R.H. LATERAL REAR CROSSMEMBAR -Valid till car Nr. 127704 Call
Location: 8 Prev | Next Part: 67411000 *Qty: 1 R.H. LATERAL REAR CROSSMEMBAR -Valid from car Nr. 127705 $5,723.92
Location: 9 Prev | Next Part: 67411200 *Qty: 1 L.H. LATERAL REAR CROSSMEMBAR -Valid from car Nr. 127705 Call
Location: 9 Prev | Next Part: 65941000 *Qty: 1 L.H. LATERAL REAR CROSSMEMBAR -Valid till car Nr. 127704 Call
Location: 10 Prev | Next Part: 166232 *Qty: 1 R.H. REINFORCEMENT FRAME Call
Location: 11 Prev | Next Part: 166132 *Qty: 1 L.H. REINFORCEMENT FRAME Call
Location: 12 Prev | Next Part: 67386100 *Qty: 1 R.H. CROSSMEMBER -Valid from car Nr. 127705 $2,366.85
Location: 12 Prev | Next Part: 65942400 *Qty: 1 R.H. CROSSMEMBER -Valid till car Nr. 127704 Call
Location: 13 Prev | Next Part: 181981 *Qty: 0 CORE FOR REPAIR Call
Location: 14 Prev | Next Part: 65942500 *Qty: 1 L.H. CROSSMEMBER -Valid till car Nr. 127704 Call
Location: 14 Prev | Next Part: 67386000 *Qty: 1 L.H. CROSSMEMBER -Valid from car Nr. 127705 $1,361.41
Location: 15 Prev | Next Part: 166343 *Qty: 1 COMPLETE REAR SHIELD Call
Location: 16 Prev | Next Part: 64811000 *Qty: 1 R.H. REAR FIXING FRAME Call
Location: 17 Prev | Next Part: 64811100 *Qty: 1 L.H. REAR FIXING FRAME Call
Location: 18 Prev | Next Part: 65153400 *Qty: 1 R.H. FRONT SIDE MOLDING $189.99
Location: 19 Prev | Next Part: 65153500 *Qty: 1 L.H. FRONT SIDE MOLDING $282.14
Location: 20 Prev | Next Part: 65998100 *Qty: 1 R.H. REAR SIDE MOLDING $272.62
Location: 21 Prev | Next Part: 65998200 *Qty: 1 L.H. REAR SIDE MOLDING $286.42
Location: 22 Prev | Next Part: 64804300 *Qty: 1 R.H. REWINDER FIXING REINFORCEMENT Call
Location: 22 Prev | Next Part: 64803900 *Qty: 1 R.H. REWINDER FIXING REINFORCEMENT -Not as spare part -Replaced by 64804300 Call
Location: 23 Prev | Next Part: 64804400 *Qty: 1 L.H. REWINDER FIXING REINFORCEMENT Call
Location: 23 Prev | Next Part: 64804000 *Qty: 1 L.H. REWINDER FIXING REINFORCEMENT -Not as spare part -Replaced by 64804400 Call
Location: 24 Prev | Next Part: 64803500 *Qty: 1 R.H. LATERAL MOLDING Call
Location: 25 Prev | Next Part: 64803600 *Qty: 1 L.H. LATERAL MOLDING Call
Location: 26 Prev | Next Part: 181980 *Qty: 0 UPPER INNER CORE $41.83
Location: 27 Prev | Next Part: 181979 *Qty: 0 LOWER INNER CORE $41.83
Location: 28 Prev | Next Part: 177542 *Qty: 1 BRACKET FOR OIL RADIATOR Call
Location: 29 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 29 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 30 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 31 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 31 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.26
Location: 31 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 31 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.78
Location: 31 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.04
Location: 32 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 33 Prev | Next Part: 179299 *Qty: 0 RIVET M10 BLIND $2.10
Location: 33 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 33 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 33 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.85
Location: 33 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 34 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 35 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 36 Prev | Next Part: 66464800 *Qty: 1 R.H. PANEL UPPER FRAME Call
Location: 37 Prev | Next Part: 66464900 *Qty: 1 L.H. PANEL UPPER FRAME Call
Location: 38 Prev | Next Part: 65386100 *Qty: 1 R.H. SUPPORT CENTRAL OVERLAP Call
Location: 39 Prev | Next Part: 65386200 *Qty: 1 L.H. SUPPORT CENTRAL OVERLAP Call
Location: 40 Prev | Next Part: 70000950 *Qty: 1 INSERTS KIT FOR REPAIR $1,842.16
Location: 41 Prev | Next Part: 182624 *Qty: 1 R.H. FUEL TANK PROTECTION PLATE Call
Location: 42 Prev | Next Part: 182623 *Qty: 1 L.H. FUEL TANK PROTECTION PLATE Call
Location: 43 Prev | Next Part: 65903600 *Qty: 1 R.H. STRIKER REINFORCEMENT $24.70
Location: 44 Prev | Next Part: 65903700 *Qty: 1 L.H. STRIKER REINFORCEMENT Call

* Quantity shown indicates the number of pieces used in the diagram.
