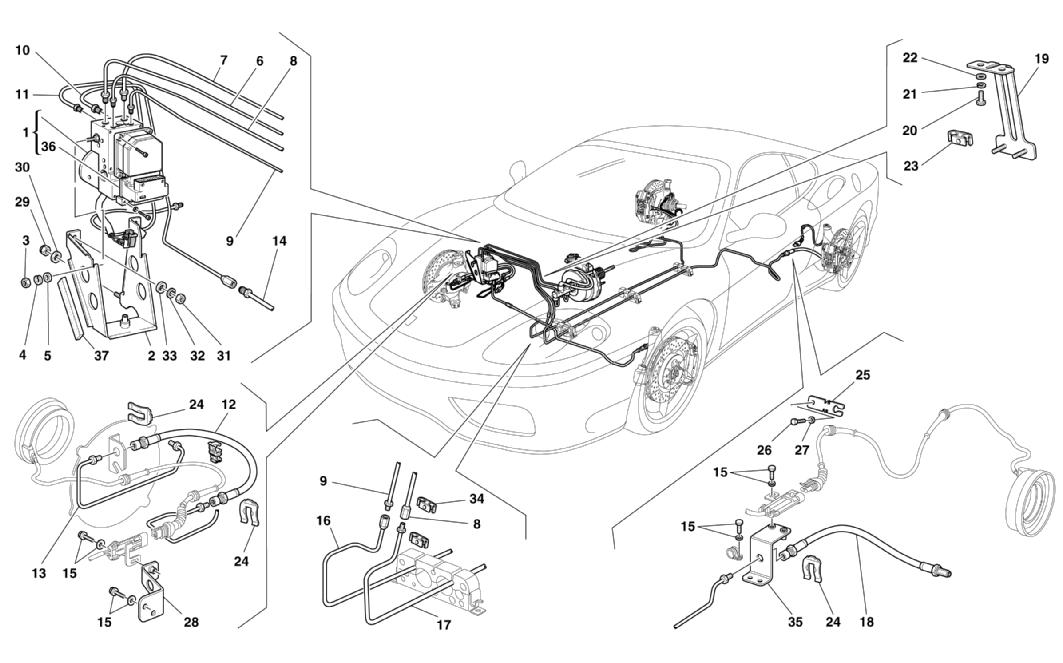

BRAKE SYSTEM -NOT FOR RHD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 168828 *Qty: 1 ABS/ASR HYDRAULIC/ELECTRONIC CONTROL STATION Call
Location: 2 Prev | Next Part: 179412 *Qty: 1 CONTROL STATION SUPPORTING BRACKET $18.71
Location: 3 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 213650 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Valid from Ass. Nr. 57493 Call
Location: 6 Prev | Next Part: 178427 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION -Valid till Ass. Nr. 57492 $22.23
Location: 7 Prev | Next Part: 178426 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Valid till Ass. Nr. 57492 $22.14
Location: 7 Prev | Next Part: 213649 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION -Valid from Ass. Nr. 57493 Call
Location: 8 Prev | Next Part: 180364 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE -Valid till Ass. Nr. 57492 $20.44
Location: 8 Prev | Next Part: 213652 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. INTERMEDIATE PIPE -Valid from Ass. Nr. 57493 Call
Location: 9 Prev | Next Part: 180363 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE -Valid till Ass. Nr. 57492 $10.72
Location: 9 Prev | Next Part: 213651 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. INTERMEDIATE PIPE -Valid from Ass. Nr. 57493 Call
Location: 10 Prev | Next Part: 178463 *Qty: 1 PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE -Valid till Ass. Nr. 57492 Call
Location: 10 Prev | Next Part: 213653 *Qty: 1 PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE -Valid from Ass. Nr. 57493 Call
Location: 11 Prev | Next Part: 164308 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE -Valid till Ass. Nr. 57492 $23.30
Location: 11 Prev | Next Part: 213654 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE -Valid from Ass. Nr. 57493 Call
Location: 12 Prev | Next Part: 116373 *Qty: 2 FRONT HOSE Superseded
Location: 13 Prev | Next Part: 213645 *Qty: 1 PIPE TO R.H. FRONT BRAKE -Valid from Ass. Nr. 57493 Call
Location: 13 Prev | Next Part: 173805 *Qty: 1 PIPE TO L.H. FRONT BRAKE -Valid till Ass. Nr. 57492 $58.39
Location: 13 Prev | Next Part: 213647 *Qty: 1 PIPE TO L.H. FRONT BRAKE -Valid from Ass. Nr. 57493 Call
Location: 13 Prev | Next Part: 173806 *Qty: 1 PIPE TO R.H. FRONT BRAKE -Valid till Ass. Nr. 57492 $58.39
Location: 14 Prev | Next Part: 213648 *Qty: 1 INTERMEDIATE PIPE -Valid from Ass. Nr. 57493 Call
Location: 14 Prev | Next Part: 164309 *Qty: 1 INTERMEDIATE PIPE -Valid till Ass. Nr. 57492 Call
Location: 15 Prev | Next Part: 11625724 *Qty: 8 SCREW WITH WASHER $1.18
Location: 16 Prev | Next Part: 213643 *Qty: 1 PIPE TO R.H. REAR HOSE -Valid from Ass. Nr. 57493 Call
Location: 16 Prev | Next Part: 180361 *Qty: 1 PIPE TO R.H. REAR HOSE -Valid till Ass. Nr. 57492 $174.82
Location: 17 Prev | Next Part: 180362 *Qty: 1 PIPE TO L.H. REAR HOSE -Valid till Ass. Nr. 57492 $33.27
Location: 17 Prev | Next Part: 213644 *Qty: 1 PIPE TO L.H. REAR HOSE -Valid from Ass. Nr. 57493 Call
Location: 18 Prev | Next Part: 118100 *Qty: 2 HOSE Superseded
Location: 19 Prev | Next Part: 177945 *Qty: 1 BRAKES PIPES FIXING BRACKET $6.14
Location: 20 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 14488624 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 169476 *Qty: 2 CLIP $4.55
Location: 24 Prev | Next Part: 116374 *Qty: 8 CLIP $0.90
Location: 25 Prev | Next Part: 179236 *Qty: 2 SUPPORT FOR CABLE -Not as spare part -Replaced by 178938 Call
Location: 25 Prev | Next Part: 178938 *Qty: 2 SUPPORT FOR CABLE $37.70
Location: 26 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 179096 *Qty: 1 L.H. FRONT SUPPORT -Not as spare part now $5.76
Location: 28 Prev | Next Part: 179237 *Qty: 1 R.H. FRONT SUPPORT -Not as spare part now $5.76
Location: 29 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 31 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 169476 *Qty: 4 CLIP $4.55
Location: 35 Prev | Next Part: 178939 *Qty: 2 REAR SUPPORT -Valid till stock exhaustion $48.53
Location: 35 Prev | Next Part: 185283 *Qty: 2 REAR SUPPORT $139.83
Location: 36 Prev | Next Part: 185147 *Qty: 1 ABS/ASR/EBD ELECTRONIC CONTROL STATION $2,870.53
Location: 37 Prev | Next Part: 197149 *Qty: 1 ANTI-VIBRATIONS $0.90

* Quantity shown indicates the number of pieces used in the diagram.
