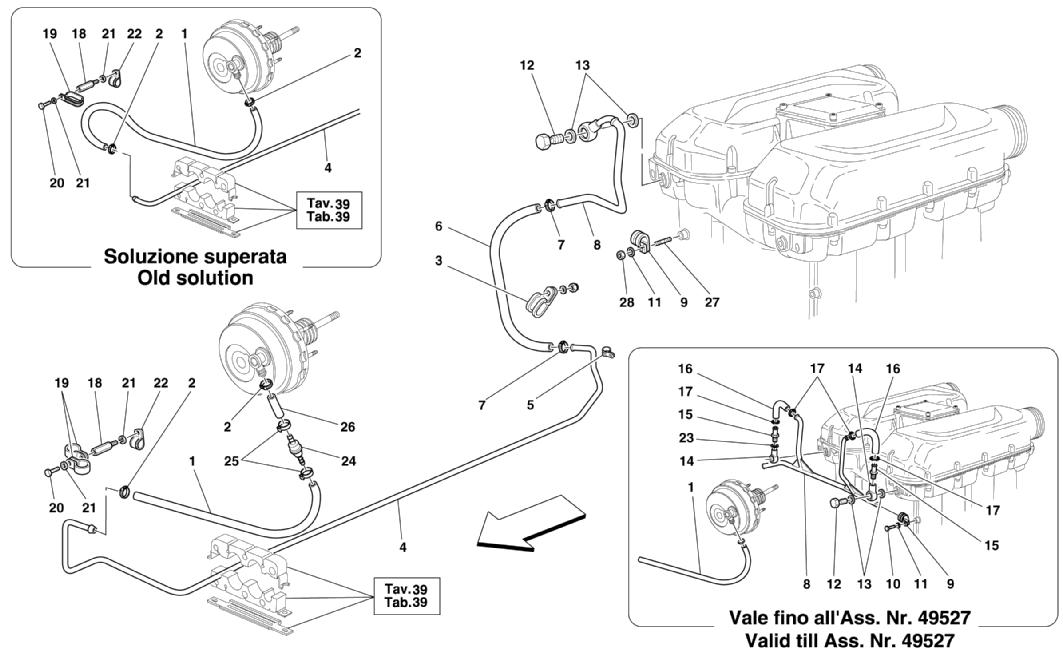

BRAKE BOOSTER SYSTEM

Go to Split View

BRAKE BOOSTER SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 176100 *Qty: 1 RUBBER HOSE TO BRAKE BOOSTER -Valid till Ass. Nr. 35770 $48.72
Location: 1 Prev | Next Part: 177947 *Qty: 1 RUBBER HOSE TO BRAKE BOOSTER -Valid from Ass. Nr. 35771 till Ass. Nr.49527 $46.42
Location: 1 Prev | Next Part: 173842 *Qty: 1 RUBBER HOSE TO BRAKE BOOSTER -Valid from Ass. Nr. 49528 Call
Location: 2 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 3 Prev | Next Part: 61712500 *Qty: 2 BRACKET $2.23
Location: 4 Prev | Next Part: 179322 *Qty: 1 BRAKE BOOSTER UNDERFLOOR TUBE -Valid for GD $80.39
Location: 4 Prev | Next Part: 181727 *Qty: 1 BRAKE BOOSTER UNDERFLOOR TUBE -Valid from Ass. Nr. 35771 -Not as spare part -Replaced by 184979 Call
Location: 4 Prev | Next Part: 184979 *Qty: 1 BRAKE BOOSTER UNDERFLOOR TUBE -Not for GD Call
Location: 5 Prev | Next Part: 10450190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 6 Prev | Next Part: 168386 *Qty: 1 RUBBER HOSE $29.72
Location: 7 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 8 Prev | Next Part: 179414 *Qty: 1 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS -Not as spare part replaced by 182776 Call
Location: 8 Prev | Next Part: 182776 *Qty: 1 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS -Replaces 179414 -Valid till Ass. Nr. 49527 $123.63
Location: 8 Prev | Next Part: 194378 *Qty: 1 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS -Valid from Ass. Nr. 49528 $83.33
Location: 9 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH -Q.ty 1 from Ass. Nr. 49528 $0.90
Location: 10 Prev | Next Part: 10902024 *Qty: 2 SCREW -Valid till Ass. Nr. 49527 $0.90
Location: 11 Prev | Next Part: 12601279 *Qty: 2 WASHER -Q.ty 1 from Ass. Nr. 49528 Superseded
Location: 12 Prev | Next Part: 152417 *Qty: 2 UNION -Q.ty 1 from Ass. Nr. 49528 $115.93
Location: 13 Prev | Next Part: 10259960 *Qty: 4 GASKET -Q.ty 2 from Ass. Nr. 49528 $0.90
Location: 14 Prev | Next Part: 179419 *Qty: 2 SWINGING UNION -Valid till Ass. Nr. 49527 $34.50
Location: 15 Prev | Next Part: 147978 *Qty: 2 NONRETURN VALVE -Valid till Ass. Nr. 49527 $19.14
Location: 16 Prev | Next Part: 179394 *Qty: 2 RUBBER HOSE -Valid till Ass. Nr. 49527 $13.78
Location: 17 Prev | Next Part: 178052 *Qty: 4 CLAMP -Valid till Ass. Nr. 49527 $1.58
Location: 18 Prev | Next Part: 178772 *Qty: 1 STUD $10.67
Location: 19 Prev | Next Part: 61712500 *Qty: 1 BRACKET WITH SHEATH -Valid till Ass. Nr. 35770 $2.23
Location: 19 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH -Valid from Ass. Nr. 35771 $0.90
Location: 20 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 10441690 *Qty: 1 BRACKET $0.90
Location: 23 Prev | Next Part: 179068 *Qty: 2 GASKET -Valid till Ass. Nr. 49527 $0.90
Location: 24 Prev | Next Part: 193186 *Qty: 1 NONRETURN VALVE -Valid from Ass. Nr. 49528 $7.91
Location: 25 Prev | Next Part: 164015 *Qty: 2 COLLAR FOR SLEEVE -Valid from Ass. Nr. 49528 $0.90
Location: 26 Prev | Next Part: 127213 *Qty: 1 RUBBER HOSE -Valid from Ass. Nr. 49528 $18.93
Location: 27 Prev | Next Part: 11500224 *Qty: 1 STUD -Valid from Ass. Nr. 49528 $0.90
Location: 28 Prev | Next Part: 14048115 *Qty: 1 NUT -Valid from Ass. Nr. 49528 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
