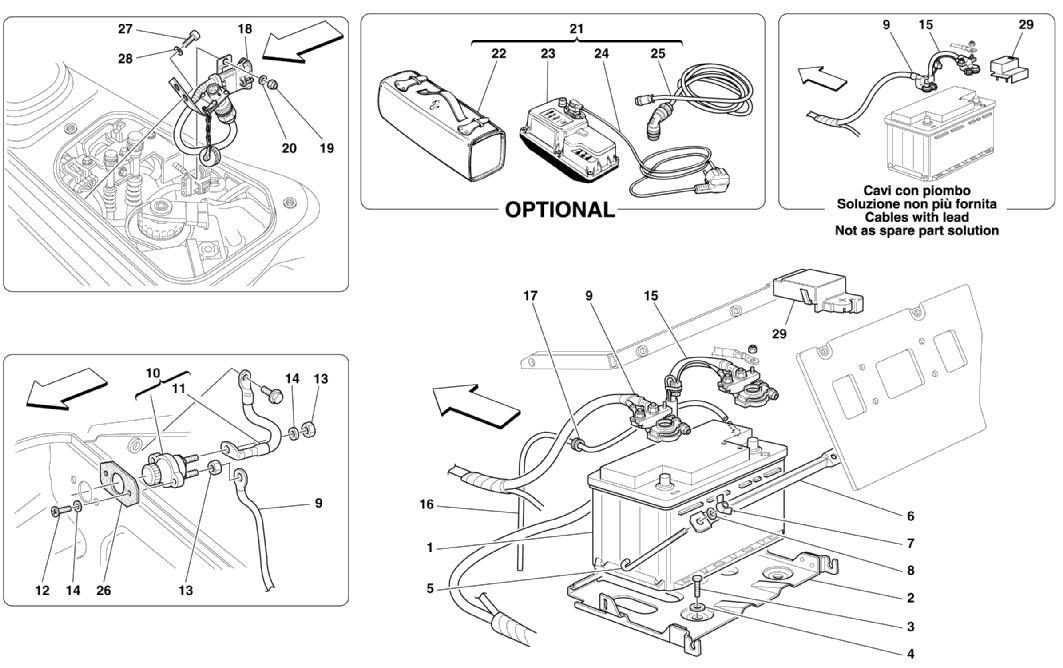

BATTERY

Go to Split View

BATTERY

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 168852 *Qty: 1 BATTERY 12V TYPE VR760 Call
Location: 2 Prev | Next Part: 65521500 *Qty: 1 BATTERY BIN $195.78
Location: 3 Prev | Next Part: 10902124 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 12647701 *Qty: 3 WASHER $0.90
Location: 5 Prev | Next Part: 65071000 *Qty: 2 TIE ROD $6.00
Location: 6 Prev | Next Part: 69836200 *Qty: 1 BRACKET $38.52
Location: 7 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 8 Prev | Next Part: 14499324 *Qty: 2 WASHER Superseded
Location: 9 Prev | Next Part: 198553 *Qty: 1 DASHBOARD CONNECTION CABLES -Not for GD Call
Location: 9 Prev | Next Part: 186522 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 40325 and till Ass. Nr. 41709 -Valid for GD Call
Location: 9 Prev | Next Part: 180207 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid till Ass. Nr. 36945 -Valid for GD Call
Location: 9 Prev | Next Part: 189234 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 41710 -Valid for GD -Not as spare part -Repla Call
Location: 9 Prev | Next Part: 195353 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 46968 -Not for GD -Not as spare part -Replace Call
Location: 9 Prev | Next Part: 198552 *Qty: 1 DASHBOARD CONNECTION CABLES -Not for GD $2,299.26
Location: 9 Prev | Next Part: 177911 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid till Ass. Nr. 34124 -Not for GD -Not for USA MY 2000,2001,2 $4,159.54
Location: 9 Prev | Next Part: 179194 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 36995 and till Ass. Nr. 41813- -Not for GD -Va $6,416.70
Location: 9 Prev | Next Part: 180206 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 34125 and till Ass. Nr. 36994- -Not for GD -No $1,587.66
Location: 9 Prev | Next Part: 181323 *Qty: 1 DASHBOARD CONNECTION CABLES -Valid from Ass. Nr. 36946 and till Ass. Nr. 40324 -Valid for GD Call
Location: 10 Prev | Next Part: 188055 *Qty: 1 CUT-OUT SWITCH ASSEMBLY $410.26
Location: 11 Prev | Next Part: 188056 *Qty: 1 GROUND CABLE $237.75
Location: 11 Prev | Next Part: 172892 *Qty: 1 GROUND CABLE -Not as spare part -Replaced by 188056 Call
Location: 12 Prev | Next Part: 13272472 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 10721911 *Qty: 2 NUT $0.90
Location: 14 Prev | Next Part: 14496277 *Qty: 4 WASHER $1.00
Location: 15 Prev | Next Part: 198555 *Qty: 1 CABLES FOR R.H. REAR TUNNEL CONNECTION -Valid for USA MY 2000,2001,2002,2003,2004 and CDN MY 20 $807.90
Location: 15 Prev | Next Part: 198554 *Qty: 1 CABLES FOR R.H. REAR TUNNEL CONNECTION -Not for USA MY 2000,2001,2002,2003,2004 and CDN MY 2000 $3,645.92
Location: 15 Prev | Next Part: 177913 *Qty: 1 CABLES FOR R.H. REAR TUNNEL CONNECTION -Not for USA MY 2000,2001,2002,2003 and CDN MY 2000,200 Call
Location: 15 Prev | Next Part: 182200 *Qty: 1 CABLES FOR R.H. REAR TUNNEL CONNECTION -Valid for USA MY 2000, 2001,2002,2003,2004 and CDN MY 2 Call
Location: 16 Prev | Next Part: 181056 *Qty: 1 BATTERY VENT PIPE $4.92
Location: 17 Prev | Next Part: 10396280 *Qty: 1 CABLE BUSHING $0.90
Location: 18 Prev | Next Part: 200857 *Qty: 1 BATTERY CHARGING CONNECTION CABLE -Optional -Valid from Ass. Nr. 43440 $179.04
Location: 18 Prev | Next Part: 178566 *Qty: 1 BATTERY CHARGING CONNECTION CABLE -Optional -Valid till Ass. Nr. 43439 $667.05
Location: 19 Prev | Next Part: 102741 *Qty: 1 NUT -Optional $0.90
Location: 20 Prev | Next Part: 10519424 *Qty: 1 WASHER -Optional Call
Location: 21 Prev | Next Part: 178682 *Qty: 1 BATTERY CHARGER KIT -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $2,054.72
Location: 21 Prev | Next Part: 178685 *Qty: 1 BATTERY CHARGER KIT -Valid for GB and Hong Kong -Optional $1,162.18
Location: 21 Prev | Next Part: 178684 *Qty: 1 BATTERY CHARGER KIT -Valid for AUS -Optional $985.49
Location: 21 Prev | Next Part: 178683 *Qty: 1 BATTERY CHARGER KIT -Valid for USA, CDN and J -Optional Superseded
Location: 22 Prev | Next Part: 65699200 *Qty: 1 BATTERY BAG CASE -Optional $509.36
Location: 23 Prev | Next Part: 177792 *Qty: 1 BATTERY CHARGER -110V -Not for USA, CDN and J -Optional $2,319.72
Location: 23 Prev | Next Part: 177791 *Qty: 1 BATTERY CHARGER -230V -Not for USA, CDN and J -Optional $1,056.65
Location: 24 Prev | Next Part: 177794 *Qty: 1 POWER SUPPLY CABLE -Not for USA, CDN, J, GB, Hong Kong and AUS -Optional $31.62
Location: 24 Prev | Next Part: 177796 *Qty: 1 POWER SUPPLY CABLE -Valid for AUS -Optional Call
Location: 24 Prev | Next Part: 178294 *Qty: 1 POWER SUPPLY CABLE -Valid for GB and Hong Kong -Optional Call
Location: 24 Prev | Next Part: 177795 *Qty: 1 POWER SUPPLY CABLE -Valid for USA, CDN and J -Optional $23.71
Location: 25 Prev | Next Part: 178676 *Qty: 1 CABLE WITH CONNECTOR -Optional $368.38
Location: 26 Prev | Next Part: 66079900 *Qty: 1 GASKET $2.64
Location: 27 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 28 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 185418 *Qty: 1 PROTECTION COVER $17.96

* Quantity shown indicates the number of pieces used in the diagram.
