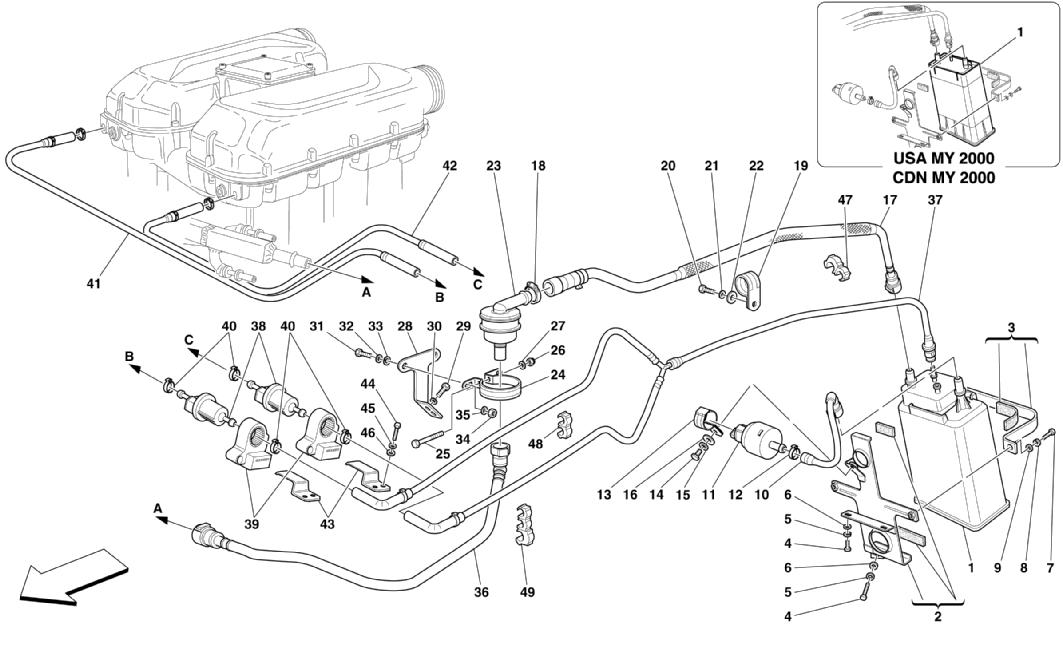

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN MY 2000-2004-

Go to Split View

ANTIEVAPORATION DEVICE -VALID FOR USA AND CDN MY 2000-2004-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 186316 *Qty: 1 FUEL VAPOR FILTER -Valid for USA MY 2001, 2002,2003,2004 and CDN MY 2001,2002,2003,2004 $344.21
Location: 1 Prev | Next Part: 178536 *Qty: 1 FUEL VAPOR FILTER -Not for USA MY 2001,2002,2003,2004 and CDN MY 2001,2002,2003,2004 Call
Location: 2 Prev | Next Part: 180615 *Qty: 1 FRAME FASTENING FILTER BRACKET $39.87
Location: 3 Prev | Next Part: 180636 *Qty: 1 VAPOR FILTER FIXING CLAMP $10.07
Location: 4 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 12639724 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 178540 *Qty: 1 COMPLETE TUBE $51.90
Location: 11 Prev | Next Part: 179138 *Qty: 1 ON-OFF VALVE $153.60
Location: 12 Prev | Next Part: 13432070 *Qty: 1 SCREW COLLAR $0.90
Location: 13 Prev | Next Part: 181607 *Qty: 1 BRACKET WITH SHEATH $10.03
Location: 14 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 178534 *Qty: 1 COMPLETE TUBE $105.28
Location: 18 Prev | Next Part: 13430770 *Qty: 1 SCREW COLLAR $0.90
Location: 19 Prev | Next Part: 10442190 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 20 Prev | Next Part: 10902124 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 180573 *Qty: 1 ANTI FLOWING BACK VALVE $132.33
Location: 24 Prev | Next Part: 180622 *Qty: 1 BRACKET $10.23
Location: 25 Prev | Next Part: 10902834 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 27 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 178532 *Qty: 1 BRACKET $4.68
Location: 29 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 30 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 31 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 10720124 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 178531 *Qty: 1 COMPLETE TUBE $92.14
Location: 37 Prev | Next Part: 179425 *Qty: 1 COMPLETE TUBE $106.70
Location: 38 Prev | Next Part: 162412 *Qty: 2 WASHING VALVE $46.57
Location: 39 Prev | Next Part: 174623 *Qty: 2 BUFFER FOR SUPPORT $13.12
Location: 40 Prev | Next Part: 13432070 *Qty: 4 SCREW COLLAR $0.90
Location: 41 Prev | Next Part: 180609 *Qty: 1 PIPE TO R.H. PLENUM CHAMBER $80.82
Location: 42 Prev | Next Part: 180610 *Qty: 1 PIPE TO L.H. PLENUM CHAMBER $69.24
Location: 43 Prev | Next Part: 174708 *Qty: 2 BRACKET $6.03
Location: 44 Prev | Next Part: 10979434 *Qty: 2 SCREW $1.38
Location: 45 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 46 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 102951 *Qty: 1 FLEXIBLE CLIP $82.30
Location: 48 Prev | Next Part: 180968 *Qty: 1 FLEXIBLE CLIP Call
Location: 49 Prev | Next Part: 180969 *Qty: 1 FLEXIBLE CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
