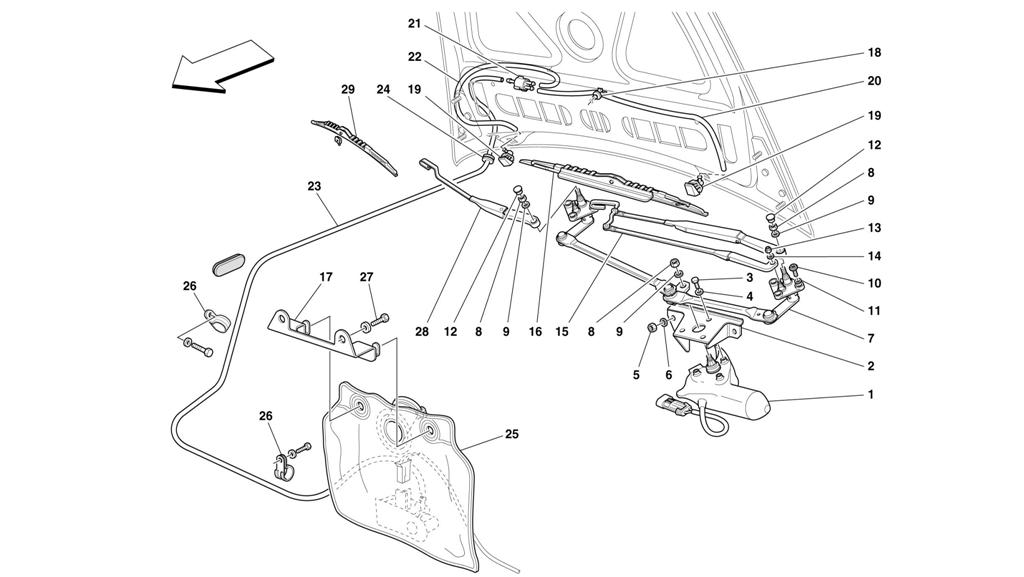

WINDSHIELD AND GLASS WASHER

Go to Split View

WINDSHIELD AND GLASS WASHER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 63780200 *Qty: 1 WINDSHIELD WIPER MOTOR Call
Location: 2 Prev | Next Part: 173416 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET $13.77
Location: 3 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 5 Prev | Next Part: 104030 *Qty: 3 NUT $0.90
Location: 6 Prev | Next Part: 14496524 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 65409100 *Qty: 1 COMPLETE WINDSHIELD WIPER LEVERAGE $802.53
Location: 8 Prev | Next Part: 16100814 *Qty: 3 NUT $0.90
Location: 9 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 64830600 *Qty: 6 SCREW $2.23
Location: 11 Prev | Next Part: 12644477 *Qty: 6 WASHER $0.90
Location: 12 Prev | Next Part: 65190900 *Qty: 2 SMALL COVER $4.36
Location: 13 Prev | Next Part: 15896472 *Qty: 1 NUT $0.90
Location: 14 Prev | Next Part: 12601176 *Qty: 1 WASHER $0.90
Location: 15 Prev | Next Part: 65409200 *Qty: 1 DRIVER SIDE WINDSHIELD WIPER ARM Call
Location: 16 Prev | Next Part: 63776100 *Qty: 1 DRIVER SIDE WIPER BRUSH $54.43
Location: 17 Prev | Next Part: 65984700 *Qty: 1 SUPPORT $50.86
Location: 18 Prev | Next Part: 65714300 *Qty: 2 FIXING CLIP $0.90
Location: 19 Prev | Next Part: 65191000 *Qty: 2 JET FOR WINDOW WASHING $3.86
Location: 20 Prev | Next Part: 65362600 *Qty: 1 RUBBER HOSE $24.51
Location: 21 Prev | Next Part: 61648100 *Qty: 1 NONRETURN VALVE $39.57
Location: 22 Prev | Next Part: 65362500 *Qty: 1 RUBBER HOSE $20.03
Location: 23 Prev | Next Part: 65362400 *Qty: 1 RUBBER HOSE FROM PUMP TO VALVE $25.16
Location: 24 Prev | Next Part: 10396280 *Qty: 1 GASKET $0.90
Location: 25 Prev | Next Part: 66151600 *Qty: 1 WINDSCREEN WASHER TANK $102.01
Location: 26 Prev | Next Part: 145855 *Qty: 6 CLAMP $0.90
Location: 27 Prev | Next Part: 62940900 *Qty: 2 SCREW $1.85
Location: 28 Prev | Next Part: 65409300 *Qty: 1 PASSENGER SIDE WINDSHIELD WIPER ARM $381.83
Location: 29 Prev | Next Part: 65409400 *Qty: 1 PASSENGER SIDE WIPER BRUSH $50.43

* Quantity shown indicates the number of pieces used in the diagram.
