TUNNEL - FRAMEWORK AND ACCESSORIES

Go to Split View

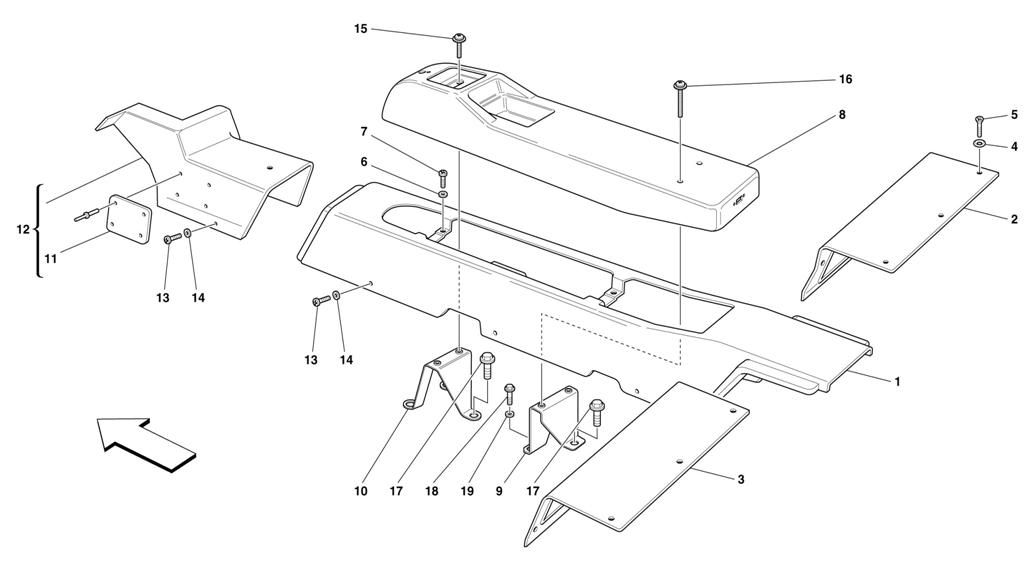

TUNNEL - FRAMEWORK AND ACCESSORIES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66127500 *Qty: 1 REAR SIDE TUNNEL COVER $1,667.45
Location: 2 Prev | Next Part: 66127900 *Qty: 1 R.H. COVER FOR CONTROL UNIT $435.32
Location: 3 Prev | Next Part: 66128100 *Qty: 1 L.H. COVER FOR CONTROL UNIT $435.32
Location: 4 Prev | Next Part: 12611407 *Qty: 8 WASHER $0.90
Location: 5 Prev | Next Part: 13313477 *Qty: 8 SCREW $0.90
Location: 6 Prev | Next Part: 12644424 *Qty: 4 WASHER $0.90
Location: 7 Prev | Next Part: 13276470 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: 65985300 *Qty: 1 CENTRAL UPPER TUNNEL COVER $1,277.28
Location: 9 Prev | Next Part: 65984200 *Qty: 1 REAR SUPPORT $80.82
Location: 10 Prev | Next Part: 65989100 *Qty: 1 FRONT SUPPORT $87.20
Location: 11 Prev | Next Part: 66151500 *Qty: 1 ACCELERATOR PEDAL PROTECTION $308.91
Location: 12 Prev | Next Part: 66127300 *Qty: 1 FRONT SIDE TUNNEL COVER $1,213.46
Location: 13 Prev | Next Part: 13299877 *Qty: 8 SCREW $0.90
Location: 14 Prev | Next Part: 12611107 *Qty: 8 WASHER $0.90
Location: 15 Prev | Next Part: 65864100 *Qty: 2 SCREW $1.90
Location: 16 Prev | Next Part: 169815 *Qty: 2 SCREW $2.21
Location: 17 Prev | Next Part: 16287127 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 16286027 *Qty: 1 SCREW $0.90
Location: 19 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
