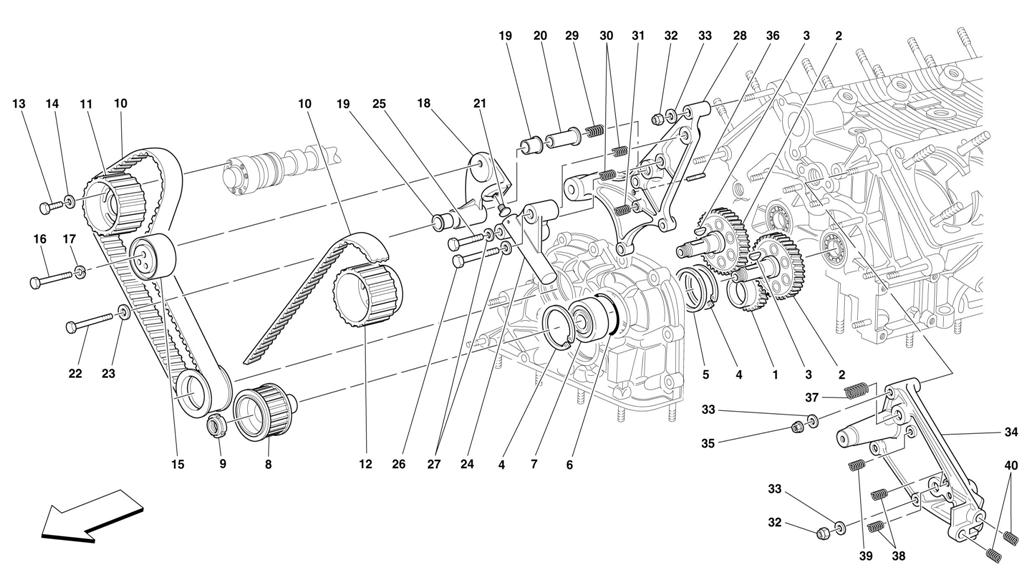

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 160598 *Qty: 1 DRIVING GEAR $695.56
Location: 2 Prev | Next Part: 181984 *Qty: 2 DRIVEN GEAR $2,477.82
Location: 3 Prev | Next Part: 10206320 *Qty: 2 DISC KEY $1.90
Location: 4 Prev | Next Part: 11060576 *Qty: 4 SEEGER RING $1.88
Location: 5 Prev | Next Part: 133377 *Qty: 2 WASHER $1.13
Location: 6 Prev | Next Part: 136140 *Qty: 2 O.R. GASKET $1.57
Location: 7 Prev | Next Part: 170787 *Qty: 2 BEARING $139.00
Location: 8 Prev | Next Part: 154238 *Qty: 2 DRIVING PULLEY $375.51
Location: 9 Prev | Next Part: 104919 *Qty: 2 RING NUT $5.85
Location: 10 Prev | Next Part: 184986 *Qty: 2 TIMING CONTROL BELT $112.60
Location: 11 Prev | Next Part: 169154 *Qty: 2 R.H. EXHAUST INDUCTION DISTRIBUTION PULLEY $117.69
Location: 12 Prev | Next Part: 169153 *Qty: 2 L.H. EXHAUST INDUCTION DISTRIBUTION PULLEY $847.53
Location: 13 Prev | Next Part: 181336 *Qty: 16 SCREW $2.19
Location: 14 Prev | Next Part: 11193274 *Qty: 16 WASHER $0.90
Location: 15 Prev | Next Part: 181264 *Qty: 2 BELT TIGHTENING PULLEY Superseded
Location: 16 Prev | Next Part: 11307024 *Qty: 2 SCREW $1.25
Location: 17 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 181253 *Qty: 2 BELT TIGHTENER ARM $366.50
Location: 19 Prev | Next Part: 159425 *Qty: 4 BUSHING $4.20
Location: 20 Prev | Next Part: 158138 *Qty: 2 BUSHING $85.11
Location: 21 Prev | Next Part: 158156 *Qty: 2 PAWL $255.41
Location: 22 Prev | Next Part: 11288034 *Qty: 2 SCREW $1.58
Location: 23 Prev | Next Part: 184318 *Qty: 2 WASHER $12.97
Location: 24 Prev | Next Part: 202784 *Qty: 1 L.H. HYDRAULIC TIGHTENER $575.00
Location: 24 Prev | Next Part: 157356 *Qty: 1 R.H. HYDRAULIC TIGHTENER $358.49
Location: 25 Prev | Next Part: 125506 *Qty: 2 SCREW $1.53
Location: 26 Prev | Next Part: 16044224 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 28 Prev | Next Part: 179635 *Qty: 1 UPPER BRACKET FOR GENERATOR SUPPORT $317.47
Location: 29 Prev | Next Part: 13526170 *Qty: 1 THREADED INSERT $6.47
Location: 30 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 31 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 32 Prev | Next Part: 101139 *Qty: 3 NUT $0.90
Location: 33 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 34 Prev | Next Part: 181822 *Qty: 1 BELT TIGHTENER SUPPORT AND A.C. COMPRESSOR $179.02
Location: 35 Prev | Next Part: 177778 *Qty: 1 NUT $1.83
Location: 36 Prev | Next Part: 11499924 *Qty: 1 STUD Call
Location: 37 Prev | Next Part: 13526170 *Qty: 1 THREADED INSERT $6.47
Location: 38 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 39 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 40 Prev | Next Part: 13525770 *Qty: 2 THREADED INSERT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
