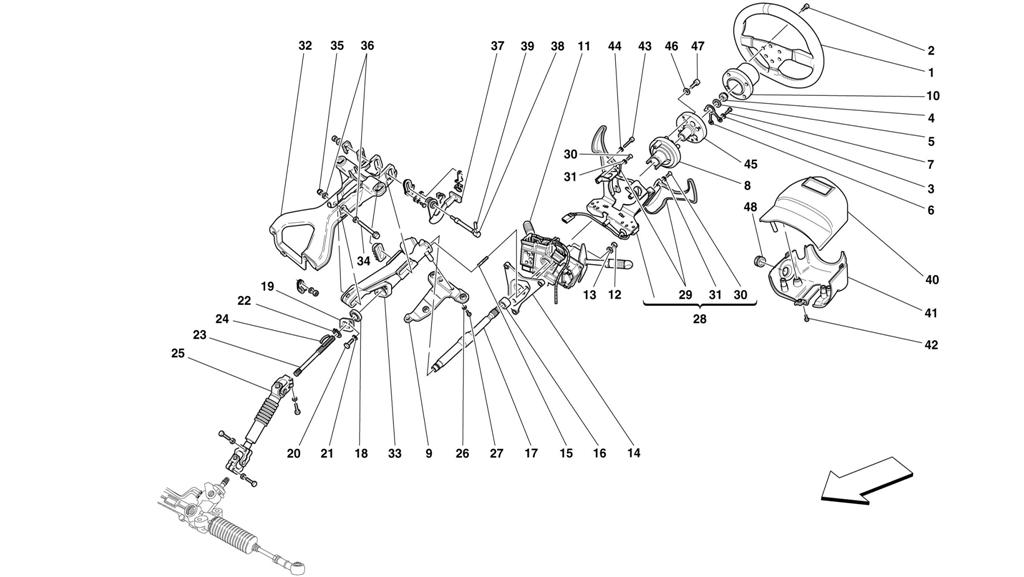

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182543 *Qty: 1 STEERING WHEEL Call
Location: 2 Prev | Next Part: 111189 *Qty: 6 SCREW $6.47
Location: 3 Prev | Next Part: 10615274 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 101648 *Qty: 1 NUT $4.15
Location: 5 Prev | Next Part: 10730921 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 157639 *Qty: 1 SPRING $6.19
Location: 7 Prev | Next Part: 11021111 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 169471 *Qty: 1 SPIRAL CONTACT $966.28
Location: 9 Prev | Next Part: 65164200 *Qty: 1 SUPPORTING BRACKET $21.94
Location: 10 Prev | Next Part: 182537 *Qty: 1 SPACER $368.60
Location: 11 Prev | Next Part: 178993 *Qty: 1 UNHOOK DEVIATION ASSEMBLY $542.97
Location: 12 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 12601174 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 176360 *Qty: 1 BRACKET $38.58
Location: 15 Prev | Next Part: 11001424 *Qty: 2 STUD Call
Location: 16 Prev | Next Part: 171539 *Qty: 1 ROLLER BEARING $128.74
Location: 17 Prev | Next Part: 171526 *Qty: 1 COLUMN UPPER SHAFT $414.98
Location: 18 Prev | Next Part: 171540 *Qty: 1 BALL BEARING $31.11
Location: 19 Prev | Next Part: 177645 *Qty: 1 PLATE $108.39
Location: 20 Prev | Next Part: 16132314 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 11181874 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 11067376 *Qty: 1 SEEGER RING $2.20
Location: 23 Prev | Next Part: 171507 *Qty: 1 COLUMN LOWER SHAFT $3,108.64
Location: 24 Prev | Next Part: 171520 *Qty: 1 SPRING $7.66
Location: 25 Prev | Next Part: 171528 *Qty: 1 STEERING CARDANIC TRASMISSION $2,481.43
Location: 26 Prev | Next Part: 12637878 *Qty: 3 WASHER $0.90
Location: 27 Prev | Next Part: 13274277 *Qty: 3 SCREW $0.90
Location: 28 Prev | Next Part: 182959 *Qty: 1 F1 GEARBOX CONTROL LEVERS ASSEMBLY Call
Location: 29 Prev | Next Part: 184739 *Qty: 1 COUPLE LEVERS $923.91
Location: 30 Prev | Next Part: 13308977 *Qty: 4 SCREW Call
Location: 31 Prev | Next Part: 12606673 *Qty: 4 WASHER Call
Location: 32 Prev | Next Part: 171505 *Qty: 1 STEERING COLUMN SUPPORT BRACKET $2,303.79
Location: 33 Prev | Next Part: 171516 *Qty: 1 COLUMN SUPPORT $116.93
Location: 34 Prev | Next Part: 180632 *Qty: 1 SCREW $15.78
Location: 35 Prev | Next Part: 104030 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 12625224 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 171535 *Qty: 1 COVERED LEVER $159.62
Location: 38 Prev | Next Part: 171503 *Qty: 1 PIN FOR LEVER $66.26
Location: 39 Prev | Next Part: 10336630 *Qty: 1 PIN $126.72
Location: 40 Prev | Next Part: 65583200 *Qty: 1 UPPER COVER $198.28
Location: 41 Prev | Next Part: 65310600 *Qty: 1 LOWER COVER $87.69
Location: 42 Prev | Next Part: 15960507 *Qty: 2 SCREW $0.93
Location: 43 Prev | Next Part: 13274611 *Qty: 3 SCREW $0.90
Location: 44 Prev | Next Part: 12601174 *Qty: 3 WASHER $0.90
Location: 45 Prev | Next Part: 157638 *Qty: 1 STEERING WHEEL HUB $146.86
Location: 46 Prev | Next Part: 10615274 *Qty: 3 WASHER $0.90
Location: 47 Prev | Next Part: 13271914 *Qty: 3 SCREW $0.90
Location: 48 Prev | Next Part: 10397680 *Qty: 1 RING $1.07

* Quantity shown indicates the number of pieces used in the diagram.
