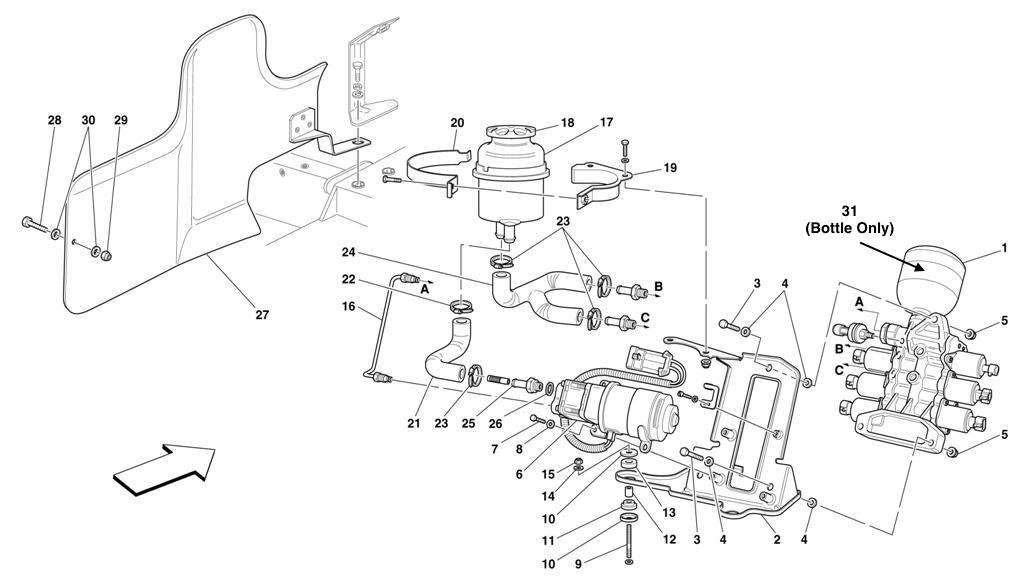

POWER UNIT AND TANK

Go to Split View

POWER UNIT AND TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 181161 *Qty: 1 F1 GEARBOX SYSTEM COMPONENTS KIT $20,879.21
Location: 1 Prev | Next Part: 179533 *Qty: 1 POWER UNIT $4,601.53
Location: 2 Prev | Next Part: 179296 *Qty: 1 POWER UNIT SUPPORTING BRACKET $906.15
Location: 3 Prev | Next Part: 16043934 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: 14496524 *Qty: 6 WASHER $0.90
Location: 5 Prev | Next Part: 175283 *Qty: 3 NUT $0.90
Location: 6 Prev | Next Part: 213264 *Qty: 1 ELECTRIC PUMP $700.00
Location: 7 Prev | Next Part: 10902424 *Qty: 3 SCREW $0.90
Location: 8 Prev | Next Part: 14496424 *Qty: 3 WASHER Superseded
Location: 9 Prev | Next Part: 11500824 *Qty: 2 STUD $0.90
Location: 10 Prev | Next Part: 179636 *Qty: 6 CUP $2.62
Location: 11 Prev | Next Part: 179639 *Qty: 3 LOWER PAD $1.25
Location: 12 Prev | Next Part: 179637 *Qty: 3 SPACER $3.11
Location: 13 Prev | Next Part: 179638 *Qty: 3 UPPER PAD $0.90
Location: 14 Prev | Next Part: 12620474 *Qty: 3 WASHER $0.90
Location: 15 Prev | Next Part: 15896214 *Qty: 3 NUT $0.90
Location: 16 Prev | Next Part: 186037 *Qty: 1 PIPE FROM ELECTRICAL PUMP TO POWER UNIT $54.03
Location: 17 Prev | Next Part: 167002 *Qty: 1 OIL TANK $143.00
Location: 18 Prev | Next Part: 185353 *Qty: 1 PLUG $438.71
Location: 19 Prev | Next Part: 179593 *Qty: 1 BRACKET FOR TANK SUPPORT $338.12
Location: 20 Prev | Next Part: 171746 *Qty: 1 SUPPORT CLAMP $27.77
Location: 21 Prev | Next Part: 179338 *Qty: 1 PIPE FROM TANK TO PUMP $179.87
Location: 22 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.97
Location: 23 Prev | Next Part: 161490 *Qty: 4 SCREW COLLAR $2.48
Location: 24 Prev | Next Part: 181915 *Qty: 1 PIPE FROM TANK TO POWER UNIT $86.19
Location: 25 Prev | Next Part: 185858 *Qty: 1 UNION $155.86
Location: 26 Prev | Next Part: 10280050 *Qty: 1 GASKET Call
Location: 27 Prev | Next Part: 183527 *Qty: 1 SHIELD FOR POWER UNIT PROTECTION $542.69
Location: 28 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 29 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12646601 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
