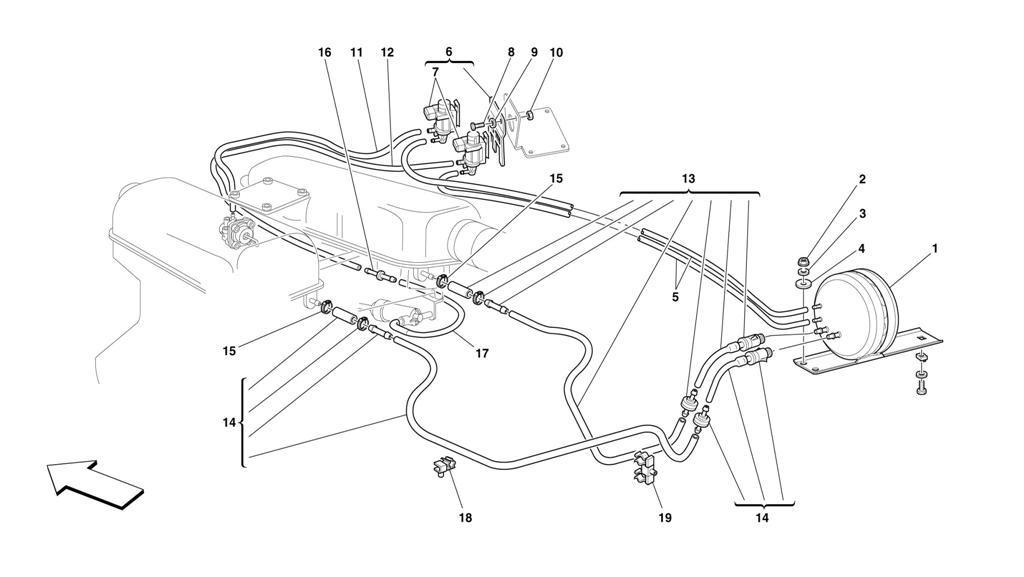

PNEUMATICS ACTUATOR SYSTEM

Go to Split View

PNEUMATICS ACTUATOR SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182824 *Qty: 1 DEPRESSION ACCUMULATION TANK $275.29
Location: 2 Prev | Next Part: 14059211 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 122760 *Qty: 2 PIPE FROM TANK TO SOLENOID VALVE $9.23
Location: 6 Prev | Next Part: 159176 *Qty: 1 SMALL PLATE WITH SOLENOID VALVE $137.37
Location: 7 Prev | Next Part: 159177 *Qty: 2 SOLENOID VALVE $193.72
Location: 8 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12604174 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 11 Prev | Next Part: 169692 *Qty: 1 PIPE FROM SOLENOID VALVE TO PNEUMATIC CAPSULE $12.69
Location: 12 Prev | Next Part: 115665 *Qty: 1 PIPE FROM SOLENOID VALVE TO UNION $45.03
Location: 13 Prev | Next Part: 178421 *Qty: 1 COMPLETE R.H. DEPRESSION PIPE $151.03
Location: 14 Prev | Next Part: 178420 *Qty: 1 COMPLETE L.H. DEPRESSION PIPE $144.03
Location: 15 Prev | Next Part: 13434670 *Qty: 2 SCREW COLLAR Call
Location: 16 Prev | Next Part: 178491 *Qty: 1 UNION $32.27
Location: 17 Prev | Next Part: 168248 *Qty: 1 RUBBER HOSE $22.90
Location: 18 Prev | Next Part: 180160 *Qty: 1 L.H. CLIP $0.90
Location: 19 Prev | Next Part: 180161 *Qty: 1 R.H. CLIP $2.64

* Quantity shown indicates the number of pieces used in the diagram.
