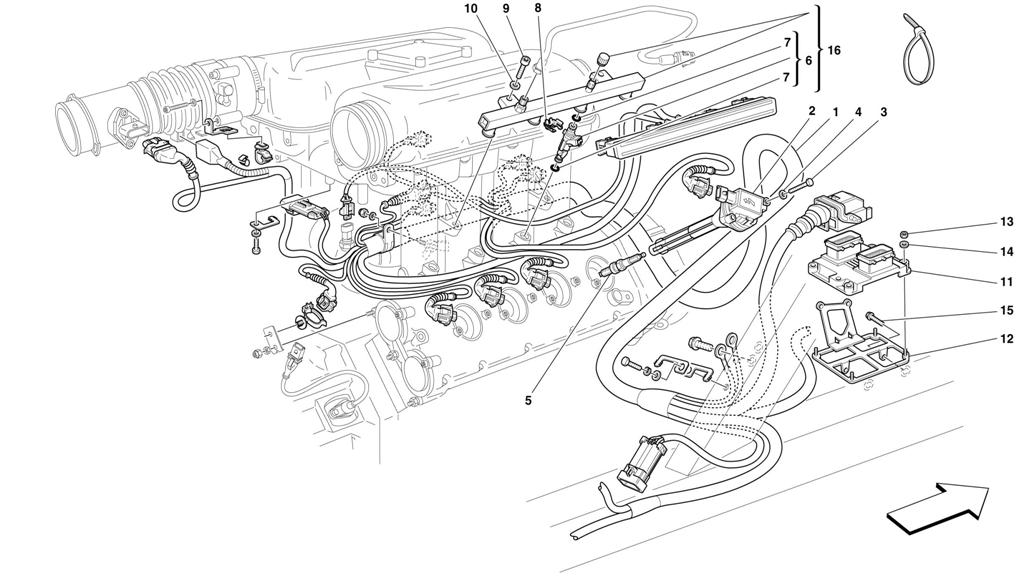

INJECTION DEVICE - IGNITION

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 177782 *Qty: 1 L.H. SIDE ENGINE INJECTION CABLES $1,351.68
Location: 1 Prev | Next Part: 199873 *Qty: 1 R.H. SIDE ENGINE INJECTION CABLES $1,404.07
Location: 2 Prev | Next Part: 177074 *Qty: 8 SINGOL IGNITION COIL $150.82
Location: 3 Prev | Next Part: 10902424 *Qty: 16 SCREW $0.90
Location: 4 Prev | Next Part: 12601274 *Qty: 16 WASHER $0.90
Location: 5 Prev | Next Part: 168325 *Qty: 8 SPARK PLUG Superseded
Location: 6 Prev | Next Part: 197808 *Qty: 8 ELECTRO-INJECTOR $336.92
Location: 7 Prev | Next Part: 133902 *Qty: 16 GASKET $8.47
Location: 8 Prev | Next Part: 144730 *Qty: 8 INJECTORS RETAINING CLIP $4.03
Location: 9 Prev | Next Part: 14306424 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 182542 *Qty: 2 CONTROL UNIT IGNITION $2,600.48
Location: 12 Prev | Next Part: 177984 *Qty: 1 R.H. PLATE $404.51
Location: 12 Prev | Next Part: 174956 *Qty: 1 L.H. PLATE $30.15
Location: 13 Prev | Next Part: 15896470 *Qty: 8 NUT $0.90
Location: 14 Prev | Next Part: 12604174 *Qty: 8 WASHER $0.90
Location: 15 Prev | Next Part: 16286024 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 178482 *Qty: 1 L.H. COMPLETE FUEL PIPE WITH ELECTRO-INJECTOR $1,503.09
Location: 16 Prev | Next Part: 178494 *Qty: 1 R.H. COMPLETE FUEL PIPE WITH ELECTRO-INJECTOR $1,192.56

* Quantity shown indicates the number of pieces used in the diagram.
