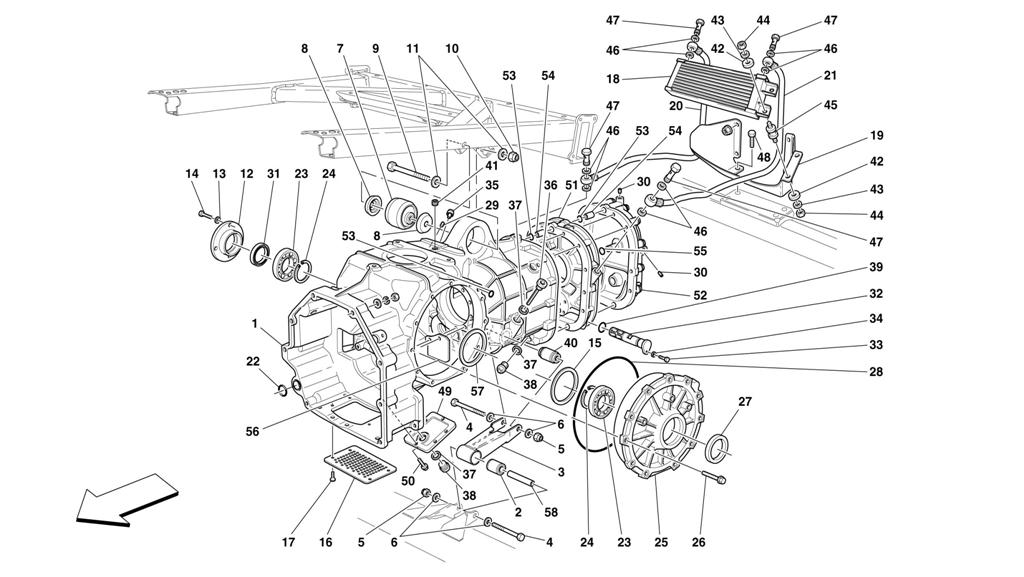

GEARBOX - COVERS

Go to Split View

GEARBOX - COVERS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 184775 *Qty: 1 COMPLETE TRANSMISSION Call
Location: 2 Prev | Next Part: 181755 *Qty: 1 PAD $103.37
Location: 3 Prev | Next Part: 174458 *Qty: 1 SMALL LINK $332.14
Location: 4 Prev | Next Part: 15541234 *Qty: 2 SCREW $1.76
Location: 5 Prev | Next Part: 148020 *Qty: 2 NUT $5.53
Location: 6 Prev | Next Part: 14496724 *Qty: 4 WASHER $0.90
Location: 7 Prev | Next Part: 186698 *Qty: 1 RESILIENT BUSHING Superseded
Location: 8 Prev | Next Part: 179559 *Qty: 2 RETAINING WASHER $15.00
Location: 9 Prev | Next Part: 11117134 *Qty: 1 SCREW $6.91
Location: 10 Prev | Next Part: 106004 *Qty: 1 NUT $1.64
Location: 11 Prev | Next Part: 14496824 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 183981 *Qty: 1 R.H. FLANGE FOR SHAFT $173.81
Location: 13 Prev | Next Part: 11194377 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 10902224 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 185026 *Qty: 1 RING -Thickness mm. 6,8 $56.83
Location: 15 Prev | Next Part: 185027 *Qty: 1 RING -Thickness mm. 6,4 -Possible fitting $65.58
Location: 15 Prev | Next Part: 185028 *Qty: 1 RING -Thickness mm. 6,0 -Possible fitting $65.58
Location: 16 Prev | Next Part: 171701 *Qty: 1 PROTECTION DRILLET PLATE $153.13
Location: 17 Prev | Next Part: 111189 *Qty: 4 SCREW $6.47
Location: 18 Prev | Next Part: 181489 *Qty: 1 OIL RADIATOR $856.16
Location: 19 Prev | Next Part: 181426 *Qty: 1 RADIATOR SUPPORT $1,021.48
Location: 20 Prev | Next Part: 182915 *Qty: 1 OIL DELIVERY TUBE $289.29
Location: 21 Prev | Next Part: 182916 *Qty: 1 OIL RETURN TUBE Call
Location: 22 Prev | Next Part: 123236 *Qty: 1 O.R. GASKET $4.89
Location: 23 Prev | Next Part: 184995 *Qty: 2 BALL BEARING $83.22
Location: 24 Prev | Next Part: 184994 *Qty: 2 FLEXIBLE RING $3.29
Location: 25 Prev | Next Part: 171117 *Qty: 1 DIFFERENTIAL COVER $2,064.57
Location: 26 Prev | Next Part: 16287321 *Qty: 11 SCREW $0.90
Location: 27 Prev | Next Part: 181617 *Qty: 1 L.H. OIL RING $50.80
Location: 28 Prev | Next Part: 14468781 *Qty: 1 GASKET $41.22
Location: 29 Prev | Next Part: 14326050 *Qty: 1 THREADED PLUG $1.72
Location: 30 Prev | Next Part: 182106 *Qty: 2 THREADED PLUG $2.37
Location: 31 Prev | Next Part: 181618 *Qty: 1 R.H. OIL RING $56.44
Location: 32 Prev | Next Part: 182100 *Qty: 1 GEAR BOX OIL FILTER $125.10
Location: 33 Prev | Next Part: 182101 *Qty: 1 SCREW $0.90
Location: 34 Prev | Next Part: 182102 *Qty: 1 WASHER Call
Location: 35 Prev | Next Part: 182118 *Qty: 1 OIL VENT $13.28
Location: 36 Prev | Next Part: 182117 *Qty: 1 OIL LEVEL ROD $68.43
Location: 37 Prev | Next Part: 10263460 *Qty: 3 GASKET Superseded
Location: 38 Prev | Next Part: 183962 *Qty: 2 PLUG $23.33
Location: 39 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $2.96
Location: 40 Prev | Next Part: 183490 *Qty: 1 PAD $144.31
Location: 41 Prev | Next Part: 14324911 *Qty: 1 PLUG $1.13
Location: 42 Prev | Next Part: 12643724 *Qty: 6 WASHER $0.90
Location: 43 Prev | Next Part: 127494 *Qty: 6 WASHER $0.90
Location: 44 Prev | Next Part: 15896214 *Qty: 6 NUT $0.90
Location: 45 Prev | Next Part: 142202 *Qty: 3 PAD $10.09
Location: 46 Prev | Next Part: 145192 *Qty: 8 GASKET $9.83
Location: 47 Prev | Next Part: 153419 *Qty: 4 UNION $72.98
Location: 48 Prev | Next Part: 10902424 *Qty: 4 SCREW $0.90
Location: 49 Prev | Next Part: 171045 *Qty: 1 LOWER COVER $145.50
Location: 50 Prev | Next Part: 16286121 *Qty: 6 SCREW $0.90
Location: 51 Prev | Next Part: 173611 *Qty: 1 PLATE $1,461.65
Location: 52 Prev | Next Part: 181246 *Qty: 1 REAR COVER Call
Location: 53 Prev | Next Part: 14456981 *Qty: 4 GASKET $1.22
Location: 54 Prev | Next Part: 150957 *Qty: 4 CENTERING BUSHING $10.75
Location: 55 Prev | Next Part: 137192 *Qty: 2 GASKET $0.90
Location: 56 Prev | Next Part: 183986 *Qty: 1 PLATE $4.70
Location: 57 Prev | Next Part: 185029 *Qty: 1 RING -Thickness mm. 3,30 $52.44
Location: 57 Prev | Next Part: 185033 *Qty: 1 RING -Thickness mm. 2,95 -Possible fitting $52.44
Location: 57 Prev | Next Part: 185034 *Qty: 1 RING -Thickness mm. 2,60 -Possible fitting $52.44
Location: 58 Prev | Next Part: 181761 *Qty: 1 SPACER $4.65

* Quantity shown indicates the number of pieces used in the diagram.
