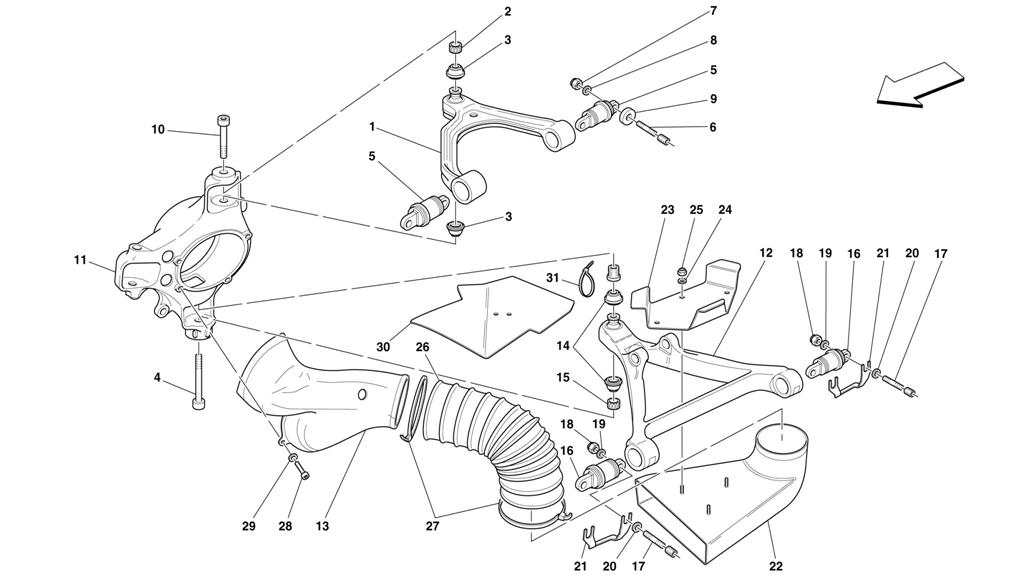

FRONT SUSPENSION - WISHBONES

Go to Split View

FRONT SUSPENSION - WISHBONES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 70000959 *Qty: 2 UPPER LEVER Call
Location: 2 Prev | Next Part: 179555 *Qty: 2 COMPENSATOR RING $5.99
Location: 3 Prev | Next Part: 171848 *Qty: 4 BOOT $42.00
Location: 4 Prev | Next Part: 181598 *Qty: 2 SCREW $70.72
Location: 5 Prev | Next Part: 181345 *Qty: 4 FLANBLOC Call
Location: 6 Prev | Next Part: 181458 *Qty: 8 THREADED BAR $26.60
Location: 7 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 8 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 12628905 *Qty: 8 WASHER $1.15
Location: 10 Prev | Next Part: 179556 *Qty: 2 SCREW $33.86
Location: 11 Prev | Next Part: 182884 *Qty: 1 L.H. FRONT STEERING KNUCKLE Call
Location: 11 Prev | Next Part: 181558 *Qty: 1 R.H. FRONT STEERING KNUCKLE $2,234.61
Location: 12 Prev | Next Part: 200939 *Qty: 2 LOWER LEVER $943.58
Location: 13 Prev | Next Part: 181473 *Qty: 1 R.H. AIR INTAKE $550.44
Location: 13 Prev | Next Part: 181474 *Qty: 1 L.H. AIR INTAKE $550.44
Location: 14 Prev | Next Part: 171847 *Qty: 4 BOOT $42.00
Location: 15 Prev | Next Part: 179554 *Qty: 2 COMPENSATOR RING $6.21
Location: 16 Prev | Next Part: 181346 *Qty: 4 FLANBLOC Call
Location: 17 Prev | Next Part: 181457 *Qty: 8 THREADED BAR $13.31
Location: 18 Prev | Next Part: 12574521 *Qty: 8 NUT $0.90
Location: 19 Prev | Next Part: 14496624 *Qty: 8 WASHER $0.90
Location: 20 Prev | Next Part: 182924 *Qty: 8 SPACER $2.87
Location: 21 Prev | Next Part: 169097 *Qty: 4 SPACER Th. 1mm $35.73
Location: 21 Prev | Next Part: 169098 *Qty: 4 SPACER Th. 2mm -Possible fitting $38.67
Location: 21 Prev | Next Part: 169099 *Qty: 4 SPACER Th. 3mm -Possible fitting $41.67
Location: 21 Prev | Next Part: 169100 *Qty: 4 SPACER Th. 4mm -Possible fitting $44.63
Location: 22 Prev | Next Part: 181475 *Qty: 1 R.H. AIR INTAKE $1,280.75
Location: 22 Prev | Next Part: 181476 *Qty: 1 L.H. AIR INTAKE $2,463.71
Location: 23 Prev | Next Part: 181477 *Qty: 2 AIR INTAKE SUPPORT $349.34
Location: 24 Prev | Next Part: 12638177 *Qty: 6 WASHER Superseded
Location: 25 Prev | Next Part: 169180 *Qty: 6 NUT $0.90
Location: 26 Prev | Next Part: 183479 *Qty: 2 AIR INTAKE CONNECTION PIPE $389.48
Location: 27 Prev | Next Part: 163323 *Qty: 4 CLAMP $0.90
Location: 28 Prev | Next Part: 14305024 *Qty: 4 SCREW $0.90
Location: 29 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 30 Prev | Next Part: 183868 *Qty: 1 R.H. AIR DEFLECTOR $792.99
Location: 30 Prev | Next Part: 183869 *Qty: 1 L.H. AIR DEFLECTOR $792.99
Location: 31 Prev | Next Part: 145855 *Qty: 2 CLAMP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
