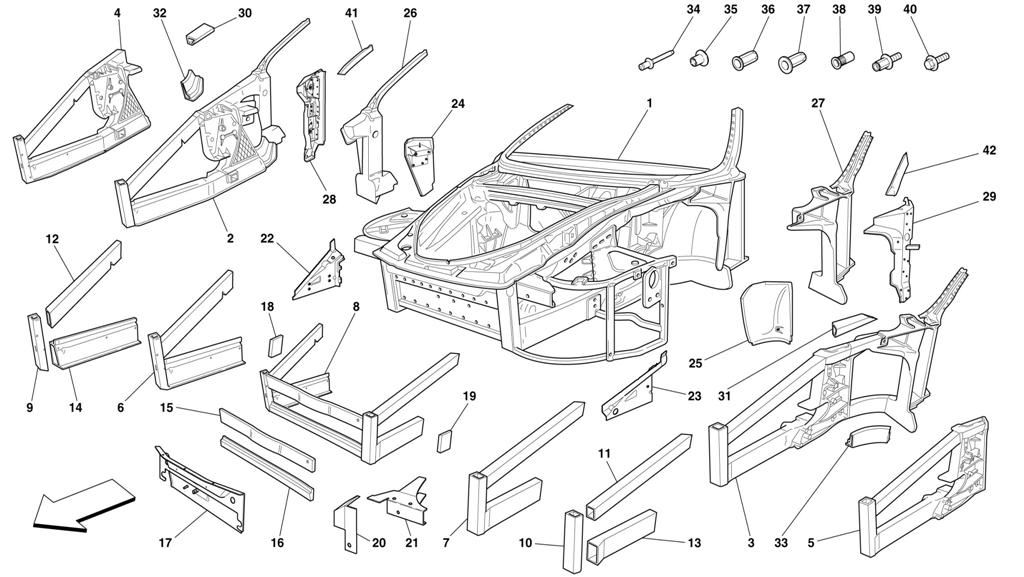

FRAME - FRONT ELEMENTS STRUCTURES AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66278500 *Qty: 1 COMPLETE FRONT FRAME Call
Location: 2 Prev | Next Part: 65940700 *Qty: 1 COMPLETE R.H. FRONT SIDE FRAME Call
Location: 3 Prev | Next Part: 65940800 *Qty: 1 COMPLETE L.H. FRONT SIDE FRAME Call
Location: 4 Prev | Next Part: 65940500 *Qty: 1 R.H. FRONT LATERAL SPRAG Call
Location: 5 Prev | Next Part: 65940600 *Qty: 1 L.H. FRONT LATERAL SPRAG Call
Location: 6 Prev | Next Part: 65940300 *Qty: 1 COMPLETE R.H. FRONT LATERAL FRAME Call
Location: 7 Prev | Next Part: 65940400 *Qty: 1 COMPLETE L.H. FRONT LATERAL FRAME Call
Location: 8 Prev | Next Part: 65940200 *Qty: 1 COMPLETE FRONT FRAME Call
Location: 9 Prev | Next Part: 166202 *Qty: 1 R.H. FRONT BUMPER PILLAR Call
Location: 10 Prev | Next Part: 166102 *Qty: 1 L.H. FRONT BUMPER PILLAR Call
Location: 11 Prev | Next Part: 166105 *Qty: 1 L.H. FRONT UPPER FRAME Call
Location: 12 Prev | Next Part: 166205 *Qty: 1 R.H. FRONT UPPER FRAME Call
Location: 13 Prev | Next Part: 166203 *Qty: 1 L.H. FRONT LOWER FRAME Call
Location: 14 Prev | Next Part: 166103 *Qty: 1 R.H. FRONT LOWER FRAME Call
Location: 15 Prev | Next Part: 166301 *Qty: 1 FRONT UPPER CROSS MEMBER $231.95
Location: 16 Prev | Next Part: 166357 *Qty: 1 FRONT LOWER CROSS MEMBER Call
Location: 17 Prev | Next Part: 65393500 *Qty: 1 TRUNK COMPARTMENT FRONT WALL Call
Location: 18 Prev | Next Part: 166291 *Qty: 1 R.H. FRONT REINFORCEMENT Call
Location: 19 Prev | Next Part: 166191 *Qty: 1 L.H. FRONT REINFORCEMENT $15.38
Location: 20 Prev | Next Part: 177466 *Qty: 1 L.H. BRACKET Call
Location: 20 Prev | Next Part: 177467 *Qty: 1 R.H. BRACKET Call
Location: 21 Prev | Next Part: 166270 *Qty: 1 R.H. BRAKET FOR FRONT BUMPER FIXING Call
Location: 21 Prev | Next Part: 166170 *Qty: 1 L.H. BRAKET FOR FRONT BUMPER FIXING Call
Location: 22 Prev | Next Part: 65152700 *Qty: 1 R.H. FRONT SIDE WALL Call
Location: 23 Prev | Next Part: 65152800 *Qty: 1 L.H. FRONT SIDE WALL Superseded
Location: 24 Prev | Next Part: 175738 *Qty: 1 R.H. PLATE Call
Location: 25 Prev | Next Part: 175737 *Qty: 1 L.H. PLATE Call
Location: 26 Prev | Next Part: 65941600 *Qty: 1 COMPLETE R.H. DOOR PILLAR Call
Location: 27 Prev | Next Part: 65941700 *Qty: 1 COMPLETE L.H. DOOR PILLAR Call
Location: 28 Prev | Next Part: 64768200 *Qty: 1 COMPLETE FRONT R.H. PILLAR Call
Location: 29 Prev | Next Part: 64768300 *Qty: 1 COMPLETE FRONT L.H. PILLAR Call
Location: 30 Prev | Next Part: 166207 *Qty: 1 R.H. UPPER FRAME Call
Location: 31 Prev | Next Part: 166107 *Qty: 1 L.H. UPPER FRAME Call
Location: 32 Prev | Next Part: 166215 *Qty: 1 R.H. LOWER FRAME Call
Location: 33 Prev | Next Part: 166115 *Qty: 1 L.H. LOWER FRAME Call
Location: 34 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 34 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 35 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 36 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 36 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.04
Location: 36 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.26
Location: 36 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.78
Location: 36 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 37 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 38 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 38 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.85
Location: 38 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 38 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 39 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 40 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90
Location: 41 Prev | Next Part: 65160200 *Qty: 1 R.H. INSERT Call
Location: 42 Prev | Next Part: 65160300 *Qty: 1 L.H. INSERT Call

* Quantity shown indicates the number of pieces used in the diagram.
