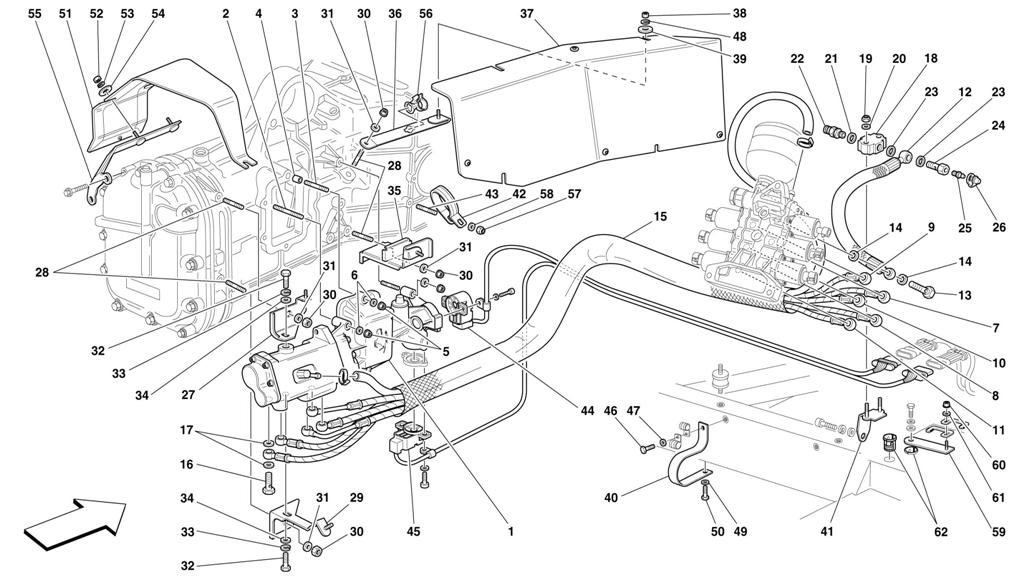

F1 CLUTCH HYDRAULIC CONTROL

Go to Split View

F1 CLUTCH HYDRAULIC CONTROL

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 181161 *Qty: 1 F1 GEARBOX SYSTEM COMPONENTS KIT $21,531.69
Location: 1 Prev | Next Part: 181160 *Qty: 1 COMPLETE HYDRAULIC ACTUATOR Call
Location: 2 Prev | Next Part: 11501024 *Qty: 4 STUD $1.15
Location: 3 Prev | Next Part: 11500724 *Qty: 2 STUD $1.78
Location: 4 Prev | Next Part: 103038 *Qty: 2 CENTERING DOWEL $1.65
Location: 5 Prev | Next Part: 132877 *Qty: 6 NUT $2.35
Location: 6 Prev | Next Part: 12601279 *Qty: 6 WASHER Superseded
Location: 7 Prev | Next Part: 179340 *Qty: 1 PIPE (EV1) Call
Location: 8 Prev | Next Part: 179342 *Qty: 1 PIPE (EV2) $1,574.45
Location: 9 Prev | Next Part: 179343 *Qty: 1 PIPE (EV3) $1,361.55
Location: 10 Prev | Next Part: 179344 *Qty: 1 PIPE (EV4) $1,647.13
Location: 11 Prev | Next Part: 179345 *Qty: 1 PIPE (EV5) $1,320.78
Location: 12 Prev | Next Part: 179348 *Qty: 1 PIPE FROM PUMP TO BLOCK $806.05
Location: 13 Prev | Next Part: 171454 *Qty: 6 UNION $12.35
Location: 14 Prev | Next Part: 10261060 *Qty: 12 GASKET $0.90
Location: 15 Prev | Next Part: 179346 *Qty: 1 PROTECTION SHEATH $532.63
Location: 16 Prev | Next Part: 171454 *Qty: 5 UNION $12.35
Location: 17 Prev | Next Part: 10261060 *Qty: 10 GASKET $0.90
Location: 18 Prev | Next Part: 175667 *Qty: 1 BLOCK $43.60
Location: 19 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: 12601279 *Qty: 2 WASHER Superseded
Location: 21 Prev | Next Part: 171755 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 70001184 *Qty: 1 QUICK MALE COUPLING Call
Location: 23 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 24 Prev | Next Part: 171630 *Qty: 1 UNION $71.21
Location: 25 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $8.00
Location: 26 Prev | Next Part: 152955 *Qty: 1 PROTECTION BOOT $7.43
Location: 27 Prev | Next Part: 174257 *Qty: 1 UPPER ACTUATOR SUPPORT BRACKET $12.51
Location: 28 Prev | Next Part: 13516424 *Qty: 5 STUD $1.13
Location: 29 Prev | Next Part: 174260 *Qty: 1 LOWER ACTUATOR SUPPORT BRACKET $13.94
Location: 30 Prev | Next Part: 16100814 *Qty: 5 NUT $0.90
Location: 31 Prev | Next Part: 127496 *Qty: 5 WASHER $0.90
Location: 32 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 10519624 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 180807 *Qty: 1 PIPES SUPPORTING BRACKET $15.93
Location: 36 Prev | Next Part: 178724 *Qty: 1 SHIELD SUPPORTING BRACKET $8.42
Location: 37 Prev | Next Part: 177384 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION $267.73
Location: 38 Prev | Next Part: 160472 *Qty: 4 NUT $3.09
Location: 39 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 180782 *Qty: 2 PIPES SUPPORTING BRACKET $4.31
Location: 41 Prev | Next Part: 176142 *Qty: 1 BLOCK SUPPORT BRACKET $7.12
Location: 42 Prev | Next Part: 124034 *Qty: 1 BRACKET WITH SHEATH $3.25
Location: 43 Prev | Next Part: 13540724 *Qty: 1 STUD $0.90
Location: 44 Prev | Next Part: 181325 *Qty: 1 SELECTION SENSOR $1,709.18
Location: 45 Prev | Next Part: 181325 *Qty: 1 COUPLING SENSOR $1,709.18
Location: 46 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 47 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 48 Prev | Next Part: 127493 *Qty: 4 WASHER Superseded
Location: 49 Prev | Next Part: 12644424 *Qty: 2 WASHER $0.90
Location: 50 Prev | Next Part: 10902224 *Qty: 2 SCREW $0.90
Location: 51 Prev | Next Part: 180744 *Qty: 1 SHIELD $276.74
Location: 52 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 53 Prev | Next Part: 127493 *Qty: 2 WASHER Superseded
Location: 54 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 55 Prev | Next Part: 180745 *Qty: 1 SHIELD SUPPORTING BRACKET $59.91
Location: 56 Prev | Next Part: 164565 *Qty: 2 FIXING CLIP $0.90
Location: 57 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 58 Prev | Next Part: 12643724 *Qty: 1 WASHER $0.90
Location: 59 Prev | Next Part: 181344 *Qty: 1 CONNECTORS FIXING BRACKET $3.52
Location: 60 Prev | Next Part: 113647 *Qty: 1 NUT $0.90
Location: 61 Prev | Next Part: 14496324 *Qty: 1 WASHER $4.15
Location: 62 Prev | Next Part: 65891200 *Qty: 4 NUT WITH CAGE $2.35

* Quantity shown indicates the number of pieces used in the diagram.
