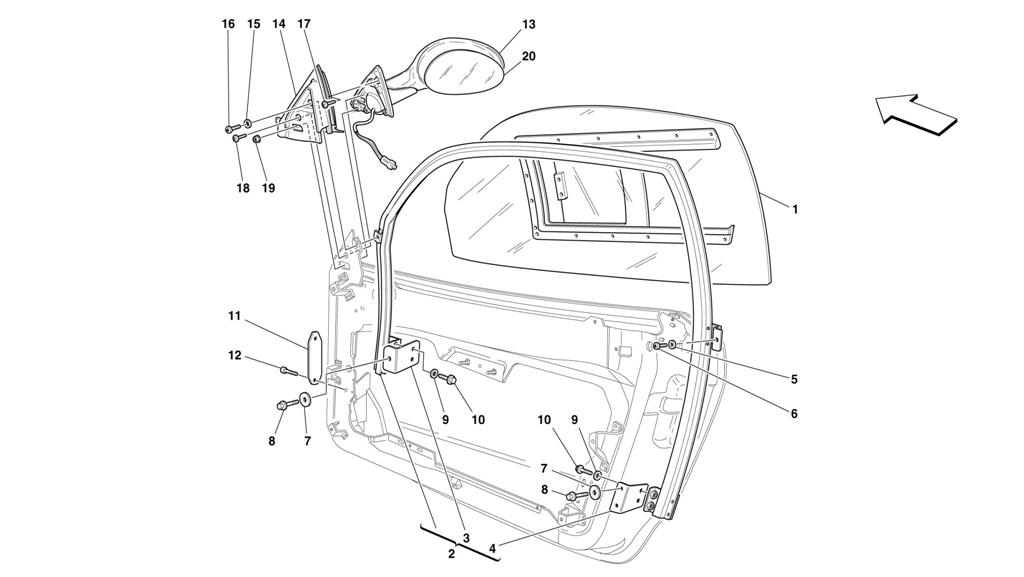

DOORS - WINDOW AND REARVIEW MIRROR

Go to Split View

DOORS - WINDOW AND REARVIEW MIRROR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65984000 *Qty: 1 R.H. DOOR GLASS WITH SLIDING ELEMENT Call
Location: 1 Prev | Next Part: 65984100 *Qty: 1 L.H. DOOR GLASS WITH SLIDING ELEMENT Call
Location: 2 Prev | Next Part: 65981100 *Qty: 1 R.H. DOOR FRAME $305.04
Location: 2 Prev | Next Part: 65981200 *Qty: 1 L.H. DOOR FRAME $305.04
Location: 3 Prev | Next Part: 66213700 *Qty: 1 R.H. FRONT BRACKET $156.81
Location: 3 Prev | Next Part: 66213800 *Qty: 1 L.H. FRONT BRACKET $156.81
Location: 4 Prev | Next Part: 66213900 *Qty: 1 R.H. REAR BRACKET $167.00
Location: 4 Prev | Next Part: 66214000 *Qty: 1 L.H. REAR BRACKET $167.00
Location: 5 Prev | Next Part: 12638124 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 13274014 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 12640624 *Qty: 6 WASHER $0.90
Location: 8 Prev | Next Part: 13836721 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 12643724 *Qty: 8 WASHER $0.90
Location: 10 Prev | Next Part: 13836324 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 65987300 *Qty: 2 PLATE $6.26
Location: 12 Prev | Next Part: 13272011 *Qty: 4 SCREW $60.79
Location: 13 Prev | Next Part: 65731810 *Qty: 1 COMPLETE L.H. OUTER REAR VIEW MIRROR $1,353.45
Location: 13 Prev | Next Part: 65731910 *Qty: 1 COMPLETE R.H. OUTER REAR VIEW MIRROR $1,353.45
Location: 14 Prev | Next Part: 65226000 *Qty: 1 R.H. OUTER MIRROR GASKET $287.10
Location: 14 Prev | Next Part: 65226100 *Qty: 1 L.H. OUTER MIRROR GASKET $287.10
Location: 15 Prev | Next Part: 13550277 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 13274117 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 65713200 *Qty: 2 SCREW $1.04
Location: 18 Prev | Next Part: 65366700 *Qty: 2 SCREW $1.26
Location: 19 Prev | Next Part: 13831801 *Qty: 4 NUT $0.90
Location: 20 Prev | Next Part: 66213200 *Qty: 1 R.H. OUTER REAR VIEW MIRROR GLASS $146.08
Location: 20 Prev | Next Part: 66213300 *Qty: 1 L.H. OUTER REAR VIEW MIRROR GLASS $146.08

* Quantity shown indicates the number of pieces used in the diagram.
