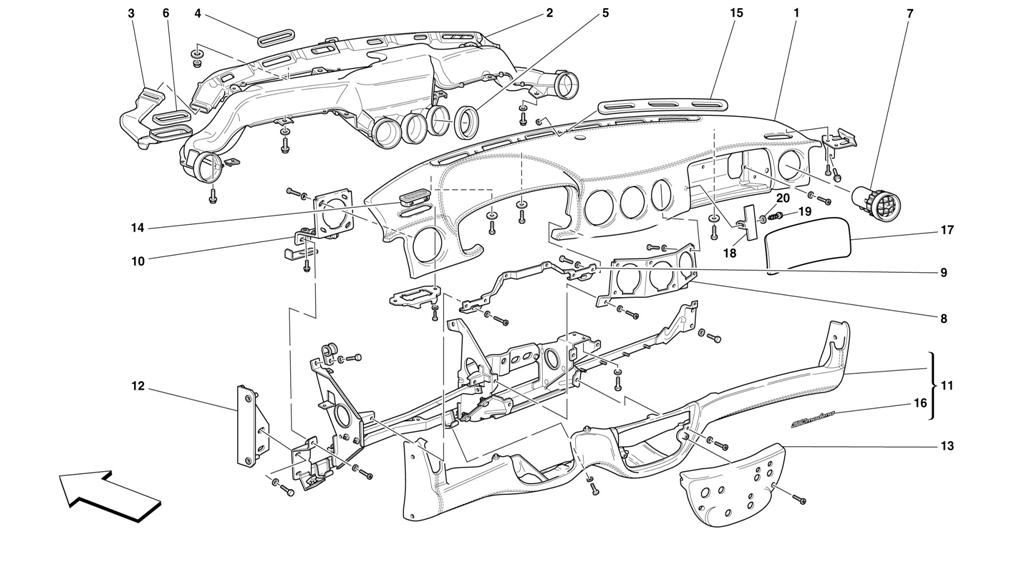

DASHBOARD

Go to Split View

DASHBOARD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66124000 *Qty: 1 UPPER SIDE UPHOLSTERED DASHBOARD $3,870.56
Location: 2 Prev | Next Part: 63352900 *Qty: 1 AIR DUCTING $317.69
Location: 3 Prev | Next Part: 65132300 *Qty: 1 R.H. SIDE DUCTING $14.28
Location: 3 Prev | Next Part: 65132400 *Qty: 1 L.H. SIDE DUCTING $14.28
Location: 4 Prev | Next Part: 66050600 *Qty: 6 GASKET $4.36
Location: 5 Prev | Next Part: 63353300 *Qty: 5 AIR OPENING GASKET $2.30
Location: 6 Prev | Next Part: 65132500 *Qty: 2 GASKET $0.90
Location: 7 Prev | Next Part: 65159900 *Qty: 5 AIR OPENING $210.40
Location: 8 Prev | Next Part: 63331600 *Qty: 1 PLATE FOR CENTRAL AIR DIFFUSER $38.11
Location: 9 Prev | Next Part: 65018600 *Qty: 1 BRACKET $15.05
Location: 10 Prev | Next Part: 65132600 *Qty: 1 R.H. DIFFUSER FASTENING PLATE Call
Location: 10 Prev | Next Part: 65132700 *Qty: 1 L.H. DIFFUSER FASTENING PLATE Call
Location: 11 Prev | Next Part: 66124900 *Qty: 1 COVERED LOWER DASHBOARD Call
Location: 12 Prev | Next Part: 64505700 *Qty: 1 R.H. SIDE SUPPORT Call
Location: 12 Prev | Next Part: 64505800 *Qty: 1 L.H. SIDE SUPPORT Call
Location: 13 Prev | Next Part: 65980700 *Qty: 1 DASH PANEL PLATE Call
Location: 14 Prev | Next Part: 65132900 *Qty: 1 L.H. DEFROSTING OUTLET PLATE $57.37
Location: 14 Prev | Next Part: 65132800 *Qty: 1 R.H. DEFROSTING OUTLET PLATE $57.37
Location: 15 Prev | Next Part: 65018200 *Qty: 1 R.H. AIR OUTLET PLATE $135.50
Location: 15 Prev | Next Part: 65018300 *Qty: 1 L.H. AIR OUTLET PLATE $135.50
Location: 16 Prev | Next Part: 65898600 *Qty: 1 360modena MARK $80.82
Location: 17 Prev | Next Part: 66181200 *Qty: 1 COVER Call
Location: 18 Prev | Next Part: 66216300 *Qty: 2 SUPPORT BRACKET $33.11
Location: 19 Prev | Next Part: 15901501 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 14497701 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
