DASHBOARD INSTRUMENTS

Go to Split View

DASHBOARD INSTRUMENTS

in cart

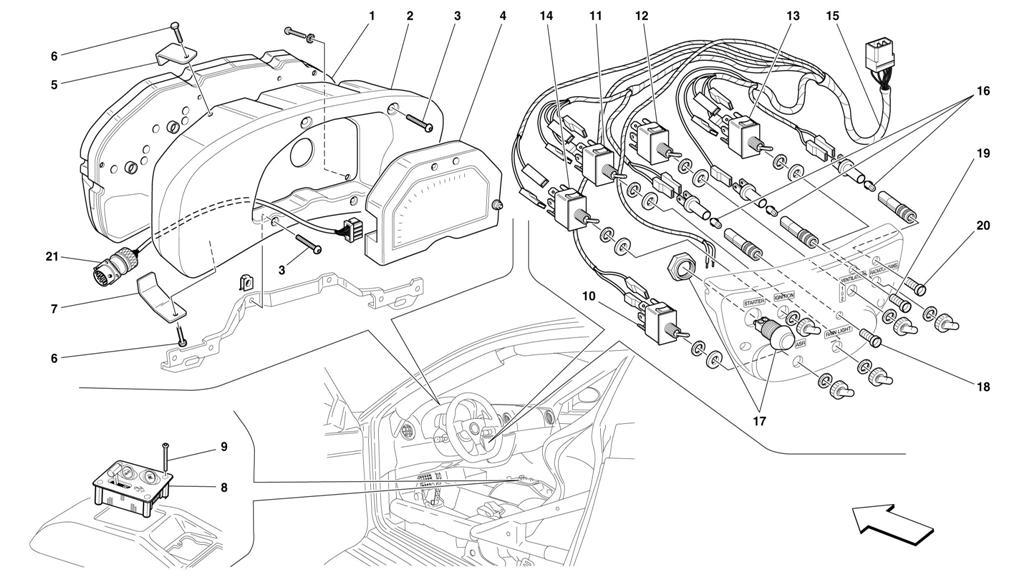

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182546 *Qty: 1 INSTRUMENT BOARD Call
Location: 2 Prev | Next Part: 183632 *Qty: 1 INSTRUMENT BEHIND DASH PANEL Call
Location: 3 Prev | Next Part: 14440021 *Qty: 4 SCREW $0.90
Location: 4 Prev | Next Part: 182930 *Qty: 1 DASH PANEL $8,530.00
Location: 5 Prev | Next Part: 64505500 *Qty: 2 UPPER BRACKET Call
Location: 6 Prev | Next Part: 60815200 *Qty: 4 SCREW $1.40
Location: 7 Prev | Next Part: 64505600 *Qty: 2 LOWER BRACKET Call
Location: 8 Prev | Next Part: 181067 *Qty: 1 GEARBOX CONTROL DASHBOARD Call
Location: 9 Prev | Next Part: 65404500 *Qty: 4 SCREW $1.33
Location: 10 Prev | Next Part: 183293 *Qty: 1 ASR SWITCH $29.34
Location: 11 Prev | Next Part: 183294 *Qty: 1 RAIN LIGHT SWITCH $29.34
Location: 12 Prev | Next Part: 183292 *Qty: 1 VENTILATION SWITCH $29.34
Location: 13 Prev | Next Part: 183291 *Qty: 1 RADIATOR FANS SWITCH $22.03
Location: 14 Prev | Next Part: 183290 *Qty: 1 IGNITION SWITCH $77.26
Location: 15 Prev | Next Part: 182855 *Qty: 1 DASHBOARD CONNECTION CABLES $247.27
Location: 16 Prev | Next Part: 183296 *Qty: 3 BULB Call
Location: 17 Prev | Next Part: 61665800 *Qty: 1 STARTER SWITCH $60.32
Location: 18 Prev | Next Part: 183299 *Qty: 1 GREEN WARNING LIGHT Call
Location: 19 Prev | Next Part: 183298 *Qty: 1 BLUE WARNING LIGHT $30.17
Location: 20 Prev | Next Part: 183297 *Qty: 1 BLUE WARNING LIGHT Call
Location: 21 Prev | Next Part: 184227 *Qty: 1 CABLE $1,582.87

* Quantity shown indicates the number of pieces used in the diagram.
