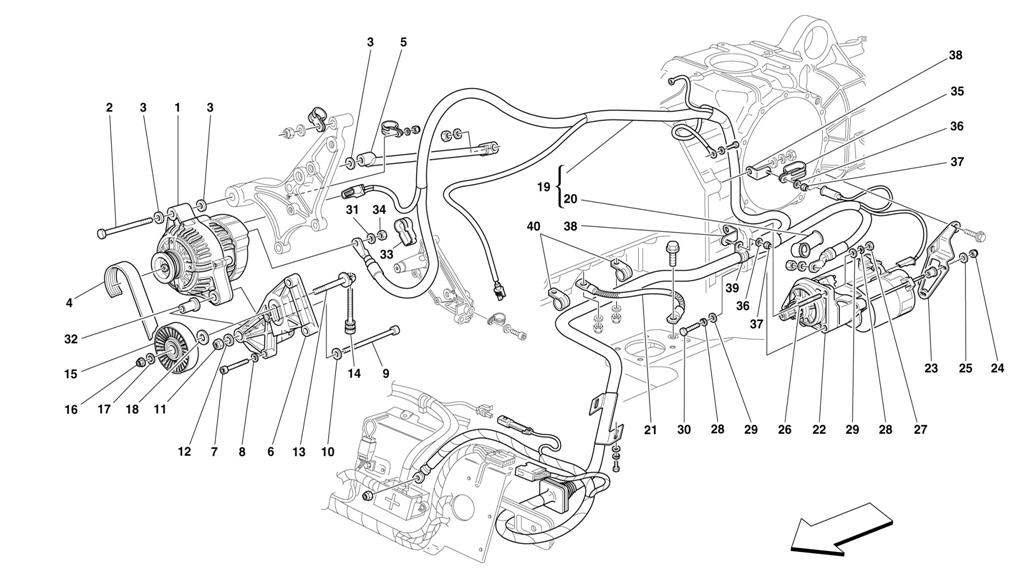

CURRENT GENERATOR - STARTING MOTOR

Go to Split View

CURRENT GENERATOR - STARTING MOTOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 179852 *Qty: 1 150 A. ALTERNATOR $986.23
Location: 2 Prev | Next Part: 15971321 *Qty: 1 SCREW $0.90
Location: 3 Prev | Next Part: 13550421 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: 201446 *Qty: 1 WATER PUMP AND GENERATOR CONTROL BELT $29.71
Location: 5 Prev | Next Part: 180493 *Qty: 1 REAR BRACKET $106.85
Location: 6 Prev | Next Part: 179704 *Qty: 1 LOWER SUPPORT Call
Location: 7 Prev | Next Part: 14306524 *Qty: 1 SCREW L=30mm $0.90
Location: 7 Prev | Next Part: 14306724 *Qty: 2 SCREW L=40mm $0.93
Location: 8 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 9 Prev | Next Part: 179664 *Qty: 1 SCREW $25.16
Location: 10 Prev | Next Part: 164469 *Qty: 1 WASHER $0.90
Location: 11 Prev | Next Part: 177764 *Qty: 1 NUT $0.90
Location: 12 Prev | Next Part: 126648 *Qty: 1 WASHER $2.57
Location: 13 Prev | Next Part: 172527 *Qty: 1 PIN $28.94
Location: 14 Prev | Next Part: 157289 *Qty: 1 SCREW $9.99
Location: 15 Prev | Next Part: 172537 *Qty: 1 BELT TIGHTENING PULLEY $119.54
Location: 16 Prev | Next Part: 133216 *Qty: 1 NUT $5.11
Location: 17 Prev | Next Part: 102695 *Qty: 1 WASHER $0.84
Location: 18 Prev | Next Part: 174508 *Qty: 1 WASHER $6.24
Location: 19 Prev | Next Part: 213155 *Qty: 1 COMPLETE CONNECTION CABLES FOR MOTOR UTILITIES $1,789.55
Location: 20 Prev | Next Part: 176903 *Qty: 1 PROTECTION BOOT $12.73
Location: 21 Prev | Next Part: 155073 *Qty: 1 CABLE FOR ENGINE-FRAME EARTH $14.28
Location: 22 Prev | Next Part: 183392 *Qty: 1 STARTER MOTOR $1,444.53
Location: 23 Prev | Next Part: 179719 *Qty: 1 STARTER MOTOR SUPPORTING BRACKET $44.88
Location: 24 Prev | Next Part: 132877 *Qty: 2 NUT $2.35
Location: 25 Prev | Next Part: 12643724 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 13517024 *Qty: 2 STUD $0.90
Location: 27 Prev | Next Part: 133989 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 29 Prev | Next Part: 10519624 *Qty: 3 WASHER $0.90
Location: 30 Prev | Next Part: 176212 *Qty: 1 SCREW $1.15
Location: 31 Prev | Next Part: 12601374 *Qty: 1 WASHER $0.90
Location: 32 Prev | Next Part: 164467 *Qty: 1 BUSHING $32.01
Location: 33 Prev | Next Part: 154803 *Qty: 1 PROTECTION BOOT $6.50
Location: 34 Prev | Next Part: 16102314 *Qty: 1 NUT $0.90
Location: 35 Prev | Next Part: 139512 *Qty: 1 BRACKET WITH SHEATH $3.01
Location: 36 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 102741 *Qty: 2 NUT $0.51
Location: 38 Prev | Next Part: 149694 *Qty: 2 FIXING BRACKET $7.91
Location: 39 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.97
Location: 40 Prev | Next Part: 10450690 *Qty: 2 BRACKET WITH SHEATH $0.90

* Quantity shown indicates the number of pieces used in the diagram.
