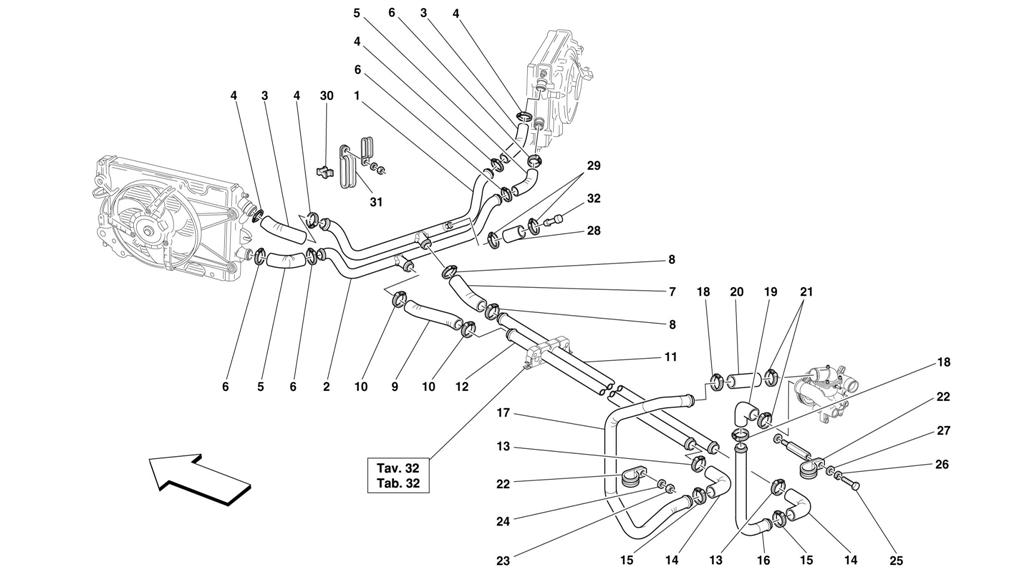

COOLING SYSTEM

Go to Split View

COOLING SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 181746 *Qty: 1 RETURN WATER PIPE $164.46
Location: 2 Prev | Next Part: 181790 *Qty: 1 DELIVERY WATER PIPE $136.42
Location: 3 Prev | Next Part: 181757 *Qty: 2 RETURN RUBBER PIPE $228.38
Location: 4 Prev | Next Part: 13000690 *Qty: 4 SCREW COLLAR Call
Location: 5 Prev | Next Part: 181802 *Qty: 2 DELIVERY RUBBER HOSE $213.82
Location: 6 Prev | Next Part: 13000690 *Qty: 4 SCREW COLLAR Call
Location: 7 Prev | Next Part: 181745 *Qty: 1 RETURN RUBBER HOSE $86.57
Location: 8 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR Call
Location: 9 Prev | Next Part: 181789 *Qty: 1 DELIVERY RUBBER HOSE $154.86
Location: 10 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR Call
Location: 11 Prev | Next Part: 181743 *Qty: 1 UNDERFLOOR RETURN ALUMINIUM TUBE $239.54
Location: 12 Prev | Next Part: 181788 *Qty: 1 UNDERFLOOR DELIVERY ALUMINIUM TUBE Call
Location: 13 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR Call
Location: 14 Prev | Next Part: 181742 *Qty: 2 RUBBER HOSE $156.43
Location: 15 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR Call
Location: 16 Prev | Next Part: 181734 *Qty: 1 RETURN ALUMINIUM TUBE $179.77
Location: 17 Prev | Next Part: 181786 *Qty: 1 DELIVERY ALUMINIUM TUBE Call
Location: 18 Prev | Next Part: 13000690 *Qty: 2 SCREW COLLAR Call
Location: 19 Prev | Next Part: 181733 *Qty: 1 RETURN RUBBER HOSE $159.29
Location: 20 Prev | Next Part: 181779 *Qty: 1 DELIVERY RUBBER HOSE $208.86
Location: 21 Prev | Next Part: 13000790 *Qty: 2 SCREW COLLAR $0.90
Location: 22 Prev | Next Part: 182301 *Qty: 2 BRACKET WITH SHEATH $23.40
Location: 23 Prev | Next Part: 102741 *Qty: 1 NUT $0.51
Location: 24 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 25 Prev | Next Part: 10979414 *Qty: 1 SCREW $0.90
Location: 26 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 12644424 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 183398 *Qty: 1 SLEEVE $60.95
Location: 29 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.90
Location: 30 Prev | Next Part: 183641 *Qty: 2 RUBBER SPACER $5.22
Location: 31 Prev | Next Part: 183642 *Qty: 2 BRACKET WITH SHEATH $27.58
Location: 32 Prev | Next Part: 183397 *Qty: 1 PLUG $6.91

* Quantity shown indicates the number of pieces used in the diagram.
