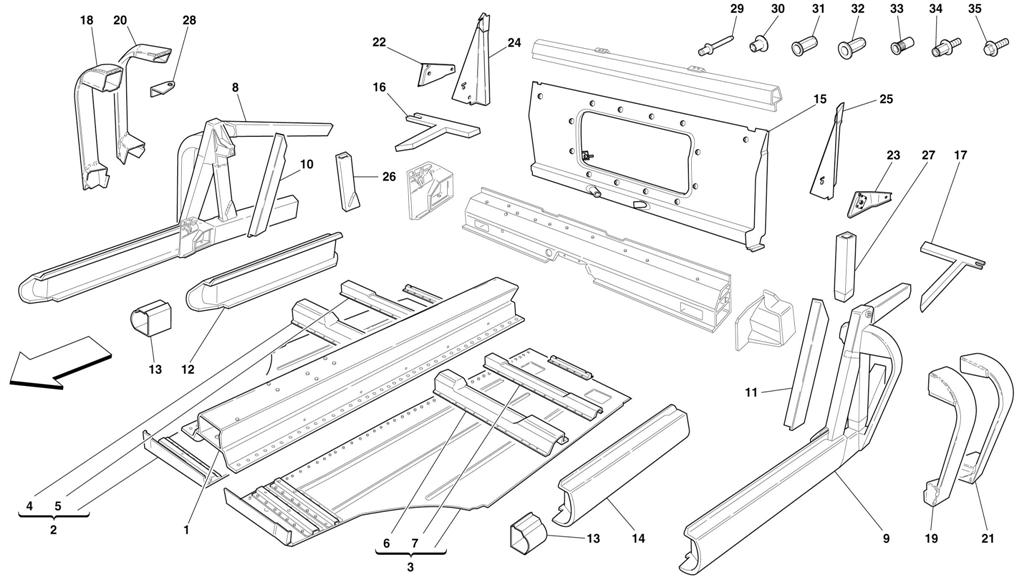

CENTRAL SIDE ELEMENTS AND PLATES

Go to Split View

CENTRAL SIDE ELEMENTS AND PLATES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65942800 *Qty: 1 COMPLETE TUNNEL Call
Location: 2 Prev | Next Part: 65942600 *Qty: 1 COMPLETE R.H. LATERAL HALF FLOOR Call
Location: 3 Prev | Next Part: 66278600 *Qty: 1 COMPLETE L.H. LATERAL HALF FLOOR Call
Location: 4 Prev | Next Part: 166250 *Qty: 1 R.H. FRONT CROSS MEMBER Call
Location: 5 Prev | Next Part: 166251 *Qty: 1 R.H. REAR CROSS MEMBER Call
Location: 6 Prev | Next Part: 166150 *Qty: 1 L.H. FRONT CROSS MEMBER $165.93
Location: 7 Prev | Next Part: 185110 *Qty: 1 L.H. REAR CROSS MEMBER Call
Location: 8 Prev | Next Part: 65940900 *Qty: 1 R.H. LATERAL REAR CROSSMEMBAR Call
Location: 9 Prev | Next Part: 65941000 *Qty: 1 L.H. LATERAL REAR CROSSMEMBAR Call
Location: 10 Prev | Next Part: 166232 *Qty: 1 R.H. REINFORCEMENT FRAME Call
Location: 11 Prev | Next Part: 166132 *Qty: 1 L.H. REINFORCEMENT FRAME Call
Location: 12 Prev | Next Part: 65942400 *Qty: 1 R.H. CROSSMEMBER Call
Location: 13 Prev | Next Part: 181981 *Qty: 0 CORE FOR REPAIR Call
Location: 14 Prev | Next Part: 65942500 *Qty: 1 L.H. CROSSMEMBER Call
Location: 15 Prev | Next Part: 166343 *Qty: 1 COMPLETE REAR SHIELD Call
Location: 16 Prev | Next Part: 64811000 *Qty: 1 R.H. REAR FIXING FRAME Call
Location: 17 Prev | Next Part: 64811100 *Qty: 1 L.H. REAR FIXING FRAME Call
Location: 18 Prev | Next Part: 65153400 *Qty: 1 R.H. FRONT SIDE MOLDING $189.99
Location: 19 Prev | Next Part: 65153500 *Qty: 1 L.H. FRONT SIDE MOLDING $282.14
Location: 20 Prev | Next Part: 65998100 *Qty: 1 R.H. REAR SIDE MOLDING $272.62
Location: 21 Prev | Next Part: 65998200 *Qty: 1 L.H. REAR SIDE MOLDING $286.42
Location: 22 Prev | Next Part: 64803900 *Qty: 1 R.H. REWINDER FIXING REINFORCEMENT Call
Location: 23 Prev | Next Part: 64804000 *Qty: 1 L.H. REWINDER FIXING REINFORCEMENT Call
Location: 24 Prev | Next Part: 64803500 *Qty: 1 R.H. LATERAL MOLDING Call
Location: 25 Prev | Next Part: 64803600 *Qty: 1 L.H. LATERAL MOLDING Call
Location: 26 Prev | Next Part: 66051200 *Qty: 1 COMPLETE R.H. REAR PANEL $238.20
Location: 27 Prev | Next Part: 66051100 *Qty: 1 COMPLETE L.H. REAR PANEL Call
Location: 28 Prev | Next Part: 177542 *Qty: 1 BRACKET FOR OIL RADIATOR Call
Location: 29 Prev | Next Part: 66292200 *Qty: 0 STANDARD HEAD RIVET $1.63
Location: 29 Prev | Next Part: 66292300 *Qty: 0 HALF REPOTTED HEAD RIVET $2.40
Location: 30 Prev | Next Part: 65133800 *Qty: 0 RIVET L. 6,4 mm $0.90
Location: 31 Prev | Next Part: 15180411 *Qty: 0 BLIND ESAGONAL RIVET $1.04
Location: 31 Prev | Next Part: 15624211 *Qty: 0 ESAGONAL RIVET M4 $1.26
Location: 31 Prev | Next Part: 15624311 *Qty: 0 ESAGONAL RIVET M5 $5.78
Location: 31 Prev | Next Part: 15624411 *Qty: 0 ESAGONAL RIVET M6 $0.90
Location: 31 Prev | Next Part: 15624511 *Qty: 0 ESAGONAL RIVET M8 $0.90
Location: 32 Prev | Next Part: 65151200 *Qty: 0 RIVET M6 $1.04
Location: 33 Prev | Next Part: 65135000 *Qty: 0 RIVET M8 $1.54
Location: 33 Prev | Next Part: 65319800 *Qty: 0 RIVET M8 BLIND $1.06
Location: 33 Prev | Next Part: 65930400 *Qty: 0 RIVET M6 $1.26
Location: 33 Prev | Next Part: 166101 *Qty: 0 RIVET M4 $1.85
Location: 34 Prev | Next Part: 65065400 *Qty: 0 STUD ESAGONAL HEAD M6 $4.16
Location: 35 Prev | Next Part: 13836971 *Qty: 0 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
