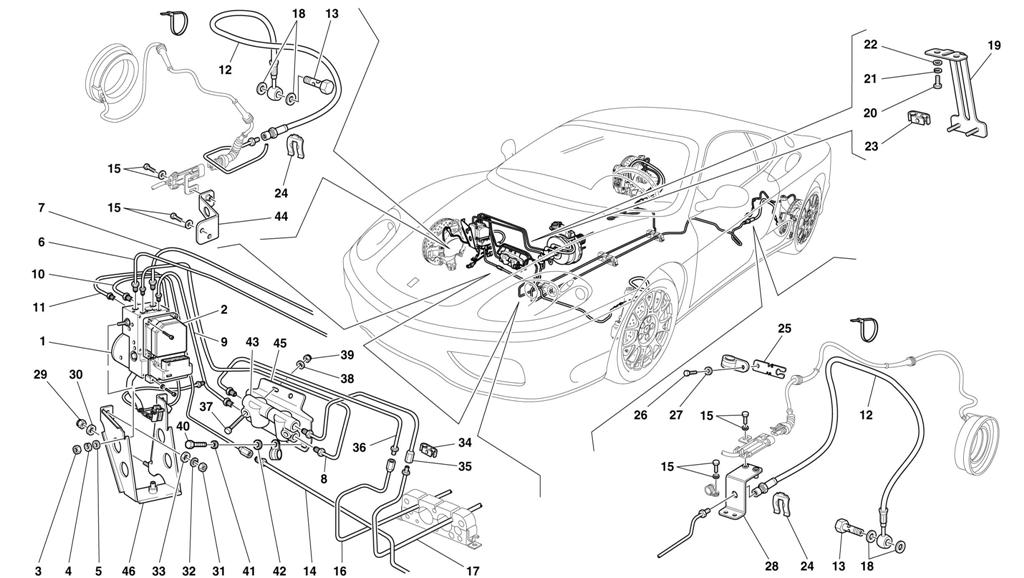

BRAKE SYSTEM

Go to Split View

BRAKE SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 168828 *Qty: 1 ABS/ASR HYDRAULIC CONTROL STATION Call
Location: 2 Prev | Next Part: 185147 *Qty: 1 ABS/ASR/EBD ELECTRONIC CONTROL STATION $2,870.53
Location: 3 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 4 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 5 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 6 Prev | Next Part: 178427 *Qty: 1 BRAKE PIPE FROM FRONT PUMP TO CONTROL STATION $22.23
Location: 7 Prev | Next Part: 178426 *Qty: 1 BRAKE PIPE FROM REAR PUMP TO CONTROL STATION $22.14
Location: 8 Prev | Next Part: 182919 *Qty: 1 PIPE FROM CONTROL STATION TO L.H. BRAKING REGULATOR Call
Location: 9 Prev | Next Part: 182917 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. BRAKING REGULATOR Call
Location: 10 Prev | Next Part: 178463 *Qty: 1 PIPE FROM CONTROL STATION TO INTERMEDIATE PIPE Call
Location: 11 Prev | Next Part: 164308 *Qty: 1 PIPE FROM CONTROL STATION TO R.H. FRONT BRAKE PIPE $23.30
Location: 12 Prev | Next Part: 183100 *Qty: 4 BRAKES HOSE $432.81
Location: 13 Prev | Next Part: 113670 *Qty: 4 UNION $77.88
Location: 14 Prev | Next Part: 164309 *Qty: 1 INTERMEDIATE PIPE Call
Location: 15 Prev | Next Part: 11625724 *Qty: 8 SCREW WITH WASHER $1.15
Location: 16 Prev | Next Part: 180361 *Qty: 1 PIPE TO R.H. REAR HOSE $169.52
Location: 17 Prev | Next Part: 180362 *Qty: 1 PIPE TO L.H. REAR HOSE $32.26
Location: 18 Prev | Next Part: 10260160 *Qty: 8 GASKET $1.11
Location: 19 Prev | Next Part: 177945 *Qty: 1 BRAKES PIPES FIXING BRACKET $5.95
Location: 20 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 14488624 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 169476 *Qty: 2 CLIP $3.69
Location: 24 Prev | Next Part: 116374 *Qty: 8 CLIP $2.96
Location: 25 Prev | Next Part: 179236 *Qty: 2 SUPPORT FOR CABLE Call
Location: 26 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 12605371 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: 178939 *Qty: 2 SUPPORT $48.53
Location: 29 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 30 Prev | Next Part: 12638524 *Qty: 1 WASHER $0.90
Location: 31 Prev | Next Part: 16100814 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 169476 *Qty: 4 CLIP $3.69
Location: 35 Prev | Next Part: 182920 *Qty: 1 PIPE FROM BRAKING REGULATOR TO L.H. REAR JOINT Call
Location: 36 Prev | Next Part: 182918 *Qty: 1 PIPE FROM BRAKING REGULATOR TO R.H. REAR JOINT Call
Location: 37 Prev | Next Part: 16044224 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 14496524 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 40 Prev | Next Part: 10902424 *Qty: 3 SCREW $0.90
Location: 41 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 42 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 43 Prev | Next Part: 172979 *Qty: 2 BRAKING REGULATOR $151.93
Location: 44 Prev | Next Part: 179237 *Qty: 1 R.H. SUPPORT $5.59
Location: 44 Prev | Next Part: 179096 *Qty: 1 L.H. SUPPORT $5.59
Location: 45 Prev | Next Part: 182549 *Qty: 1 BRACKET FOR BRAKING REGULATOR SUPPORTING Call
Location: 46 Prev | Next Part: 179412 *Qty: 1 CONTROL STATION SUPPORTING BRACKET $18.14

* Quantity shown indicates the number of pieces used in the diagram.
