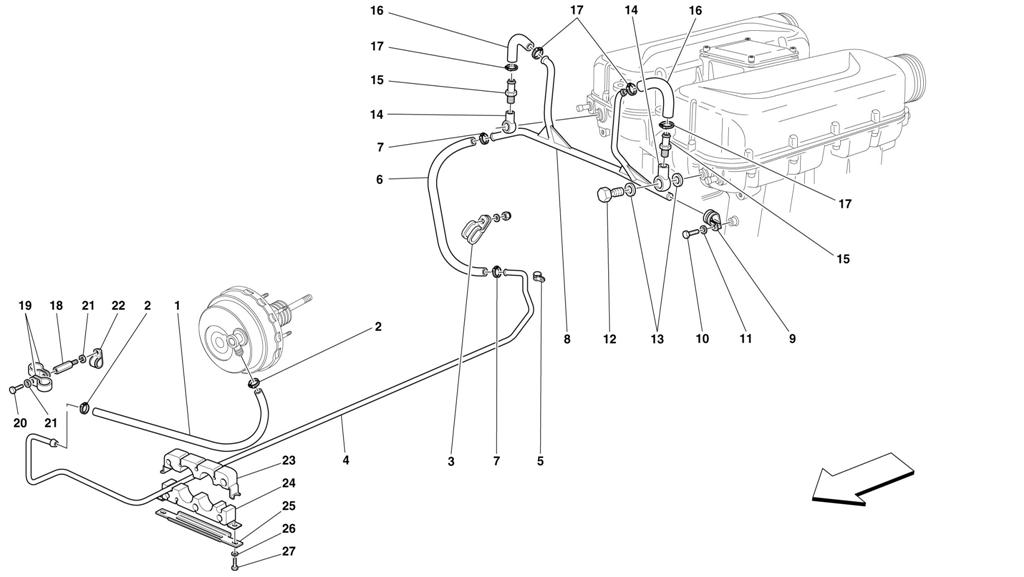

BRAKE BOOSTER SYSTEM

Go to Split View

BRAKE BOOSTER SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 177947 *Qty: 1 RUBBER HOSE TO BRAKE BOOSTER $46.42
Location: 2 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 3 Prev | Next Part: 61712500 *Qty: 2 BRACKET $2.23
Location: 4 Prev | Next Part: 181727 *Qty: 1 BRAKE BOOSTER UNDERFLOOR TUBE Call
Location: 5 Prev | Next Part: 10450190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 6 Prev | Next Part: 168386 *Qty: 1 RUBBER HOSE $29.72
Location: 7 Prev | Next Part: 13000390 *Qty: 2 SCREW COLLAR $0.97
Location: 8 Prev | Next Part: 182776 *Qty: 1 PIPE FOR BRAKE BOOSTER FROM MANIFOLDS $123.63
Location: 9 Prev | Next Part: 10441390 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 10 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 12601279 *Qty: 2 WASHER Superseded
Location: 12 Prev | Next Part: 152417 *Qty: 2 UNION $115.93
Location: 13 Prev | Next Part: 10259960 *Qty: 4 GASKET $0.90
Location: 14 Prev | Next Part: 179419 *Qty: 2 SWINGING UNION $34.50
Location: 15 Prev | Next Part: 147978 *Qty: 2 NONRETURN VALVE $19.14
Location: 16 Prev | Next Part: 179394 *Qty: 2 RUBBER HOSE $13.78
Location: 17 Prev | Next Part: 178052 *Qty: 4 CLAMP $1.58
Location: 18 Prev | Next Part: 178772 *Qty: 1 STUD $10.67
Location: 19 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 20 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 22 Prev | Next Part: 10441690 *Qty: 1 BRACKET $0.90
Location: 23 Prev | Next Part: 183048 *Qty: 3 UPPER SUPPORT $33.13
Location: 24 Prev | Next Part: 183049 *Qty: 3 LOWER SUPPORT $27.93
Location: 25 Prev | Next Part: 178585 *Qty: 3 SMALL PLATE $2.88
Location: 26 Prev | Next Part: 14499324 *Qty: 6 WASHER Superseded
Location: 27 Prev | Next Part: 10902424 *Qty: 6 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
