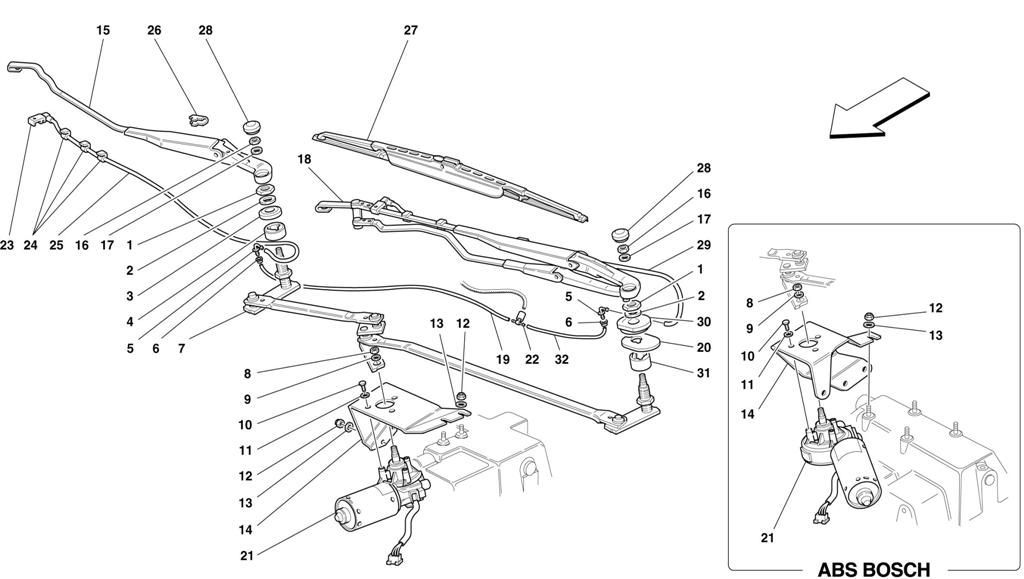

WINDSHIELD WIPER AND CONTROLS

Go to Split View

WINDSHIELD WIPER AND CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 62661300 *Qty: 2 RING NUT $101.69
Location: 2 Prev | Next Part: 63288800 *Qty: 1 WASHER (DRIVER SIDE PIN) $6.10
Location: 2 Prev | Next Part: 62661100 *Qty: 1 WASHER (PASSENGER SIDE PIN) $1.29
Location: 3 Prev | Next Part: 62661000 *Qty: 1 SPACER $1.67
Location: 4 Prev | Next Part: 62660900 *Qty: 1 SPACER $62.49
Location: 5 Prev | Next Part: 62830100 *Qty: 2 UNION $1.13
Location: 6 Prev | Next Part: 61444900 *Qty: 2 BUSHING $0.97
Location: 7 Prev | Next Part: 62885800 *Qty: 1 WINDSHIELD WIPER LEVERAGE -Not for GD $367.05
Location: 7 Prev | Next Part: 62916100 *Qty: 1 WINDSHIELD WIPER LEVERAGE -Valid for GD $492.28
Location: 8 Prev | Next Part: 62885600 *Qty: 1 NUT $2.59
Location: 9 Prev | Next Part: 62885700 *Qty: 1 WASHER Call
Location: 10 Prev | Next Part: 10902224 *Qty: 3 SCREW $0.90
Location: 11 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 12 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 12647624 *Qty: 4 WASHER $0.90
Location: 14 Prev | Next Part: 62512100 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Not for GD -Not for ABS BOSCH and 355 F1 cars $30.47
Location: 14 Prev | Next Part: 144091 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Valid for GD -Not for ABS BOSCH and 355 F1 cars $490.38
Location: 14 Prev | Next Part: 170630 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Not for GD -Valid for ABS BOSCH and 355 F1 cars $319.23
Location: 14 Prev | Next Part: 170635 *Qty: 1 WINDSHIELD WIPER MOTOR FASTENING BRACKET -Valid for GD -Valid for ABS BOSCH and 355 F1 cars $574.62
Location: 15 Prev | Next Part: 64610200 *Qty: 1 PASSENGER SIDE ARM -Not for GD Call
Location: 15 Prev | Next Part: 64610600 *Qty: 1 PASSENGER SIDE ARM -Valid for GD Call
Location: 16 Prev | Next Part: 16102314 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 64610300 *Qty: 1 DRIVER SIDE ARM -Not for GD $306.22
Location: 18 Prev | Next Part: 64610500 *Qty: 1 DRIVER SIDE ARM -Valid for GD Call
Location: 19 Prev | Next Part: 62834300 *Qty: 1 PIPE FROM UNION TO ARM (PASSENGER SIDE) $2.38
Location: 20 Prev | Next Part: 62990900 *Qty: 1 GASKET $2.44
Location: 21 Prev | Next Part: 157751 *Qty: 1 WINDSHIELD WIPER MOTOR Call
Location: 22 Prev | Next Part: 64891600 *Qty: 1 UNION $3.32
Location: 23 Prev | Next Part: 61537500 *Qty: 2 JET FOR WINDOW WASHING -Valid for GD $34.61
Location: 23 Prev | Next Part: 61541500 *Qty: 2 JET FOR WINDOW WASHING -Not for GD $33.39
Location: 24 Prev | Next Part: 61559400 *Qty: 5 CLIP $3.10
Location: 25 Prev | Next Part: 63305700 *Qty: 1 PIPE ON PASSENGER SIDE ARM $14.41
Location: 26 Prev | Next Part: 63305900 *Qty: 2 BRACKET $24.12
Location: 27 Prev | Next Part: 67546800 *Qty: 1 DRIVER SIDE WIPER BRUSH -Not for GD Call
Location: 27 Prev | Next Part: 67546700 *Qty: 1 PASSENGER SIDE WIPER BRUSH $40.00
Location: 27 Prev | Next Part: 67546900 *Qty: 1 DRIVER SIDE WIPER BRUSH -Valid for GD $441.23
Location: 28 Prev | Next Part: 62663400 *Qty: 2 ARM SMALL COVER $0.90
Location: 29 Prev | Next Part: 63305800 *Qty: 1 PIPE ON PILOT SIDE ARM $7.64
Location: 30 Prev | Next Part: 62661200 *Qty: 1 PANTOGRAPH FIXING PLATE -Not for GD $431.67
Location: 30 Prev | Next Part: 62886500 *Qty: 1 PANTOGRAPH FIXING PLATE -Valid for GD Call
Location: 31 Prev | Next Part: 62657000 *Qty: 1 SPACER $155.14
Location: 32 Prev | Next Part: 64891700 *Qty: 1 PIPE FROM UNION TO ARM (DRIVER SIDE) $1.83

* Quantity shown indicates the number of pieces used in the diagram.
