TIMING - CONTROLS

Go to Split View

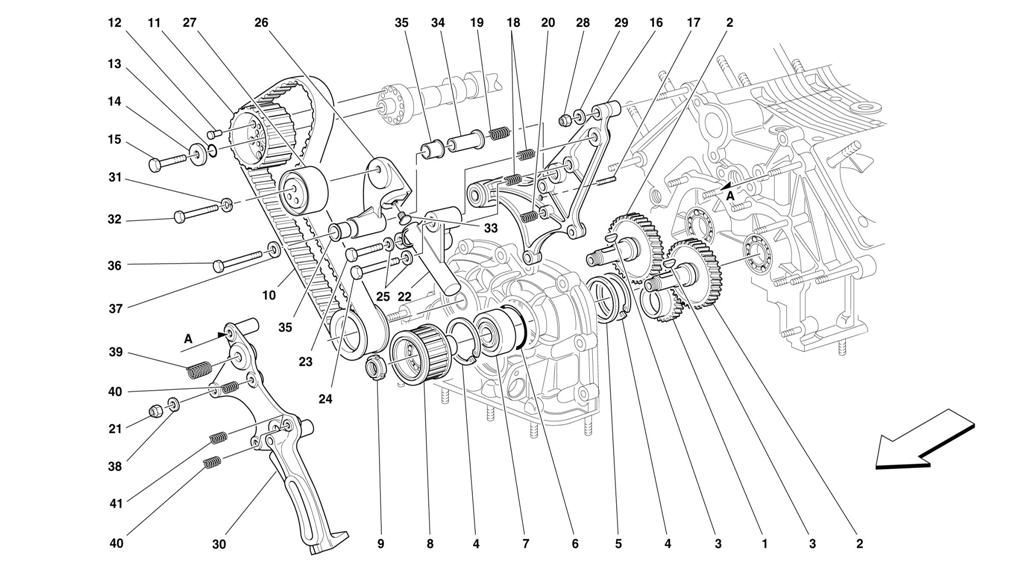

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163949 *Qty: 1 DRIVING GEAR $386.82
Location: 2 Prev | Next Part: 163950 *Qty: 2 DRIVEN GEAR $1,276.47
Location: 3 Prev | Next Part: 10206320 *Qty: 2 DISC KEY $1.90
Location: 4 Prev | Next Part: 11060576 *Qty: 4 SEEGER RING $1.88
Location: 5 Prev | Next Part: 133377 *Qty: 2 WASHER $1.13
Location: 6 Prev | Next Part: 136140 *Qty: 2 O.R. GASKET $1.57
Location: 7 Prev | Next Part: 170787 *Qty: 2 BEARING -Valid after stock exhaustion of 144690 $139.00
Location: 8 Prev | Next Part: 154238 *Qty: 2 DRIVING PULLEY $375.51
Location: 9 Prev | Next Part: 104919 *Qty: 2 RING NUT $5.85
Location: 10 Prev | Next Part: 184986 *Qty: 2 TIMING CONTROL BELT $112.60
Location: 11 Prev | Next Part: 157705 *Qty: 4 DRIVEN PULLEY $853.99
Location: 12 Prev | Next Part: 106203 *Qty: 4 CENTERING DOWEL $8.60
Location: 13 Prev | Next Part: 114808 *Qty: 4 O.R. GASKET $5.50
Location: 14 Prev | Next Part: 117274 *Qty: 4 WASHER $4.23
Location: 15 Prev | Next Part: 146540 *Qty: 4 SCREW $8.54
Location: 16 Prev | Next Part: 157393 *Qty: 1 GENERATOR SUPPORT UPPER COMPLETE BRACKET $413.07
Location: 17 Prev | Next Part: 11499924 *Qty: 1 STUD Call
Location: 18 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 19 Prev | Next Part: 13526170 *Qty: 1 THREADED INSERT $6.47
Location: 20 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27
Location: 21 Prev | Next Part: 104030 *Qty: 3 NUT $0.90
Location: 22 Prev | Next Part: 157356 *Qty: 2 HYDRAULIC TIGHTENER $358.49
Location: 23 Prev | Next Part: 125506 *Qty: 2 SCREW $1.53
Location: 24 Prev | Next Part: 16044224 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 70000973 *Qty: 2 BELT TIGHTENER SUPPORT Call
Location: 27 Prev | Next Part: 167464 *Qty: 2 COMPLETE BELT TIGHTENING PULLEY Superseded
Location: 28 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 29 Prev | Next Part: 12601374 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 178256 *Qty: 1 COMPRESSOR SUPPORT COMPLETE BRACKET -See also Pos. 4 Table 54 $957.68
Location: 31 Prev | Next Part: 127497 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 11307024 *Qty: 2 SCREW $1.25
Location: 33 Prev | Next Part: 158156 *Qty: 1 PAWL $255.41
Location: 34 Prev | Next Part: 158138 *Qty: 2 BUSHING $85.11
Location: 35 Prev | Next Part: 159425 *Qty: 4 BUSHING $4.20
Location: 36 Prev | Next Part: 11288034 *Qty: 2 SCREW $1.58
Location: 37 Prev | Next Part: 12626224 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 39 Prev | Next Part: 13526170 *Qty: 1 THREADED INSERT $6.47
Location: 40 Prev | Next Part: 13525870 *Qty: 2 THREADED INSERT $3.43
Location: 41 Prev | Next Part: 13525570 *Qty: 1 THREADED INSERT $3.27

* Quantity shown indicates the number of pieces used in the diagram.
