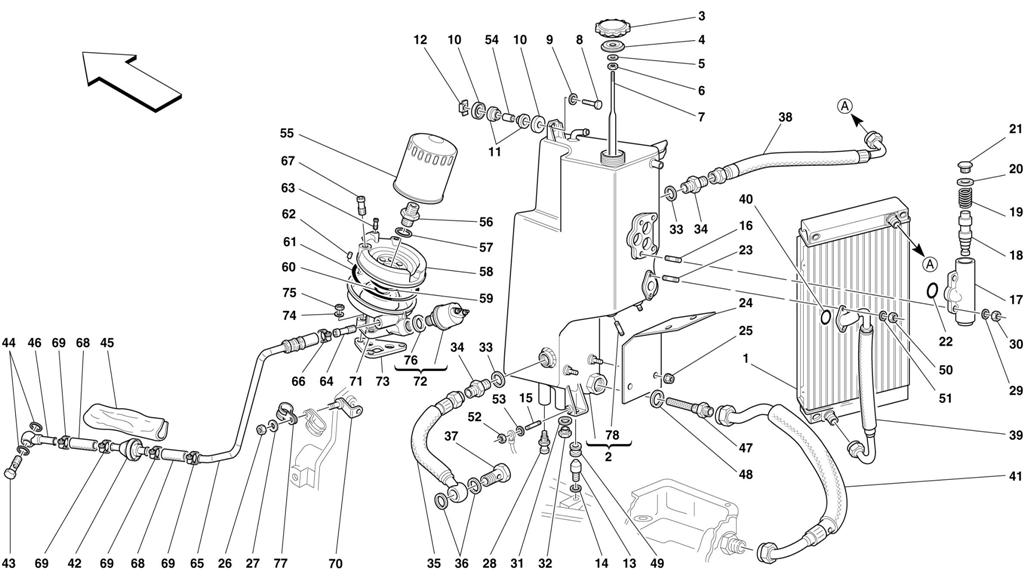

LUBRICATION SYSTEM

Go to Split View

LUBRICATION SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 152733 *Qty: 1 OIL RADIATOR $2,618.99
Location: 2 Prev | Next Part: 170063 *Qty: 1 OIL TANK -Valid for 355 F1 till car Ass. Nr. 29613 $1,865.97
Location: 2 Prev | Next Part: 178345 *Qty: 1 OIL TANK -Valid for 355 F1 from car Ass. Nr. 29614 $1,340.96
Location: 3 Prev | Next Part: 145623 *Qty: 1 TANK PLUG $278.17
Location: 4 Prev | Next Part: 180585 *Qty: 1 GASKET -Valid after stock exhaustion of 145625 $89.81
Location: 5 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 145112 *Qty: 1 OIL LEVEL ROD $319.25
Location: 8 Prev | Next Part: 16043834 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 107979 *Qty: 4 CUP $0.90
Location: 11 Prev | Next Part: 107978 *Qty: 4 PAD $1.46
Location: 12 Prev | Next Part: 141530 *Qty: 2 NUT WITH CAGE $0.90
Location: 13 Prev | Next Part: 125708 *Qty: 1 SUPPORT PIN Call
Location: 14 Prev | Next Part: 108242 *Qty: 1 WASHER $1.72
Location: 15 Prev | Next Part: 11000824 *Qty: 1 STUD $3.62
Location: 16 Prev | Next Part: 13541024 *Qty: 4 STUD $0.90
Location: 17 Prev | Next Part: 160759 *Qty: 1 THERMOSTAT VALVE BODY $212.25
Location: 18 Prev | Next Part: 163951 *Qty: 1 THERMOSTAT VALVE Call
Location: 19 Prev | Next Part: 136867 *Qty: 1 SPRING $17.51
Location: 20 Prev | Next Part: 144485 *Qty: 1 GASKET $28.20
Location: 21 Prev | Next Part: 136868 *Qty: 1 PLUG $73.36
Location: 22 Prev | Next Part: 139934 *Qty: 3 GASKET O.R. $1.13
Location: 23 Prev | Next Part: 13540824 *Qty: 2 STUD $0.90
Location: 24 Prev | Next Part: 175450 *Qty: 1 ANTI-HEAT SHIELD Call
Location: 25 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90
Location: 26 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 27 Prev | Next Part: 12601274 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 148676 *Qty: 1 OIL TEMP. TRANSMITTER -Valid for AUS -Valid for 355 F1 till car Ass. Nr. 29613 Call
Location: 28 Prev | Next Part: 107576 *Qty: 1 OIL TEMP. THERMISTOR -Not for AUS -Valid for 355 F1 till car Ass. Nr. 29613 $135.30
Location: 29 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 30 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 31 Prev | Next Part: 10257060 *Qty: 1 GASKET $0.90
Location: 32 Prev | Next Part: 10300771 *Qty: 1 PLUG $17.00
Location: 33 Prev | Next Part: 144485 *Qty: 2 GASKET $28.20
Location: 34 Prev | Next Part: 145085 *Qty: 2 UNION $25.63
Location: 35 Prev | Next Part: 145040 *Qty: 1 HOSE FROM ENGINE TO RESERVOIR $820.05
Location: 36 Prev | Next Part: 144487 *Qty: 2 GASKET $33.86
Location: 37 Prev | Next Part: 129809 *Qty: 1 UNION $81.92
Location: 38 Prev | Next Part: 141820 *Qty: 1 HOSE FROM RESERVOIR TO RADIATOR Call
Location: 39 Prev | Next Part: 145041 *Qty: 1 HOSE FROM RADIATOR TO RESERVOIR Call
Location: 40 Prev | Next Part: 139934 *Qty: 1 O.R. GASKET $1.13
Location: 41 Prev | Next Part: 145039 *Qty: 1 HOSE FROM RESERVOIR TO OIL PUMP $1,471.94
Location: 42 Prev | Next Part: 164548 *Qty: 1 ONE-WAY VALVE $35.18
Location: 43 Prev | Next Part: 153419 *Qty: 1 UNION $72.98
Location: 44 Prev | Next Part: 10257060 *Qty: 2 GASKET $0.90
Location: 45 Prev | Next Part: 161353 *Qty: 1 PROTECTION $98.60
Location: 46 Prev | Next Part: 161065 *Qty: 1 ORIENTABLE UNION $70.20
Location: 47 Prev | Next Part: 145086 *Qty: 1 FILTER ASSEMBLY $433.92
Location: 48 Prev | Next Part: 145191 *Qty: 1 GASKET $155.71
Location: 49 Prev | Next Part: 103516 *Qty: 1 CABLE GROMMET $11.59
Location: 50 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 51 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 52 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 53 Prev | Next Part: 149951 *Qty: 1 WASHER Superseded
Location: 54 Prev | Next Part: 107980 *Qty: 2 SPACER $7.64
Location: 55 Prev | Next Part: 197654 *Qty: 1 OIL FILTER CARTRIDGE $44.00
Location: 56 Prev | Next Part: 157679 *Qty: 1 UNION $16.29
Location: 57 Prev | Next Part: 10246160 *Qty: 1 GASKET $1.10
Location: 58 Prev | Next Part: 157678 *Qty: 1 OIL FILTER COVER $141.25
Location: 59 Prev | Next Part: 157869 *Qty: 1 O.R. GASKET $1.46
Location: 60 Prev | Next Part: 157872 *Qty: 1 O.R. GASKET Call
Location: 61 Prev | Next Part: 157870 *Qty: 1 O.R. GASKET $3.15
Location: 62 Prev | Next Part: 109657 *Qty: 1 CENTERING DOWEL $8.28
Location: 63 Prev | Next Part: 117715 *Qty: 1 UNION $5.48
Location: 64 Prev | Next Part: 154525 *Qty: 1 UNION Call
Location: 65 Prev | Next Part: 161061 *Qty: 1 OIL EXHAUST TUBE $276.61
Location: 66 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 67 Prev | Next Part: 157681 *Qty: 2 UNION $7.66
Location: 68 Prev | Next Part: 161141 *Qty: 2 RUBBER HOSE $4.99
Location: 69 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR $0.90
Location: 70 Prev | Next Part: 149694 *Qty: 1 PIPE FIXING BRACKET $7.67
Location: 71 Prev | Next Part: 157677 *Qty: 1 OIL FILTER BASE-PLATE $2,190.24
Location: 72 Prev | Next Part: 135940 *Qty: 1 COMPL. OIL PRESSURE TRANSMITTER $202.64
Location: 73 Prev | Next Part: 188052 *Qty: 1 GASKET $9.27
Location: 74 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 75 Prev | Next Part: 104030 *Qty: 3 NUT $0.90
Location: 76 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 77 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 78 Prev | Next Part: 11000824 *Qty: 4 STUD $3.62

* Quantity shown indicates the number of pieces used in the diagram.
