HYDRAULIC SYSTEM FOR ABS BOSCH -VALID FOR ABS BOSCH AND 355 F1 CARS-

Go to Split View

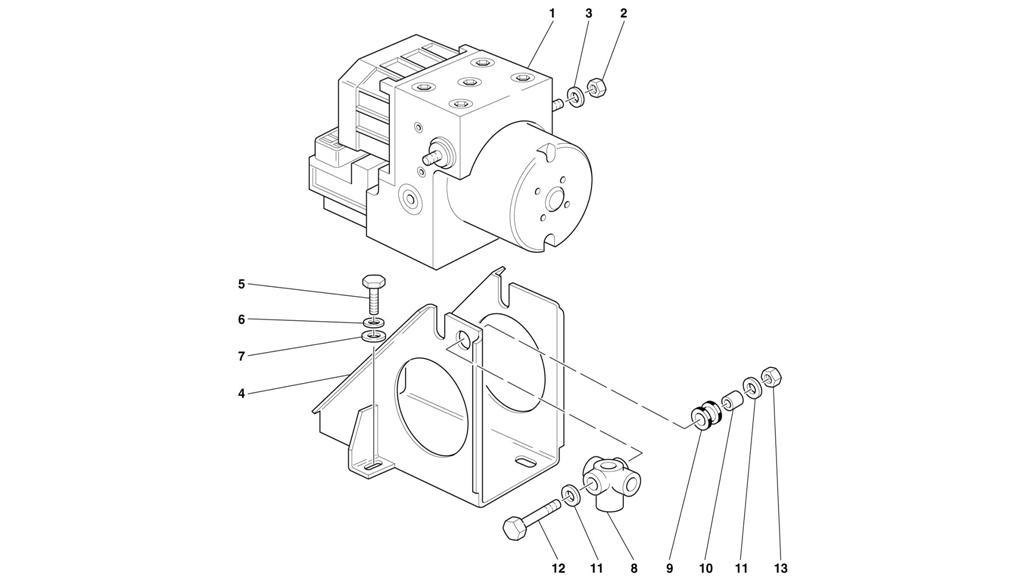

HYDRAULIC SYSTEM FOR ABS BOSCH -VALID FOR ABS BOSCH AND 355 F1 CARS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 170638 *Qty: 1 HYDRAULIC ELECTRONIC CONTROL STATION $4,088.17
Location: 2 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 3 Prev | Next Part: 12638524 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 169034 *Qty: 1 BRACKET FOR CONTROL UNIT FIXING $51.00
Location: 5 Prev | Next Part: 16043224 *Qty: 3 SCREW $0.90
Location: 6 Prev | Next Part: 127496 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 12638524 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 172979 *Qty: 1 BRAKING REGULATOR $151.93
Location: 9 Prev | Next Part: 103549 *Qty: 1 CABLE GROMMET $1.57
Location: 10 Prev | Next Part: 103550 *Qty: 1 SPACER $2.47
Location: 11 Prev | Next Part: 12643724 *Qty: 3 WASHER $0.90
Location: 12 Prev | Next Part: 10903821 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: 102948 *Qty: 1 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
