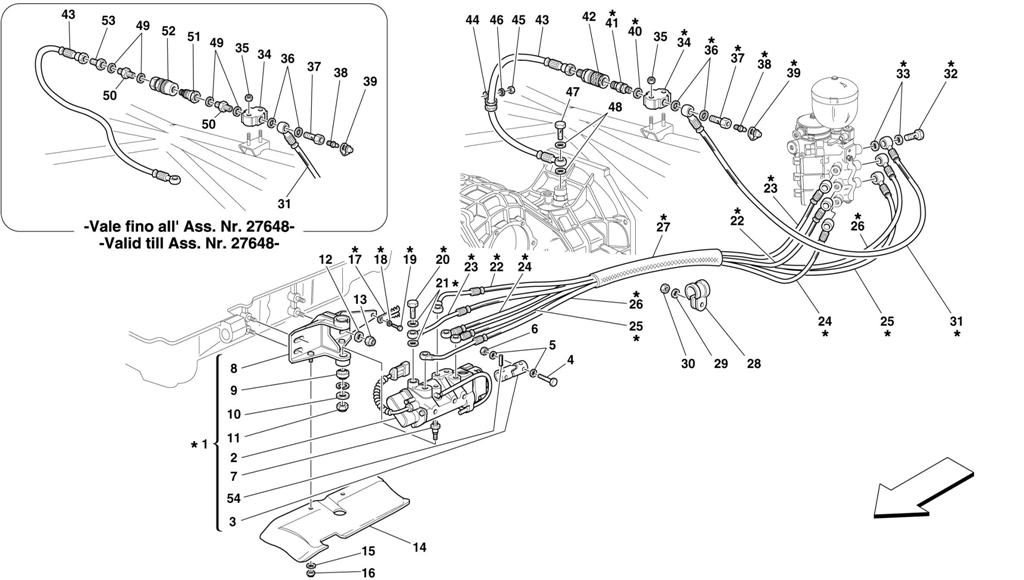

F1 CLUTCH HYDRAULIC CONTROL -VALID FOR 355 F1 CARS-

Go to Split View

F1 CLUTCH HYDRAULIC CONTROL -VALID FOR 355 F1 CARS-

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 175834 *Qty: 1 F1 GEARBOX SYSTEM COMPONENTS KIT (See also TAB. 28) $14,676.41
Location: 1 Prev | Next Part: 177687 *Qty: 1 COMPLETE HYDRAULIC ACTUATOR $6,850.00
Location: 2 Prev | Next Part: 177687 *Qty: 1 ACTUATOR $6,850.00
Location: 3 Prev | Next Part: 167946 *Qty: 1 COUPLING BALL JOINT Call
Location: 4 Prev | Next Part: 170767 *Qty: 1 SCREW $10.28
Location: 5 Prev | Next Part: 103493 *Qty: 2 WASHER $2.05
Location: 6 Prev | Next Part: 101139 *Qty: 1 NUT $0.90
Location: 7 Prev | Next Part: 169221 *Qty: 2 THREADED PIN Call
Location: 8 Prev | Next Part: 169219 *Qty: 1 ACTUATOR SUPPORT Call
Location: 9 Prev | Next Part: 169222 *Qty: 2 BALL JOINT Call
Location: 10 Prev | Next Part: 126980 *Qty: 2 WASHER $1.17
Location: 11 Prev | Next Part: 101139 *Qty: 2 NUT $0.90
Location: 12 Prev | Next Part: 12646724 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 101139 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 168523 *Qty: 1 SHIELD FOR ACTUATOR PROTECTION $311.83
Location: 15 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 12578011 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 166935 *Qty: 1 CLIP $1.84
Location: 18 Prev | Next Part: 12601074 *Qty: 1 WASHER $0.90
Location: 19 Prev | Next Part: 10444521 *Qty: 1 SCREW $0.90
Location: 20 Prev | Next Part: 111644 *Qty: 5 UNION Call
Location: 21 Prev | Next Part: 10261060 *Qty: 10 GASKET $0.90
Location: 22 Prev | Next Part: 168472 *Qty: 1 PIPE (EV4) $477.56
Location: 23 Prev | Next Part: 168470 *Qty: 1 PIPE (EV3) Call
Location: 24 Prev | Next Part: 168474 *Qty: 1 PIPE (EV5) $367.54
Location: 25 Prev | Next Part: 168468 *Qty: 1 PIPE (EV2) Call
Location: 26 Prev | Next Part: 168466 *Qty: 1 PIPE (EV1) $490.02
Location: 27 Prev | Next Part: 168525 *Qty: 1 PROTECTION SHEATH $80.31
Location: 28 Prev | Next Part: 124034 *Qty: 2 BRACKET WITH SHEATH $3.15
Location: 29 Prev | Next Part: 14496424 *Qty: 2 WASHER Superseded
Location: 30 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 31 Prev | Next Part: 175833 *Qty: 1 PIPE FROM PUMP TO BLOCK $478.78
Location: 32 Prev | Next Part: 111644 *Qty: 6 UNION Call
Location: 33 Prev | Next Part: 10261060 *Qty: 12 GASKET $0.90
Location: 34 Prev | Next Part: 175667 *Qty: 1 BLOCK $42.28
Location: 35 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 37 Prev | Next Part: 171630 *Qty: 1 UNION $69.05
Location: 38 Prev | Next Part: 152954 *Qty: 1 BLEEDER SCREW $7.76
Location: 39 Prev | Next Part: 152955 *Qty: 1 PROTECTION BOOT $7.20
Location: 40 Prev | Next Part: 10284460 *Qty: 1 GASKET -Valid from Ass. Nr. 27649 $0.90
Location: 41 Prev | Next Part: 70001184 *Qty: 1 QUICK MALE COUPLING -Valid from Ass. Nr. 27649 Call
Location: 42 Prev | Next Part: 70001184 *Qty: 1 QUICK FEMALE COUPLING -Valid from Ass. Nr. 27649 Call
Location: 43 Prev | Next Part: 174421 *Qty: 1 PIPE FROM BLOCK TO GEARBOX Call
Location: 44 Prev | Next Part: 10441790 *Qty: 1 BRACKET WITH SHEATH $0.94
Location: 45 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 46 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 47 Prev | Next Part: 171454 *Qty: 1 UNION $11.97
Location: 48 Prev | Next Part: 10261060 *Qty: 2 GASKET $0.90
Location: 49 Prev | Next Part: 10284460 *Qty: 4 GASKET -Valid till Ass. Nr. 27648 $0.90
Location: 50 Prev | Next Part: 172447 *Qty: 2 UNION -Valid till Ass. Nr. 27648 $27.92
Location: 51 Prev | Next Part: 171773 *Qty: 1 QUICK MALE COUPLING -Valid till Ass. Nr. 27648 $210.16
Location: 52 Prev | Next Part: 171602 *Qty: 1 QUICK FEMALE COUPLING -Valid till Ass. Nr. 27648 Call
Location: 53 Prev | Next Part: 174317 *Qty: 1 UNION -Valid till Ass. Nr. 27648 $178.11
Location: 54 Prev | Next Part: 14164274 *Qty: 2 PIN $2.28

* Quantity shown indicates the number of pieces used in the diagram.
